10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

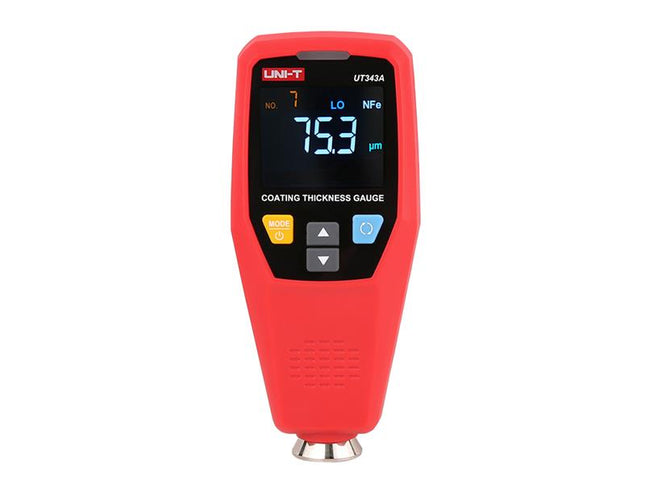

This product comes with a 3-year warranty. The UT343A is a high-precision paint thickness gauge capable of measuring paint thickness on ferrous (ferromagnetic) and non-ferrous (paramagnetic and diamagnetic) metals.
Electrically non-conductive or conductive coatings on ferromagnetic metals, such as steel, can be measured through galvanised or electromagnetic steel (e.g. galvanised or electro-galvanised steel). induction (the instrument setting symbol is Fe), which measures the paint thickness based on the amount of magnetic flux flowing from the sensor through the non-ferromagnetic paint onto the ferromagnetic substrate.
You can measure the thickness of non-conductive paints on non-magnetic metallic materials, such as aluminium or copper, using the Eddy current measurement method (instrument setting symbol NFe). The principle involves measuring the differences in eddy currents generated by the instrument in a non-magnetic metallic substrate.
This device features high-precision, non-destructive paint thickness measurement, single-point and multi-point averaging algorithms, and rapid measurement. Automatic detection of substrate type, wide thickness measurement range from 0 to 1850 μm, automatic conversion of units from μm to mils. Ability to store up to 199 measurement groups in memory. Simple multi-point calibration using the included calibrated samples.
Widely used in metal production and processing, aviation, marine engineering, rail transport, scientific research, quality control and non-destructive testing in the automotive industry and other industries in laboratories, workshops and outdoor areas.
Product parameters:
Paint measurement range from 170 μm thickness
- Measurement accuracy: ± (3% of the measured value + 1 μm)
- resolution: 0.1 μm
- operating modes: automatic substrate detection, Fe, NFe
- Measurement type: single or continuous
- statistical measurement: MAX / MIN /-> automatic setting of screen value average values on screen
-> limits: yes, in the range 0 to 1750 μm, including indication of limit exceedance
- built-in memory: yes, for 199 measurement groups
- Switchable buzzer: yes
Technical parameters:
- measurement frequency:
- 5 seconds ref. sensor for electromagnetic induction and eddy currents
- Paint thickness measurement range: 0 to 1750 μm
- measurement accuracy: ± (3% of the measured value + 1 μm)
- resolution: 0.1 μm
- Probe contact force: 0.3 to 1.5 N
- Data display type: automatic switch-off
- Yes, after 5 minutes of inactivity
- impact resistance: the device withstands a fall from 1 metre
- power supply: 2 x AAA alkaline batteries
- Standby power consumption: ≤ 5 µA
- current consumption in operation: ≤80mA, at warning ± 3 V
-3. 0.2 V, the battery symbol will start flashing
- operating environment: 0 °C to 40 °C, ≤80% relative humidity
- Storage environment: -20 °C to 60 °C, ≤80% relative humidity
- Dimensions: 117 x 53 x 37 mm
weight:
including 11g certification: CE, UKCA

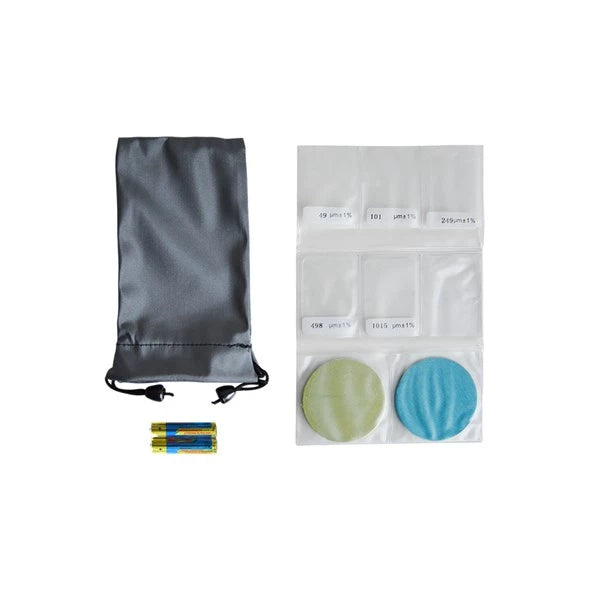

Contents of each pack:
- UT343A device: 1 pc
- Sensor cover: 1 pc
- Standard sheets with calibrated paint thicknesses: 1 set (5 pcs)
- Iron calibration base: 1 pc
- Non-ferrous substrate: 1 pc
- 1 pc. AAA alkaline battery: 2 pcs
- user manual: 1 pc
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

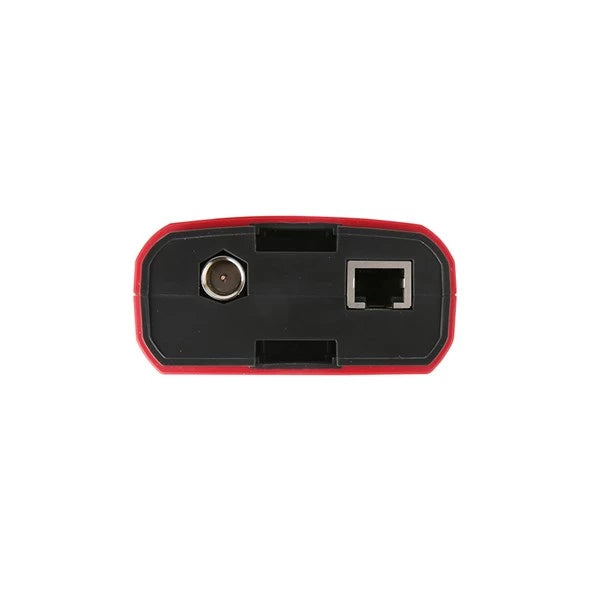

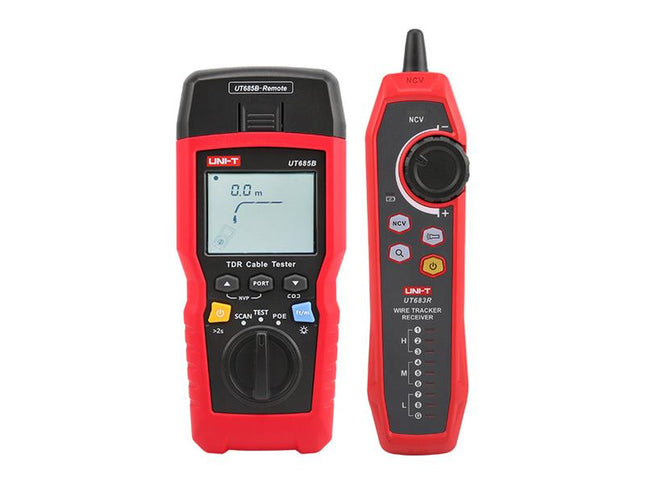

This product comes with a 3-year warranty. The UT683B Cable Tester Kit is a portable TDR cable tester, suitable for copper cables (CAT 5E, CAT 6, CAT 6A or CAT 8), which is used to detect and diagnose the connection status of twisted pair and coaxial cables, network pair services, short cables/detection, cabling, network pairs, cabling and faulty cables, etc. It can also be used to detect whether there is a PoE source (POE mode) in the network cabling and the PoE standard (802.3AF, 802.3AT, 802.3BT). A wiring diagram, cable length, location of the broken circuit and other information can be displayed simultaneously on the screen. The cable tester is characterised by accuracy, ease of use and a clear display, making it an ideal tool for network communications maintenance.
Product parameters:
- testing twisted pair network cabling
- cable length test
- TDR technology
- tests RJ11, RJ11 and RJ45 cable types
poxial
500m
- resolution 0.33 m
- 70V DC input protection
- 2.8-inch backlit LCD display
- graphical interface
Technical parameters:
Type of cable tested:
- Twisted pair cable.
twisted-pair cable.
FTP (aluminium foil-shielded cable);
3. SSTP (double-shielded network cable);
- coaxial cable: 50Ω, 75Ω, 93Ω
Cable length test:
- range: 500 m
- resolution: 0.3%, accuracy
-3 m
POE detection:
- POE power detection
- POE standard: 802.3AF
- POE standard: 802.3AT
- Ethernet port test
- Cable location test √
- 70VDC LCD input protection
- Automatic screen shutdown
-2. approx. 10 minutes
- Operating temperature: 0–45 °C
- Storage temperature: -20–60 °C
- Operating humidity: 20–75% relative humidity
- Storage humidity: 10–90% relative humidity
- Altitude ≤ 2000 mDR x 8 x 8 mm cable tester 39 mm
- Receiver dimensions: 197 mm x 48 mm x 34 mm
- cable tester weight: 360 g
- Receiver weight: 127 g
- Power supply: 4 x AAA alkaline batteries (LR03)
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
This product comes with a 3-year warranty.

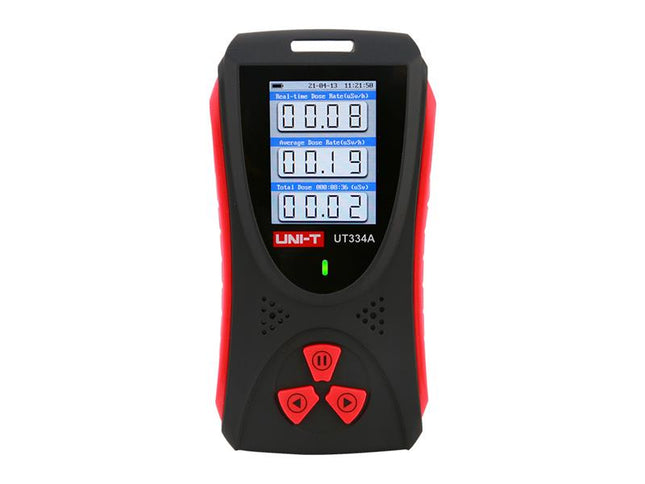

The UT334A Geiger counter is a compact detector used for monitoring beta (β), gamma (γ) and X-rays. The device is highly sensitive and accurate. It is equipped with a high-performance microprocessor and a 2.0-inch TFT colour screen, making it convenient to use. The device is equipped with audible and visual alarms. The alarm threshold values can be set; when these thresholds are reached, the counter triggers an alarm. The main specifications comply with international standards.
The UT334A is suitable for use in radiation processing enterprises, healthcare and epidemic prevention, radiotherapy, nuclear laboratories, nuclear power stations, building materials inspection, petrochemicals, geological exploration, steel scrap production, industrial non-destructive testing and other environments where ionising radiation is present, to monitor radiation dose and protect people.
>
Parameters:
- Portable device
- 2.0” TFT colour display
- Highly sensitive GM detector
- combined beta (β), gamma (γ) and X-ray radiation
- real-time display, average and cumulative dose
- Audible and visual alarms, monitoring with two adjustable alarm modes
Storage
- calibration function
- option to display the time since the start of the current measurement
- measurement recording time (00-999h)
- Over-limit alarm
- saving of the last ten measurement records
- the device can operate the stopwatch even when switched off
- battery charge status display
- warning: (display: ‘Device damaged’)
- if the radiation dose exceeds the threshold set in standby mode, the device will automatically trigger an alarm and enter the measurement interface.
Technical parameters:
- detected radiation: X, β and γ
- sensor: GM tube:
05u:
05u -50mSv
- Accuracy: -17% ~ +25% based on 137Csγ
- Type-C charging interface
- Alarm response time td: <10s
- alarm threshold accuracy: -17% ~ +25%
- Alarm modes: audio and visual: 7 alarms Li-ion: 3. 1800 mAh battery
- Battery life: approx. 20 days (continuous measurement, particle sound off)
- Product colour: red and grey
- net product weight: 127 g
- Product dimensions: 120 x 65 x 25 mm

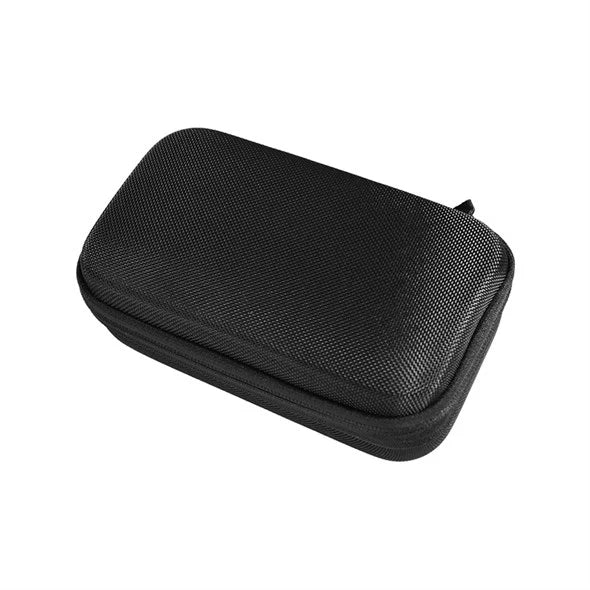

- standard accessories: USB cable, manual, standard carrying case
Box: 10 pcs
- Weight (per box): 3.7 kg
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

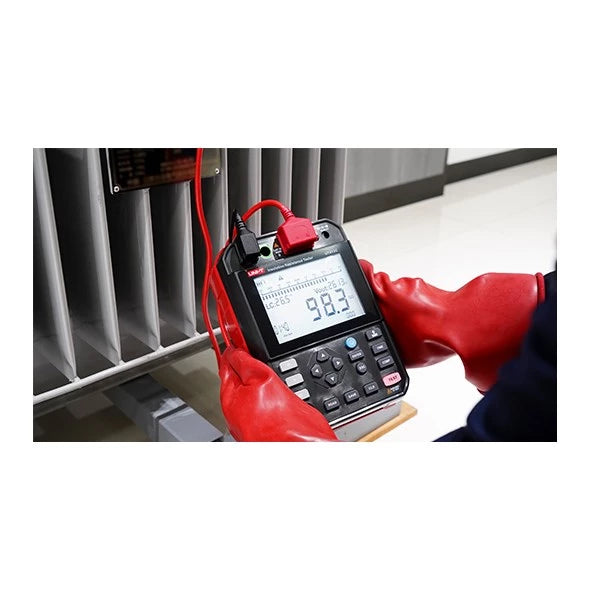

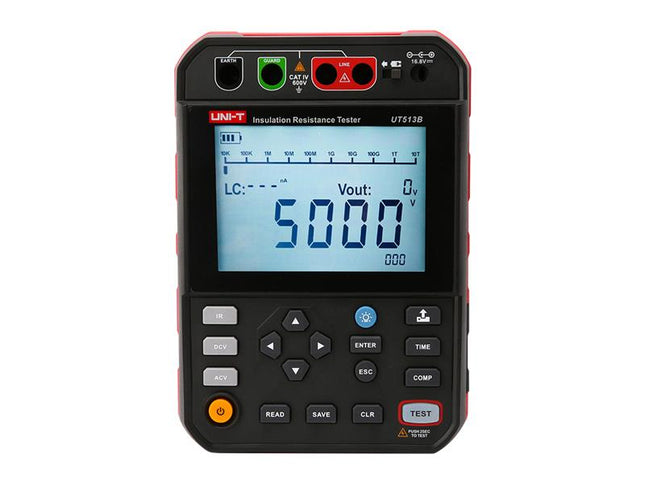

This product comes with a 3-year warranty. The UT513B 5 kV insulation resistance tester is a digital high-voltage insulation resistance tester designed with multiple voltage ranges, including 250 V, 500 V, 1000 V, 2500 V and 5000 V. It is an ideal measuring instrument for departments in the electrical power, telecommunications, meteorology, engine room, oil field, electromechanical installations and maintenance sectors, as well as industrial and mining enterprises.
Product parameters:
- Output voltage range: up to 5kV
- PI/DAR measurement
- Short-circuit current measurement
- Automatic display of leakage current
- Step voltage: 10% of the measurement range
- Range measurement
- timer
- high voltage alarm
- automatic discharge
- high voltage output alarm function
- data storage: 999 sets
- PC software analysis: via USB cable
- rechargeable lithium battery 14.8V, 5200mAh
- overvoltage category: CAT IV/6/00V
Parameters:
- Test voltage: 500V / 1000V / 1500V / 2500V / 5000V
- Capacitance test: NO
- Output voltage (nominal / voltage range:
250V / 250V, 205V, 205V
250V, 300V, 350V, 400V, 450V, 500V, 550V, 600V
1000V / 500V, 600V, 700V, 800V, 900V, 1000V, 1000V, 1000V, 500V, 1100V, 1100V, 1100V / 1250V, 1500V, 1750V, 2000V, 2250V, 2500V, 2750V, 3000V
5000V / 2500V, 3000V, 3500V, 4000V, output voltage
display accuracy: ± (10% of reading + 10V)
Output accuracy: ±(0%~20%)
- DC voltage: 30 ～ ～ ± 5 V DC/- ± 0% voltage: 30 ～ 750 V AC / 50Hz/60Hz ±(3%+5)
- Current: 0.01nA ～ 3.5mA
- Short-circuit current: approx. 3.5mA
- Polarisation index (PI): automatic (polarisation index
): display
- Timing measurement
- resistance comparison
- monitoring function: monitors the voltage of the measured object and the discharge status after testing
- Timing range: 0 s ～ 99 min 59 s
- storage function: 999 sets
- USB for connection to a PC -> NO
-> low battery indication
- Auto power off (approx. 15 minutes)
- Dimensions: 238 x 166 x 90.5 mm (W x H x D)
- Power supply: 14.8V, 5200 mAh lithium battery
- product colour: black + red
- product weight: 1800 g (battery)
Accessories:
- test leads (red, black, green: 1 of each) 3 pcs
- lithium battery charger
- lithium battery (14.8V, 5200mAh)
- USB cable 1 pc
- carrying strap
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

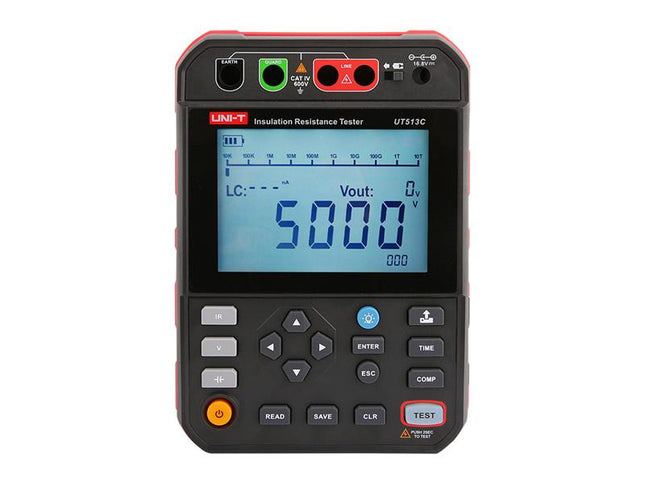

The UT513C 5 kV insulation resistance tester is a digital high-voltage insulation resistance tester designed with multiple voltage ranges, including 250 V, 500 V, 1000 V, 2500 V and 5000 V. It is an ideal measuring instrument for the electricity, telecommunications, meteorology, engine room, oil field, electromechanical installations and maintenance departments of industrial and mining enterprises.
Product parameters:
- Output voltage range: up to 5kV
- PI/DAR measurement
- Short-circuit current measurement
- Automatic display of leakage current
- Step voltage: 10% of the measurement range
->-
-/-
high voltage alarm
- automatic discharge
- high voltage output alarm function
- data storage: 999 sets
- PC software analysis: via USB cable
- rechargeable lithium battery 14.8V, 5200mAh
- Overvoltage category: CAT IV 600V
-
-
-
Test voltage: 500V / 1000V / 1500V / 2500V / 5000V
- Capacitance test: 0.01uF ～ 15.0uF
- output voltage (rated / voltage range:
250V, / 250V, / 270V
500V / 250V, 300V, 350V, 400V, 450V, 500V, 550V, 600V
1000V / 500V, 600V, 700V, 800V, 900V, 1000V, 1000V, 1000V 1200V
2500V / 1250V, 1500V, 1750V, 2000V, 2250V, 2500V, 2750V, 3000V
5000V / 2500V, 3000V, 3000V, 3000V, 3000V, 3000V 2000 V
Stepwise output voltage range (evaluation) Shift 10% of each range at a time and adjust the voltage range to 50%–120% of each range
display accuracy: ± (10% of reading + 10V)
Output accuracy: ±(0%～20%)
Voltage: >-0% / ±(3%+5)
- AC voltage: 30 ～ 750 V AC / 50Hz/60Hz ±(3%+5)
- Current: 0.01 nA ～ 5.0 mA
- Short-circuit current: approx. Dielectric absorption ratio (DAR): automatic display
- Timing measurement
- Resistance comparison
- Monitoring function: monitoring of the measured object’s voltage and discharge status after testing
- Timing range: 0 s ～ 99 m and 59 s
- storage function: 999 sets USB/Bluetooth for connection to PCs:
- Yes
- low battery indicator
- Auto-off (approx. 15 minutes)
- Dimensions: 238 x 166 x 90.5 mm (W x H x D)
- Power supply: 14.8V, 5200 mAh lithium battery
- product colour: black and red
- Product weight
including 180,000 battery)
Accessories:
- test leads (red, black, green: 1 of each) 3 pcs
- Lithium battery charger
- Lithium battery (14.8V, 5200mAh)
- USB cable 1 pc
- carrying strap UNI-1-BUC
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

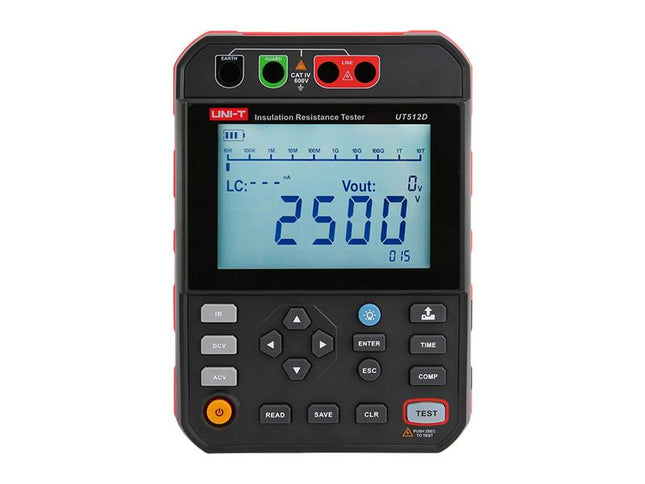

This product comes with a 3-year warranty. The UT512D 2.5 kV insulation resistance tester is a high-voltage digital insulation resistance tester, designed with multiple ranges, including 250 V, 500 V, 1000 V and 2500 V. It is an ideal instrument for the electrical power sector, the telecommunications sector, the oil industry, telecommunications workshops, the meteorological industry, and the electromechanical and power supply installation and maintenance departments in industrial and mining companies.
Product parameters:
- Output voltage range: Up to 2.5 kV
- PI/DAR measurement
- Short-circuit current measurement
- Automatic display of high-voltage leakage current
- 1/0% voltage range
- Alarm
- automatic discharge
- data storage: 999 sets
- PC software analysis: via USB cable
- Overvoltage category: CAT IV 600V
Technical parameters:
- test voltage: 500V / 1000V test capacity: ////12500V test:
NO
- Low resistance test: NO
- Output voltage (rated / voltage range:
250V / 350V, 275V, 300V
500V / 300V, 350V, 400V, 450V, 500V,
1000V / 500V, 600V, 700V, 800V, 900V, 1000V, 1100V, 1200V
2500V / 1250V, 1500V, 1750V, 2000V, output voltage, voltage range (evaluation) Shift 10% of each range each time and adjust the voltage range to 50% ~ 120% of each range
display accuracy: ± (10% of reading + 10V)
output accuracy: ±(0%~20%)
- DC voltage: 30 ～ V+/10 ±(V+10 V) AC voltage: 30 ～ 750 V AC / 50Hz/60Hz ±(3%+5)
- Current: 0.01 nA ～ 3.5 mA
- Short-circuit current: approx. 3.5 mA
- Polarisation index (PI): automatic (polarisation index)
p. display
- Timing measurement
- resistance comparison
- Monitoring function: monitors the voltage of the measured object and the discharge status after testing
- Timing range: 0 s ～ 99 m and 59 s
- storage function: 999 sets
- USB for automatic connection to a computer
-/low battery indicator
-/> power off
- Dimensions: 238 x 166 x 90.5 mm (W x H x D)
- Power supply: 8 x 1.5V alkaline batteries (LR14)
- product colour: black + red
- product weight: 1800 g (including batteries)
, test leads:
-, black, black for each) 3 pcs
- USB cable 1 pc
- carrying strap 1 pc
Manufacturer: UNI-TREND
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

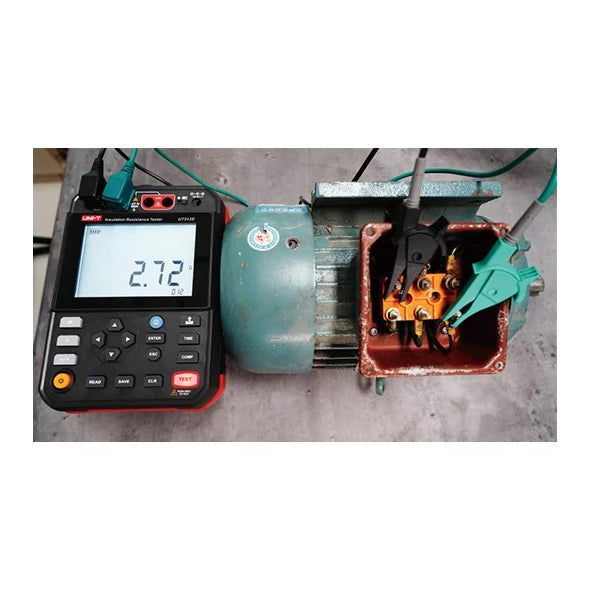

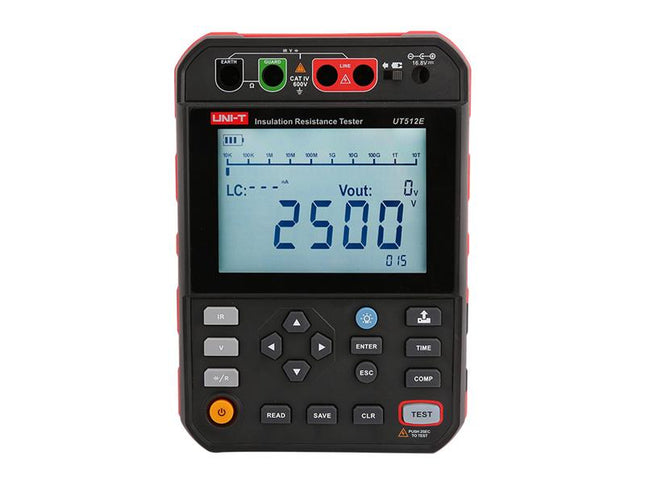

This product comes with a 3-year warranty. The UT512E 2.5 kV insulation resistance tester is a high-voltage digital insulation resistance tester, designed with multiple voltage ranges, including 250 V, 500 V, 1000 V and 2500 V. It is an ideal measuring instrument for the electrical power, telecommunications, meteorology, machine shop, oilfield, electromechanical installations, and maintenance and power supply departments of industrial and mining enterprises. leakage current
- Step voltage: 10% of the range
- high voltage alarm
- automatic discharge
- Data storage: 999 sets
- PC software analysis: via USB cable
- Overvoltage category: CAT IV 600V
Technical/test parameters: //>-0 1000V / 1500V / 2500V
- capacitance test: 0.01uF ～ 2.0uF / ±（15%+3）
- Low resistance test: 0.1Ω ～ 600Ω / ±（2%–+10% of voltage）/rated voltage
250V / 350V, 275V, 300V
500V / 300V, 350V, 400V, 450V, 500V, 550V, 600V
1000V / 500V, 800V, 800V, 800V, 900V, 1000V, 1100V, 1200V
2500V / 1250V, 1500V, 1750V, 2000V, 2250V, 2500V
Output voltage step voltage range (rating) Set the voltage range to 0% each time and adjust each voltage range from 0% to 50%–120% of that range
display accuracy: ± (10% of reading + 10V)
Output accuracy: ±(0%–20%)
- DC voltage: 30 ～ 1000 V DC / ±(3%+5)
- AC voltage: 70 ～: 50Hz/60Hz ±(3%+5)
- Current: 0.01nA ～ 5mA
- Short-circuit current: approx. 5mA
- Polarisation index (PI): automatic display
- Dielectric absorption ratio (DAR) monitoring: automatic measurement
/>
- Resistance comparison function: monitors the voltage of the measured object and the discharge status after testing
- Timing range: 0 s ～ 99 m and 59 s
- Storage function: 999 sets
- USB for connection to a PC
- low battery indicator
- Auto power off
- Dimensions: 163 x 9 mm (L x W x D)
- power supply: 14.8V, 5200 mAh lithium battery
- Product colour: black and red
- product weight: 1800 g (including battery)
Accessories:
- Test cable (red, black, green): 1 lithium battery
- 1 charging unit
(Output: 16.8 V DC, 2 A)
- Lithium battery (14.8 V, 5200 mAh)
- 1 USB cable
- Carrying strap 1 pc
Manufacturer: UNI-TREND
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
This product comes with a 3-year warranty.

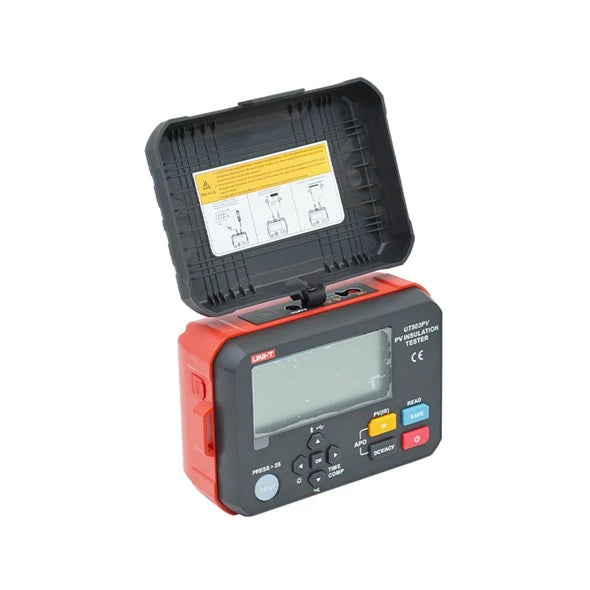

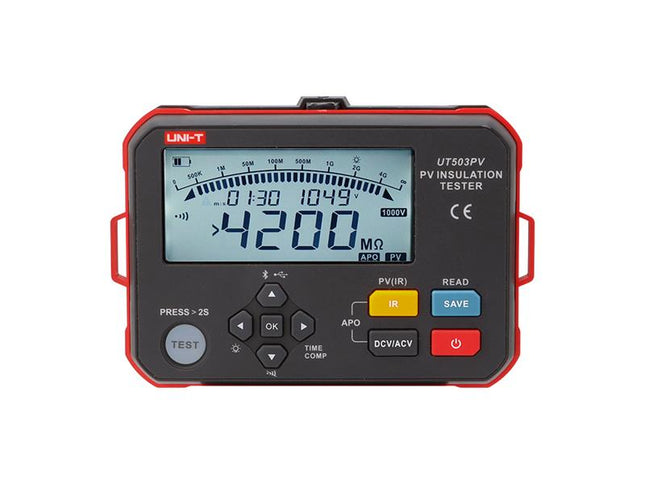

The UT503PV digital insulation resistance tester can be used to measure insulation resistance with a photovoltaic power supply (maximum: 1000V DC) and conventional insulation resistance (without power supply), and to automatically identify AC/DC voltage. It has several functions, including: measuring photovoltaic insulation resistance without a solar panel during a power cut/short circuit or at night, voltage grading, Bluetooth transmission, automatic discharge, high-voltage warning, remote-controlled test lead operation, etc. Parameters:
- High output voltage: DC 1000 V
- UTD test under voltage: DC 1000 V
- Insulation resistance (PV+IR): 4000 MΩ
- Voltage measurement: 1000 V DC & 600 V AC
- Automatic overload stage measurement
- Time
- Comparison function (IR)
- high voltage alarm
- Data communication: USB cable + Bluetooth app
- lithium battery
- analogue bar graph
- high-quality backlit display
- portable and convenient
- certification: CE, cETLus
: technical parameter/photovoltaic
resistance (PV)
- Conventional insulation resistance measurement
- AC/DC voltage testing (VDC/VAC)
- Insulation resistance range: 0.125 MΩ – 4000 MΩ
- rated voltage for conventional output (conventional insulation resistance: 4 positions, 50 V, 120 V, 120 V, 120 V) V
- rated voltage for photovoltaic power (photovoltaic insulation resistance: 2 positions): 500 V, 1000 V
- short-circuit current: <1.5 mA
- step in each range: 10% of the rated voltage
- specifications for conventional insulation resistance and photovoltaic (PV) insulation resistance measurement (PV:/>
see data sheet
) comparative insulation resistance measurement (COMP)
- timed insulation resistance measurement (TIME)
- external voltage detection function, which allows automatic monitoring of the voltage of the object under test
- designed with a timer to automatically record the test time
- automatic discharge and high-voltage warning for analogue resistance warning
Results
- Manual/automatic shutdown
- Capable of storing 1,000 data sets
- data save/delete function
- Data logging function
- Bluetooth app
- manual / automatic backlight
- mute function
- high-resolution segmented LCD display
- battery: high-capacity
a6: 161 x 117.3 x 63 mm
- Weight: 0.5 kg
Accessories:
- test leads
- test probes with torch:
- alligator clips:
- MC4 connectors: 1 pair
- battery transport cable
-
Type C battery transport cable
AA: 6 pcs
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
This product comes with a 3-year warranty.

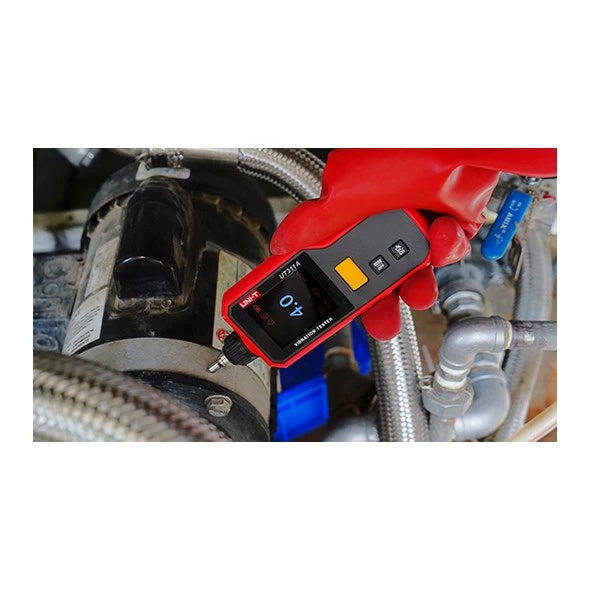

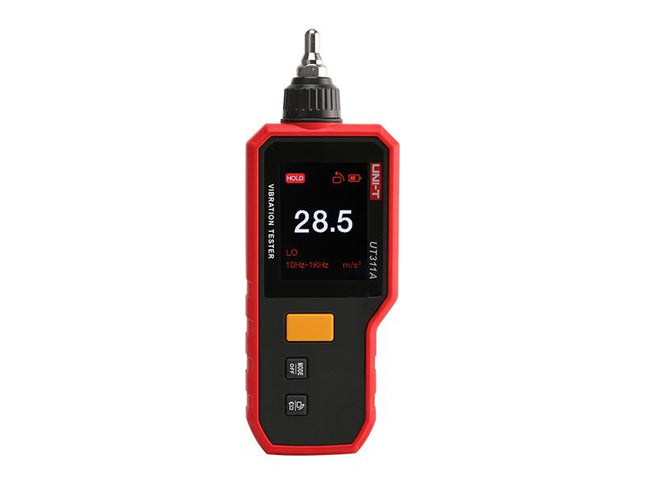

The UNI-T UT311A is a portable vibration tester, equipped with an acceleration sensor and a digital display circuit, designed to measure the acceleration, velocity and displacement of vibrations in mechanical equipment. The device stands out for its wide measurement range, simple operation and high portability.
It is widely used in inspection and maintenance activities in sectors such as the mechanical, energy, chemical, metallurgical and aeronautical industries, as well as in many other industrial applications. It is an ideal tool for the technical inspection and maintenance of rotating equipment: fans, pumps, compressors, motors, etc.
Key features
Measurement of acceleration, velocity and displacement of vibrations
Low and high frequency acceleration modes
High-sensitivity sensor
Compatible with multiple probes (long and short)
Built-in torch, useful for measurements in low-light environments
2.4” colour TFT screen for clear display of readings
Auto-rotating screen for ease of use
Data Hold function (freezing of displayed values)
Rechargeable lithium battery power supply
Certifications: CE, UKCA
Technical specifications
Acceleration (PEAK)
Range: 0.1 ~ 199.9 m/s²
Frequency response: 10 Hz ~ 1 kHz / 10 Hz ~ 15 kHz
Resolution: 0.1 m/s²
Accuracy: ±(5% + 2 digits)
Vibration velocity (RMS)
Range: 0.1 ~ 199.9 mm/s
Frequency response: 10 Hz ~ 1.5 kHz
Resolution: 0.1 mm/s
Accuracy: ±(5% + 2 digits)
Vibration displacement (P-P)
Range: 0.001 ~ 199.9 mm
Frequency response: 10 Hz ~ 1 kHz
Resolution: 0.001 mm
Accuracy: ±(5% + 2 digits)
Additional functions
Low/high frequency acceleration mode
Data Hold function
Built-in LED torch
Automatic shut-off after 5 minutes of inactivity
Low battery indicator
Power supply and battery life
Battery type: Lithium 3.7V / 1350 mAh
Charging: USB, DC 5V
Charging time: approx. 3 hours
Battery life: approx. 12 hours
Operating conditions
Operating temperature: 0°C ~ 40°C
Humidity: ≤ 80% RH
Dimensions and weight
Dimensions: 180 × 28 × 64 mm
Weight: approx. 191 g (with short probe)
Included accessories
Short probe
Long probe
USB charging cable
User manual
