Deye on-grid inverters

The SUN‑XL02‑B is a smart photovoltaic optimiser designed to improve the performance and efficiency of photovoltaic systems. This advanced device optimises each individual photovoltaic module and enables real-time monitoring of their operation, allowing for the prompt detection of issues and rapid troubleshooting.To enable communication with the inverter and the Deye Cloud platform, additional equipment is required: the SUN‑XL20‑B concentrator. This collects data from the optimisers and transmits it to the inverter and the cloud. Technical Specifications Maximum input/output power (DC): 700W Maximum input/output current (DC): 15A Maximum conversion efficiency: 99.5% MPPT voltage range: 12–80V Maximum input/output voltage (DC): 80V Operating temperature: –40℃ to +85℃ Protection rating: IP68 – excellent dust and water resistance Dimensions: 105×105×22 mm Weight: 660g Connector: MC4 or compatible Cables: 4.0mm² – 70cm input / 100cm output (customisable) Advantages Enhanced energy efficiency: Module-level MPPT technology maximises the output of each panel. Individual monitoring: Allows real-time monitoring of each module (using the SUN‑XL20‑B concentrator). High durability: Robust housing, IP68 protection – ideal for harsh environments. Simple installation: Compatible with MC4 connectors, pre-configured cables, compact design. Installation Installation: Connects directly to the photovoltaic panel using MC4 connectors. Mount behind the panel or in a protected but ventilated area. Efficiency: MPPT technology on each module allows for a 5–25% increase in energy production depending on conditions. Communication: The SUN‑XL02‑B uses PLC communication (via the photovoltaic cables). ⚠️ The SUN‑XL20‑B concentrator is required for this communication to be transmitted to the inverter and Deye Cloud . Without this additional device, the data remains only locally and cannot be monitored on the platform or in the inverter. ✅ Maximum input/output power (DC): 700W ✅ Maximum input/output current (DC): 15A ✅ Maximum conversion efficiency: 99.5% ✅ MPPT voltage range: 12–80V ✅ Maximum input/output voltage (DC): 80V ✅ Operating temperature range: -40℃ to +85℃ ✅ Ingress protection (IP): IP68 ✅ Connector: MC4 or MC4-compatible Download the technical data sheet

Read more less

The SUN‑XL02‑A is a photovoltaic optimiser designed to improve the performance and efficiency of photovoltaic systems. This model optimises energy production at the module level, ensuring efficient operation even in conditions of partial shading or differences in panel orientation.⚠️ Important: The SUN‑XL02‑A does not offer communication functions and does not allow monitoring via the inverter or the Deye Cloud platform. The SUN‑XL02‑B model is required for these functions . Technical specifications Maximum input/output power (DC): 700W Maximum input/output current (DC): 15A Maximum conversion efficiency: 99.5% MPPT voltage range: 12–80V Maximum input/output voltage (DC): 80V Operating temperature: -40℃ to +85℃ Protection rating: IP68 – water and dust resistant Dimensions: 105×105×20 mm Weight: 500g Connector: MC4 or compatible Cables: 4.0mm² – 70 cm input / 100 cm output (customisable) Advantages Enhanced energy efficiency: optimises energy production at module level, with a potential gain of 5% to 25% under shading or different orientation conditions. High reliability: robust construction with IP68 protection, ideal for harsh weather conditions. Wide compatibility: easy to integrate into existing photovoltaic systems, thanks to MC4 connectors and compact dimensions. How to use Installation: Connects to the photovoltaic panel via MC4 connectors. Mount directly behind the panel or in a protected but ventilated area. Performance: Module-level MPPT technology maximises the energy yield of each individual panel. Communication ⚠️ Please note: This model, SUN‑XL02‑A, does not support communication with Deye inverters and does not offer monitoring via the Deye Cloud platform.If you want real-time monitoring and smart communication, we recommend the SUN‑XL02‑B model, which is equipped with these features. ✅ Maximum input/output power (DC): 700W ✅ Maximum input/output current (DC): 15A ✅ Maximum conversion efficiency: 99.5% ✅ MPPT voltage range: 12–80V ✅ Maximum input/output voltage (DC): 80V ✅ Operating temperature range: -40℃ to +85℃ ✅ Ingress protection (IP): IP68 ✅ Connector: MC4 or MC4-compatible Download the technical data sheet Download manual

Read more less

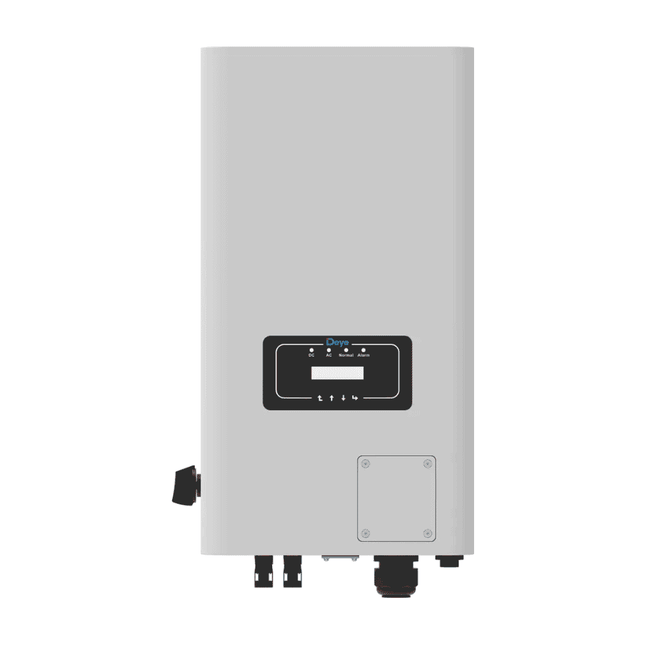

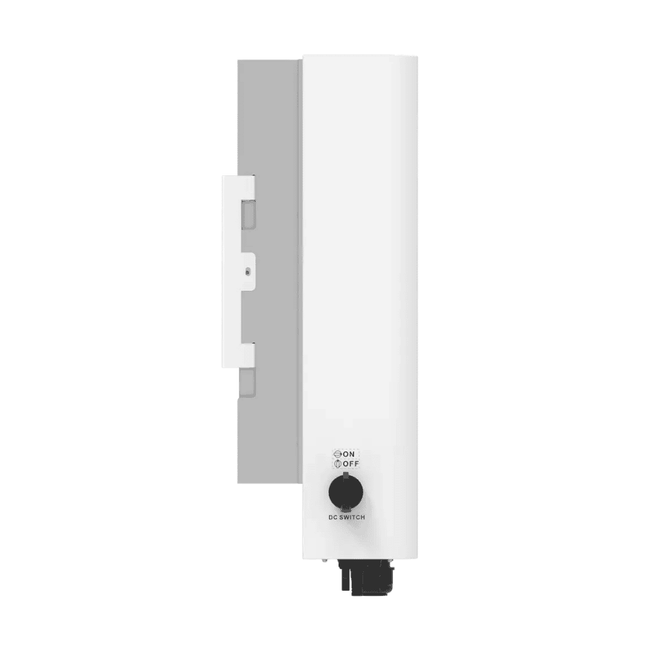

Download DatasheetDownload User ManualDownload Declaration of Conformity The DEYE SUN-10K-G06P3-EU-BM2-P1 is designed for three-phase photovoltaic systems connected to the utility grid. It delivers a rated active power of 10kW and supports up to 15kW of connected photovoltaic power. Its two MPPT trackers independently manage two panel strings, facilitating installations in which the panels have different orientations or irradiation conditions. Each MPPT supports a maximum operating current of 20A. The inverter achieves a maximum efficiency of 98.3% and includes protection functions for both the DC and AC circuits. Its IP65-rated enclosure and natural convection cooling allow installation under various conditions, subject to the manufacturer’s requirements. Key Features Three-phase on-grid operation 10kW rated output power 15kW maximum PV input power Two MPPT trackers One string per MPPT Zero Export function and VSG application Smart string monitoring – optional Anti-PID function – optional AFCI protection – optional RS485 and RS232 communication GPRS, Wi-Fi, Bluetooth, 4G or LAN monitoring – optional IP65-rated enclosure Natural convection cooling Benefits Flexible Panel Configuration The two MPPT trackers independently manage two groups of photovoltaic panels. PV Input Power of up to 15kW The ability to oversize the photovoltaic array in a controlled manner provides greater design flexibility. High Efficiency The maximum efficiency of 98.3% and MPPT efficiency of over 99% help minimise conversion losses. Integrated Protection Functions The inverter includes protection against reverse polarity, overcurrent, overvoltage, short circuits, excessive temperature, residual current and unintended island operation. Recommended Applications Residential three-phase photovoltaic systems Commercial premises and offices On-grid photovoltaic installations Systems with panels installed in two different orientations Applications requiring the limitation of energy exported to the grid General Information Manufacturer DEYE Model SUN-10K-G06P3-EU-BM2-P1 V-TAC SKU 12663 Inverter Type On-grid, three-phase Photovoltaic Input Maximum PV Input Power 15kW Maximum PV Input Voltage 1100V Start-Up Voltage 140V MPPT Voltage Range 120–1000V Rated PV Input Voltage 600V Maximum PV Operating Current 20A + 20A Maximum PV Short-Circuit Current 30A + 30A MPPT Trackers / Strings per MPPT 2 / 1 + 1 AC Output Rated Active Power 10kW Maximum Apparent Power 11kVA Rated Output Current at 380/400V 15.2A / 14.5A Maximum Output Current at 380/400V 16.7A / 16A Rated Voltage / Range 220/380V, 230/400V; 0.85Un–1.1Un Grid Connection 3L/N/PE Rated Frequency / Range 50Hz / 45–55Hz; 60Hz / 55–65Hz Power Factor Adjustment Range 0.8 leading to 0.8 lagging Total Harmonic Distortion (THDi) <3% DC Injection Current <0.5% In Efficiency Maximum Efficiency 98.3% European Efficiency 97.8% MPPT Efficiency >99% Protection Integrated Protection Functions DC reverse-polarity protection, AC overcurrent protection, AC overvoltage protection, AC short-circuit protection, thermal protection, insulation impedance monitoring and DC component monitoring Anti-Islanding Protection Yes Residual Current Detection Yes DC Switch Yes Surge Protection Type II DC / Type II AC AFCI Protection Optional Communication and Monitoring Communication Interfaces RS485 / RS232 Optional Monitoring GPRS / Wi-Fi / Bluetooth / 4G / LAN General Characteristics Operating Temperature -25°C to +60°C, with power derating above 45°C Permissible Ambient Humidity 0–100% Maximum Permissible Altitude 4000m Noise Level <45dB Ingress Protection Rating IP65 Topology Transformerless Overvoltage Category OVC II DC / OVC III AC Dimensions 283 × 525 × 178mm, excluding connectors and mounting brackets Net Weight 11.5kg Cooling Method Natural convection cooling Warranty 5 years Standards Grid Connection Regulations IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105 Safety and EMC Standards IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2   Compatibility and Important Information This is an on-grid inverter. It does not have a battery connection or a dedicated backup output for supplying electrical loads during a grid outage. Using the Zero Export function requires the appropriate configuration and compatible metering equipment specified by the manufacturer. Accessories for monitoring via GPRS, Wi-Fi, Bluetooth, 4G or LAN are optional and must be checked separately. The PV strings must be sized according to the panels’ Voc, Vmp, Isc and Imp values, the temperatures at the installation site and the electrical limits of each MPPT tracker. Installation, configuration and commissioning must be carried out by qualified personnel in accordance with the manufacturer’s instructions and all applicable regulations.

Read more less

Download DatasheetDownload User ManualDownload Declaration of Conformity The DEYE SUN-8K-G06P3-EU-BM2-P1 is designed for three-phase photovoltaic systems connected to the utility grid. It delivers a rated active power of 8kW and supports up to 12kW of connected photovoltaic power. Its two MPPT trackers independently manage two panel strings, facilitating the design of installations with different panel orientations or irradiation conditions. Each MPPT supports a maximum operating current of 20A. The inverter’s maximum efficiency of 98.2%, IP65-rated enclosure and natural convection cooling contribute to efficient and quiet operation. The model supports the Zero Export function and several optional monitoring solutions available through compatible accessories. Key Features Three-phase on-grid operation 8kW rated output power 12kW maximum PV input power Two MPPT trackers One string per MPPT Zero Export function and VSG application Smart string monitoring – optional Anti-PID function – optional AFCI protection – optional IP65-rated enclosure Natural convection cooling Benefits Two Independent MPPT Trackers The two MPPT trackers independently manage two groups of photovoltaic panels, including panels installed in different orientations. PV Input Power of up to 12kW The ability to oversize the photovoltaic array in a controlled manner provides flexibility when designing the installation. High Efficiency The maximum efficiency of 98.2% and MPPT efficiency of over 99% help minimise conversion losses. DC and AC Circuit Protection The inverter includes protection against reverse polarity, overcurrent, overvoltage, short circuits, excessive temperature and unintended island operation. Recommended Applications Residential three-phase photovoltaic systems Commercial premises and offices On-grid photovoltaic installations Systems with panels installed in two different orientations Applications requiring the limitation of energy exported to the grid General Information Manufacturer DEYE Model SUN-8K-G06P3-EU-BM2-P1 Inverter Type On-grid, three-phase Photovoltaic Input Maximum PV Input Power 12kW Maximum PV Input Voltage 1100V Start-Up Voltage 140V MPPT Voltage Range 120–1000V Rated PV Input Voltage 600V Maximum PV Operating Current 20A + 20A Maximum PV Short-Circuit Current 30A + 30A MPPT Trackers / Strings per MPPT 2 / 1 + 1 AC Output Rated Active Power 8kW Maximum Apparent Power 8.8kVA Rated Output Current at 380/400V 12.2A / 11.6A Maximum Output Current at 380/400V 13.4A / 12.8A Rated Voltage / Range 220/380V, 230/400V; 0.85Un–1.1Un Grid Connection 3L/N/PE Rated Frequency / Range 50Hz / 45–55Hz; 60Hz / 55–65Hz Power Factor Adjustment Range 0.8 leading to 0.8 lagging Total Harmonic Distortion (THDi) <3% DC Injection Current <0.5% In Efficiency Maximum Efficiency 98.2% European Efficiency 97.6% MPPT Efficiency >99% Protection Integrated Protection Functions DC reverse-polarity protection, AC overcurrent protection, AC overvoltage protection, AC short-circuit protection, thermal protection, insulation impedance monitoring and DC component monitoring Anti-Islanding Protection Yes Residual Current Detection Yes DC Switch Yes Surge Protection Type II DC / Type II AC AFCI Protection Optional Communication and Monitoring Communication Interfaces RS485 / RS232 Optional Monitoring GPRS / Wi-Fi / Bluetooth / 4G / LAN General Characteristics Operating Temperature -25°C to +60°C, with power derating above 45°C Permissible Ambient Humidity 0–100% Maximum Permissible Altitude 4000m Noise Level <45dB Ingress Protection Rating IP65 Topology Transformerless Overvoltage Category OVC II DC / OVC III AC Dimensions 283 × 525 × 178mm, excluding connectors and mounting brackets Weight 11.5kg Cooling Method Natural convection cooling Warranty Stated in the Datasheet 5 years Standards Grid Connection Regulations IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105 Safety and EMC Standards IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2   Compatibility and Important Information This is an on-grid inverter. It does not have a battery connection or a dedicated backup output for supplying electrical loads during a grid outage. Using the Zero Export function requires the appropriate configuration and compatible metering equipment specified by the manufacturer. Accessories for monitoring via GPRS, Wi-Fi, Bluetooth, 4G or LAN are optional and must be checked separately. The PV strings must be sized according to the panels’ Voc, Vmp, Isc and Imp values, the temperatures at the installation site and the electrical limits of each MPPT tracker. Installation, configuration and commissioning must be carried out by qualified personnel in accordance with the manufacturer’s instructions and all applicable regulations.

Read more less

Download DatasheetDownload User ManualDownload Declaration of Conformity The DEYE SUN-7K-G06P3-EU-BM2-P1 is designed for three-phase photovoltaic systems connected to the utility grid. It delivers a rated active power of 7kW and supports up to 10.5kW of connected photovoltaic power. Its two MPPT trackers allow two strings to be managed independently, making the inverter suitable for installations where the panels have different orientations or irradiation conditions. Each MPPT supports a maximum operating current of 20A. The inverter achieves a maximum efficiency of 98.2%, features an IP65-rated enclosure and uses natural convection cooling. The Zero Export function can be configured using compatible metering equipment specified by the manufacturer. Key Features Three-phase on-grid operation 7kW rated output power 10.5kW maximum PV input power Two MPPT trackers One string per MPPT Zero Export function and VSG application Smart string monitoring – optional Anti-PID function – optional AFCI protection – optional IP65-rated enclosure Natural convection cooling Benefits Independent Management of Two Strings The two MPPT trackers allow the production of two photovoltaic panel groups to be optimised independently. PV Input Power of up to 10.5kW The ability to oversize the photovoltaic array in a controlled manner provides greater flexibility when designing the system. High Efficiency The maximum efficiency of 98.2% and MPPT efficiency of over 99% help reduce conversion losses. Integrated Protection Functions The inverter includes protection functions for both its DC and AC circuits, as well as anti-islanding protection and residual current detection. Recommended Applications Residential three-phase photovoltaic systems Commercial premises and offices On-grid photovoltaic installations Systems with panels installed in two different orientations Applications requiring the limitation of energy exported to the grid General Information Manufacturer DEYE Model SUN-7K-G06P3-EU-BM2-P1 Inverter Type On-grid, three-phase Photovoltaic Input Maximum PV Input Power 10.5kW Maximum PV Input Voltage 1100V Start-Up Voltage 140V MPPT Voltage Range 120–1000V Rated PV Input Voltage 600V Maximum PV Operating Current 20A + 20A Maximum PV Short-Circuit Current 30A + 30A MPPT Trackers / Strings per MPPT 2 / 1 + 1 AC Output Rated Active Power 7kW Maximum Apparent Power 7.7kVA Rated Output Current at 380/400V 10.7A / 10.2A Maximum Output Current at 380/400V 11.7A / 11.2A Rated Voltage / Range 220/380V, 230/400V; 0.85Un–1.1Un Grid Connection 3L/N/PE Rated Frequency / Range 50Hz / 45–55Hz; 60Hz / 55–65Hz Power Factor Adjustment Range 0.8 leading to 0.8 lagging Total Harmonic Distortion (THDi) <3% DC Injection Current <0.5% In Efficiency Maximum Efficiency 98.2% European Efficiency 97.6% MPPT Efficiency >99% Protection Integrated Protection Functions DC reverse-polarity protection, AC overcurrent protection, AC overvoltage protection, AC short-circuit protection, thermal protection, insulation impedance monitoring and DC component monitoring Anti-Islanding Protection Yes Residual Current Detection Yes DC Switch Yes Surge Protection Type II DC / Type II AC AFCI Protection Optional Communication and Monitoring Communication Interfaces RS485 / RS232 Optional Monitoring GPRS / Wi-Fi / Bluetooth / 4G / LAN General Characteristics Operating Temperature -25°C to +60°C, with power derating above 45°C Permissible Ambient Humidity 0–100% Maximum Permissible Altitude 4000m Noise Level <45dB Ingress Protection Rating IP65 Topology Transformerless Overvoltage Category OVC II DC / OVC III AC Dimensions 283 × 525 × 178mm, excluding connectors and mounting brackets Weight 11.5kg Cooling Method Natural convection cooling Warranty Stated in the Datasheet 5 years Standards Grid Connection Regulations IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105 Safety and EMC Standards IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2   Compatibility and Important Information This is an on-grid inverter. It does not have a battery connection or a dedicated backup output for supplying electrical loads during a grid outage. Using the Zero Export function requires the appropriate configuration and compatible metering equipment specified by the manufacturer. Accessories for monitoring via GPRS, Wi-Fi, Bluetooth, 4G or LAN are optional and must be checked separately. The PV strings must be sized according to the panels’ Voc, Vmp, Isc and Imp values, the temperatures at the installation site and the electrical limits of each MPPT tracker. Installation, configuration and commissioning must be carried out by qualified personnel in accordance with the manufacturer’s instructions and all applicable regulations.

Read more less

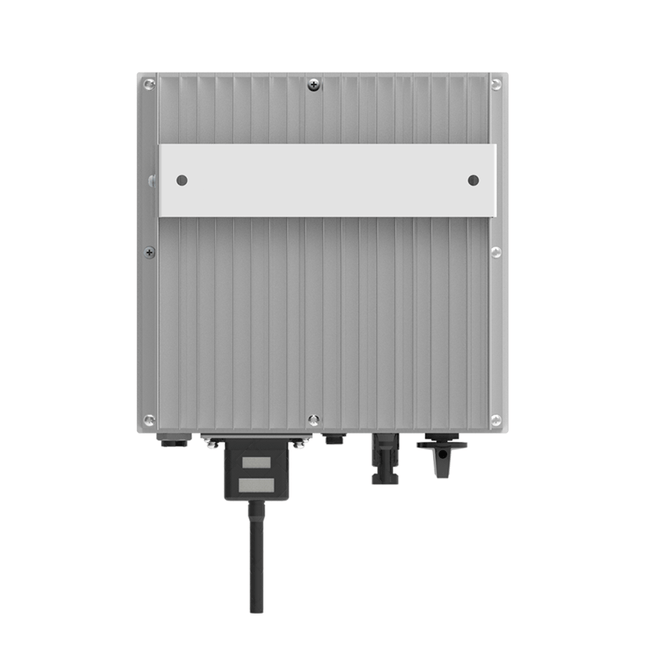

Download DatasheetDownload User ManualDownload Declaration of Conformity The DEYE SUN-3.6K-G04P1-EU-AM1 is a single-phase on-grid inverter designed for residential photovoltaic systems connected to the utility grid. It converts the energy generated by the solar panels into alternating current synchronised with the electrical grid. The inverter delivers a rated active power of 3.6kW and supports up to 4.7kW of connected photovoltaic power. Its 80V start-up voltage and 70–500V MPPT operating range allow it to be used with various photovoltaic configurations, provided that the inverter’s electrical limits are observed. A maximum efficiency of 97.5% and MPPT efficiency of over 99% help maximise the available energy. Natural convection cooling and a maximum noise level of 35dB make the inverter suitable for installation near frequently occupied areas. Key Features On-grid operation without battery connectivity 3.6kW rated output power 3.96kVA maximum apparent power One MPPT tracker and one string input 550V maximum PV input voltage 80V start-up voltage Smart string monitoring – optional Zero Export function Anti-PID function – optional AFCI protection – optional LCD1602 display Natural convection cooling IP65-rated enclosure Benefits Suitable Output for Residential Applications The 3.6kW rated output allows the inverter to be integrated into single-phase photovoltaic systems designed for homes and small commercial premises. PV Oversizing Capability The inverter supports up to 4.7kW of connected photovoltaic power, providing greater flexibility when designing the PV array. Quiet Operation The natural convection cooling system eliminates the need for a fan, while the noise level does not exceed 35dB. Protection and Monitoring The inverter integrates electrical protection functions for both its DC and AC circuits and provides several interfaces for system monitoring. Recommended Applications Residential on-grid photovoltaic systems Single-phase electrical installations Homes with moderate energy consumption Offices and small commercial premises Systems requiring the limitation of energy exported to the grid General Information Manufacturer DEYE Model SUN-3.6K-G04P1-EU-AM1 Inverter Type On-grid, single-phase Photovoltaic Input Maximum PV Input Power 4.7kW Maximum PV Input Voltage 550V Start-Up Voltage 80V MPPT Voltage Range 70–500V Rated PV Input Voltage 360V Maximum PV Operating Current 20A Maximum PV Short-Circuit Current 30A MPPT Trackers / Strings 1 / 1 AC Output Rated Active Power 3.6kW Maximum Apparent Power 3.96kVA Rated Output Current at 220/230V 16.4A / 15.7A Maximum Output Current at 220/230V 18A / 17.3A Rated Output Voltage 220/230V, 0.85Un–1.1Un, L/N/PE Rated Frequency / Range 50Hz / 45–55Hz; 60Hz / 55–65Hz Power Factor Adjustment Range 0.8 leading to 0.8 lagging Total Harmonic Distortion (THDi) <3% DC Injection Current <0.5% In Efficiency Maximum Efficiency 97.5% European Efficiency 97.0% MPPT Efficiency >99% Protection Integrated Protection Functions DC reverse-polarity protection, AC overcurrent protection, AC overvoltage protection, AC short-circuit protection, thermal protection, insulation impedance monitoring and DC component monitoring Anti-Islanding Protection Yes Residual Current Detection Yes DC Switch Yes Surge Protection Type II DC / Type II AC AFCI Protection Optional Interface and Communication Display LCD1602 Communication Interfaces RS485 / RS232 / Wi-Fi / LAN General Characteristics Operating Temperature -25°C to +65°C, with power derating above 45°C Permissible Ambient Humidity 0–100% Maximum Permissible Altitude 3000m Noise Level ≤35dB Ingress Protection Rating IP65 Topology Transformerless Overvoltage Category OVC II DC / OVC III AC Enclosure Dimensions 280 × 272.5 × 171.5mm, excluding connectors and mounting brackets Weight 5.6kg Cooling Method Natural convection cooling Warranty Stated in the Datasheet 5 years Standards Grid Connection Regulations IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, G99, VDE-AR-N 4105 Safety and EMC Standards IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 Compatibility and Important Information This is an on-grid inverter. It does not have a battery input or a dedicated backup output for supplying electrical loads during a grid outage. Using the Zero Export function requires the appropriate configuration and compatible metering equipment specified by the manufacturer. The PV string must be sized according to the panels’ Voc, Vmp, Isc and Imp values, the minimum temperatures at the installation site and the inverter’s electrical limits. Installation, configuration and commissioning must be carried out by qualified personnel in accordance with the manufacturer’s instructions and all applicable regulations.

Read more less

Download DatasheetDownload User ManualDownload Declaration of Conformity The DEYE SUN-2K-G04P1-EU-AM1 is a single-phase on-grid inverter designed to convert the energy generated by photovoltaic panels into alternating current for use in grid-connected electrical installations. The inverter delivers a rated active power of 2kW and supports up to 2.6kW of connected photovoltaic power. Its low 80V start-up voltage and 70–500V MPPT operating range make it suitable for various photovoltaic panel configurations. The inverter features one MPPT tracker with one string input and supports a maximum PV operating current of 20A. Its MPPT efficiency of over 99% helps maximise the available energy under varying solar irradiation conditions. Key Features On-grid operation without battery connectivity 2kW rated output power 2.2kVA maximum apparent power One MPPT tracker and one string input 550V maximum PV input voltage 80V start-up voltage Smart string monitoring – optional Zero Export function Anti-PID function – optional AFCI protection – optional LCD1602 display Natural convection cooling without a fan Maximum noise level of 35dB IP65-rated enclosure Benefits Suitable for Low-Power Photovoltaic Installations The 2kW rated output makes this inverter suitable for single-phase residential systems and applications with low energy consumption. Low Start-Up Voltage The 80V start-up voltage enables the inverter to begin converting energy at a relatively low photovoltaic voltage. Integrated Protection Functions The inverter includes protection against reverse polarity, overcurrent, overvoltage, short circuits, excessive temperature and unintended island operation. Monitoring and Integration RS485, RS232, Wi-Fi and LAN interfaces allow integration with compatible monitoring and control solutions. Recommended Applications Residential on-grid photovoltaic systems Single-phase electrical installations Homes with low or moderate energy consumption Outbuildings, holiday homes and small commercial premises Systems requiring the limitation of energy exported to the grid General Information Manufacturer DEYE Model SUN-2K-G04P1-EU-AM1 Inverter Type On-grid, single-phase Photovoltaic Input Maximum PV Input Power 2.6kW Maximum PV Input Voltage 550V Start-Up Voltage 80V MPPT Voltage Range 70–500V Rated PV Input Voltage 360V Maximum PV Operating Current 20A Maximum PV Short-Circuit Current 30A MPPT Trackers / Strings 1 / 1 AC Output Rated Active Power 2kW Maximum Apparent Power 2.2kVA Rated Output Current at 220/230V 9.1A / 8.7A Maximum Output Current at 220/230V 10A / 9.6A Rated Output Voltage 220/230V, 0.85Un–1.1Un, L/N/PE Rated Frequency / Range 50Hz / 45–55Hz; 60Hz / 55–65Hz Power Factor Adjustment Range 0.8 leading to 0.8 lagging Total Harmonic Distortion (THDi) <3% DC Injection Current <0.5% In Efficiency Maximum Efficiency 97.3% European Efficiency 96.9% MPPT Efficiency >99% Protection Integrated Protection Functions DC reverse-polarity protection, AC overcurrent protection, AC overvoltage protection, AC short-circuit protection, thermal protection, insulation impedance monitoring and DC component monitoring Anti-Islanding Protection Yes Residual Current Detection Yes DC Switch Yes Surge Protection Type II DC / Type II AC AFCI Protection Optional Interface and Communication Display LCD1602 Communication Interfaces RS485 / RS232 / Wi-Fi / LAN General Characteristics Operating Temperature -25°C to +65°C, with power derating above 45°C Permissible Ambient Humidity 0–100% Maximum Permissible Altitude 3000m Noise Level ≤35dB Ingress Protection Rating IP65 Topology Transformerless Overvoltage Category OVC II DC / OVC III AC Enclosure Dimensions 280 × 272.5 × 171.5mm, excluding connectors and mounting brackets Weight 5.6kg Cooling Method Natural convection cooling Warranty Stated in the Datasheet 5 years Standards Grid Connection Regulations IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, G99, VDE-AR-N 4105 Safety and EMC Standards IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2   Compatibility and Important Information This is an on-grid inverter. It does not have a battery input or a dedicated backup output for supplying electrical loads during a grid outage. Using the Zero Export function requires the appropriate configuration and compatible metering equipment specified by the manufacturer. The PV string must be sized according to the panels’ Voc, Vmp, Isc and Imp values, the minimum temperatures at the installation site and the inverter’s electrical limits. Installation, configuration and commissioning must be carried out by qualified personnel in accordance with the manufacturer’s instructions and all applicable regulations.

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. The DEYE SUN-50K-G03 three-phase inverter is the ideal solution for commercial photovoltaic systems, offering high efficiency and advanced features for optimal energy management. With an innovative design and simplified installation, this model significantly reduces implementation and operating costs. Technical specifications: Photovoltaic panel input: Maximum panel power: 65,000 W Maximum voltage: 1,000 V Start-up voltage: 250 V MPPT voltage range: 200 ~ 850 V Input current: 4 x 40 A Short-circuit current: 4 x 60 A Number of MPPT trackers: 4 Number of strings per MPPT: 3 AC output: Nominal AC power: 50,000 W Maximum power: 55,000 W Rated current: 75.8 A Maximum current: 83.3 A Euro efficiency: 98% Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. ✅ Grid connection (EN 50549-1) ✅ Display ✅ RS485 communication port ✅ 65,000W input from solar panels ✅ WiFi module included, with free app ✅ 10-year warranty Download technical data sheet Download user manual Download the certificate of conformity

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. Download technical data sheetDownload user manual

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. Download technical data sheetDownload user manual

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM.

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. Download technical data sheetDownload user manual

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. Download technical data sheetDownload user manual

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. Download technical data sheetDownload user manual

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. Download technical data sheetDownload user manual

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. Download technical data sheetDownload user manual

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. Download technical data sheet Download user manual

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. Download technical data sheet Download user manual

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. Download technical data sheet Download user manual

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. Download technical data sheet Download user manual

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. Download technical data sheet Download user manual

Read more less

Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. Download technical data sheet Download user manual

Read more less

The SUN-M60/80/100G4-EU-Q0 microinverter from Ningbo Deye Inverter Technology Co., Ltd. is a high-performance device, ideal for plug-and-play photovoltaic systems. This microinverter features two MPPT trackers for precise module-level monitoring and offers IP67 protection, ensuring excellent resistance to dust and water. It is suitable for quick and easy installation, making it perfect for use in small spaces. Technical specifications: Maximum PV Input Voltage: Up to 60V Maximum Input Current: 13A Operating Voltage: 220/230V Mains Frequency: 50/60Hz MPPT Efficiency: >99% Weight: 3 kg Operating Temperature: -40 to +65°C Its notable features include: Module-Level Monitoring: Enables the optimisation of the performance of each individual solar panel IP67 protection: Ensures the microinverter’s durability and reliability in extreme conditions. Integrated WiFi Communication: Provides easy remote monitoring and control. Quick Disconnect Function: Complies with the new DIN VDE 0620-1 standards, protecting human safety. Full NS Protection: Includes a self-test function to ensure safe operation. Advantage of External Relay: Ensures lower temperature, extended service life and easy maintenance. Maximum Efficiency: Up to 96.5% maximum efficiency, with a European efficiency rating of 96.0%. 25-Year Design Life: Guaranteed for 15 years. The microinverter connection cable is sold separately

Read more less
