Description
Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market.

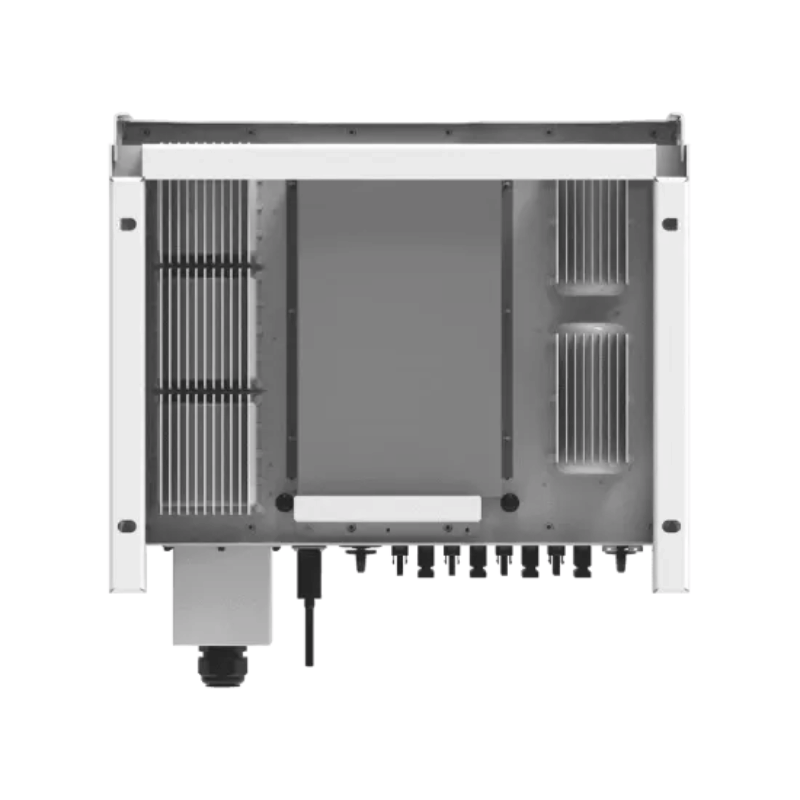

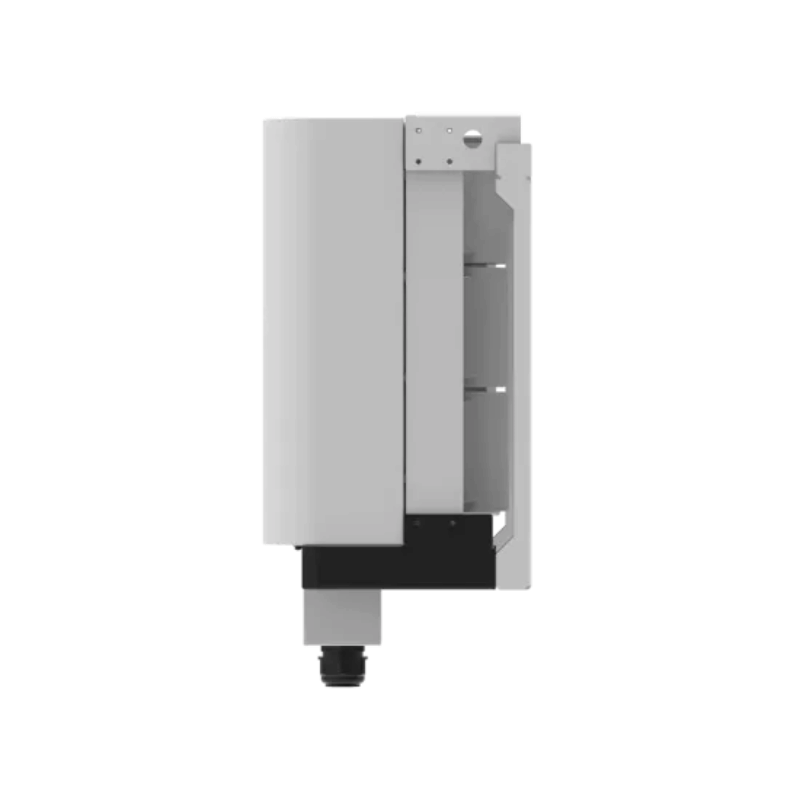

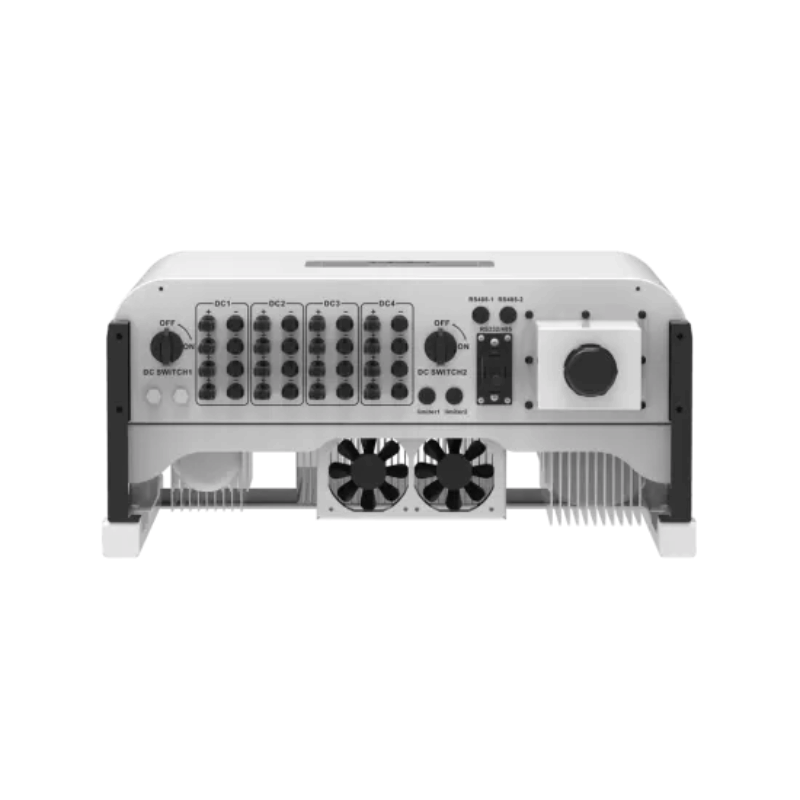

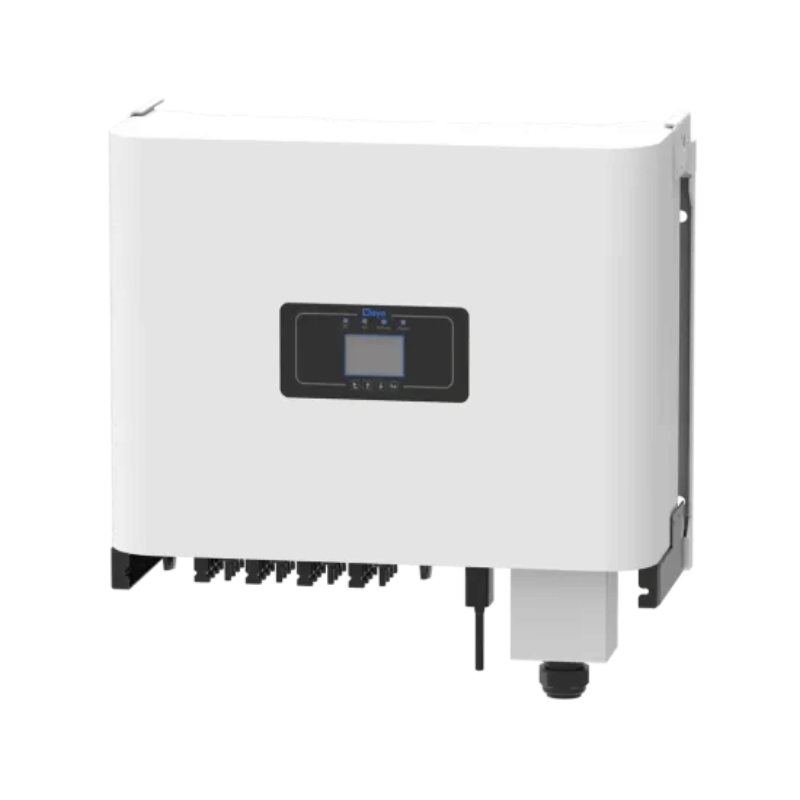

The DEYE SUN-50K-G03 three-phase inverter is the ideal solution for commercial photovoltaic systems, offering high efficiency and advanced features for optimal energy management. With an innovative design and simplified installation, this model significantly reduces implementation and operating costs.
Technical specifications:
Photovoltaic panel input:
-
Maximum panel power: 65,000 W
-
Maximum voltage: 1,000 V
-
Start-up voltage: 250 V
-
MPPT voltage range: 200 ~ 850 V
-
Input current: 4 x 40 A
-
Short-circuit current: 4 x 60 A
-
Number of MPPT trackers: 4
-
Number of strings per MPPT: 3
AC output:
-
Nominal AC power: 50,000 W
-
Maximum power: 55,000 W
-
Rated current: 75.8 A
-
Maximum current: 83.3 A
-
Euro efficiency: 98%
Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W.
As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM.
✅ Grid connection (EN 50549-1)
✅ Display
✅ RS485 communication port
✅ 65,000W input from solar panels
✅ WiFi module included, with free app
✅ 10-year warranty
