Solis Inverters

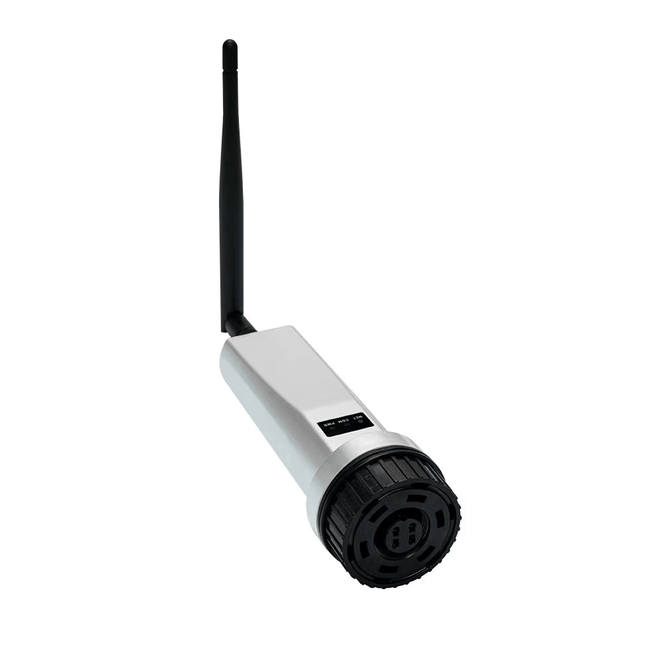

The Solis DLS-W WiFi module is designed to provide an affordable option for monitoring Solis inverters via the internet. This device, also known as a ‘monitoring stick’, is quick to install and allows local and remote monitoring of energy production and inverter status via a WiFi connection. Users can easily view data and other information online, requiring one stick for each Solis inverter they wish to monitor. To install, you need to download the SolisCloud app onto your mobile phone. The setup process involves connecting the WiFi module to the green COM port located at the bottom of the inverter and securing it by tightening the black connector. It is recommended that you first connect your phone to the home network you wish to use for the WiFi logger, to check that you have the correct WiFi password and that the signal is strong enough at the inverter’s location. If the signal is weak, it is recommended that you install a WiFi extender to improve signal quality. It is important to note that the DLS-W module only supports 2.4 GHz WiFi signals and may encounter problems if the router password is incorrect, if the router signal is weak, if there is a firewall blocking data, or if the WiFi logger’s firmware is out of date.

Read more less

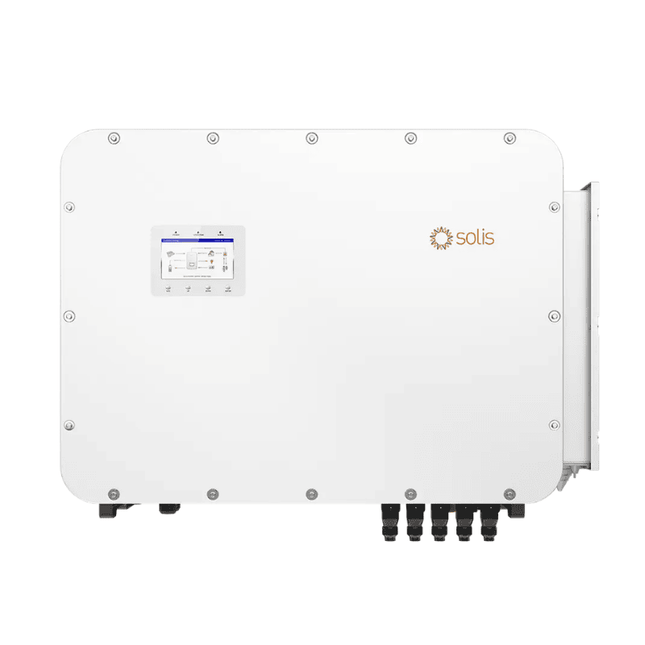

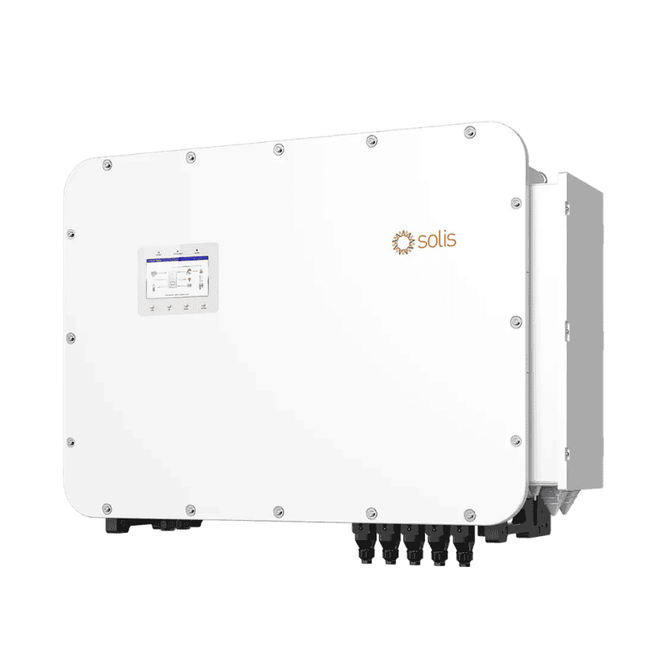

The SOLIS S6-EH3P125K10-NV-YD-H inverter is a state-of-the-art solution designed for commercial and industrial (C&I) applications, offering high performance, maximum flexibility and full integration with high-voltage storage systems. Designed for high-power photovoltaic systems, this 125kW three-phase hybrid inverter enables efficient management of energy from panels, batteries and the grid, making it ideal for optimising consumption, reducing costs and ensuring continuity of supply. With 10 independent MPPT trackers, support for DC oversizing of up to 200% and two independently controlled battery ports, Solis offers a scalable and highly efficient solution for complex industrial projects. Advantages and benefits ✔ Ideal for industrial and commercial applications✔ Maximises output with multiple MPPTs✔ High flexibility in battery configuration✔ Instant backup for critical loads✔ Scalable – up to 6–10 units in parallel✔ Supports peak shaving and consumption optimisation ✔ Compatible with generators and complex hybrid systems Category Specification General information Model S6-EH3P125K10-NV-YD-H Inverter type Three-phase hybrid Application Commercial & Industrial (C&I) Protection rating IP66 Operating temperature -25°C to +60°C Dimensions 1174 × 814 × 400 mm Weight 170 kg PV data (DC input) Maximum PV power 250 kW Maximum DC voltage 1000 V MPPT range 150 – 950 V Number of MPPT 10 Maximum current per MPPT 21 A Number of strings per MPPT 2 Battery data Battery type Lithium-ion (High Voltage) Battery voltage 300 – 950 V Maximum charging current 100A + 100A Max. discharge current 100A + 100A Number of battery ports 2 AC data (output) Rated power 125 kW Output voltage 3/N/PE, 230/400V Maximum AC current 189.9 A Frequency 50/60 Hz Performance Maximum efficiency 97.6% European efficiency 96.9 Functions and protections Backup (EPS) Yes, <10 ms Overload 160% (short duration) Smart functions Peak shaving, VPP, load management Protections Overvoltage, short circuit, anti-islanding Communication Interfaces RS485, CAN, Ethernet Optional WiFi / 4G

Read more less

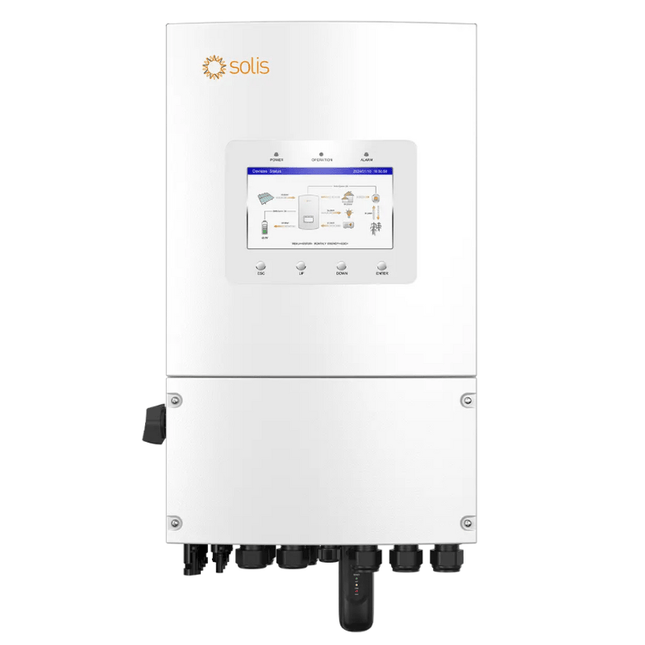

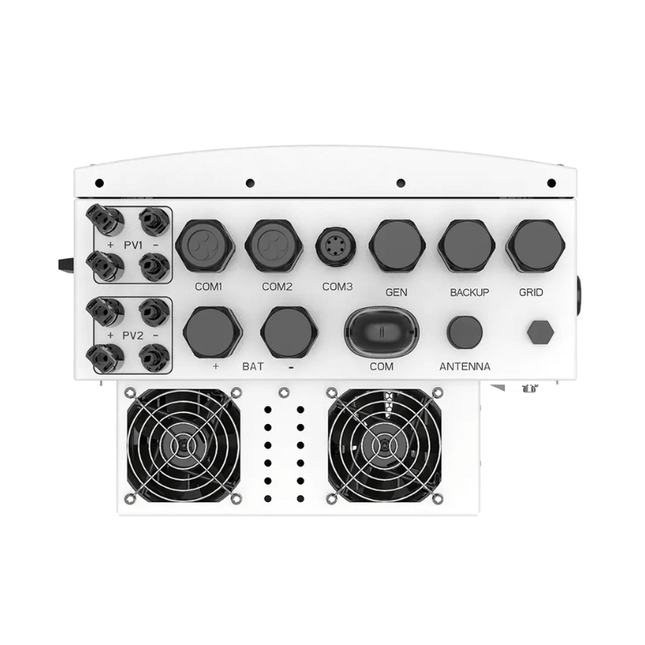

The company that manufactures Solis inverters, also known as Ginlong Technologies, is a global leader in the manufacture and development of power conversion solutions for solar photovoltaics. Founded in 2005 and headquartered in Ningbo, China, Ginlong Solis has dedicated itself to improving the efficiency and reliability of solar inverter technology, offering a wide range of products for residential, commercial and utility applications. Solis inverters are recognised for their innovation, superior build quality and ability to deliver optimal performance across a variety of environmental conditions. The company places a strong emphasis on research and development, aiming to bring cutting-edge technologies to market that facilitate the efficient integration of renewable energy into global energy systems. Ginlong Technologies is listed on the Shenzhen Stock Exchange and continues to expand its global presence, consolidating its position as a key player in the renewable energy industry. With a rated power of 6kW, the S5-EH1P6K-L is ideal for small and medium-sized households, enabling homeowners to maximise self-consumption of solar energy and reduce their reliance on the electricity grid. This hybrid inverter supports connection to both photovoltaic panels and energy storage systems, being compatible with most types of lithium-ion or lead-acid batteries. Key features of the Solis S5-EH1P6K-L hybrid inverter include smart energy management, which allows users to prioritise the power source (solar, battery or grid) according to their needs and price conditions, and real-time monitoring of energy production and consumption via an online platform or mobile app. It also features advanced safety functions to protect both the photovoltaic system and the electricity grid. Its compact, easy-to-install design, combined with the high efficiency and reliability for which Solis products are renowned, make the S5-EH1P6K-L an attractive solution for those looking to optimise their solar energy system with state-of-the-art technology.

Read more less

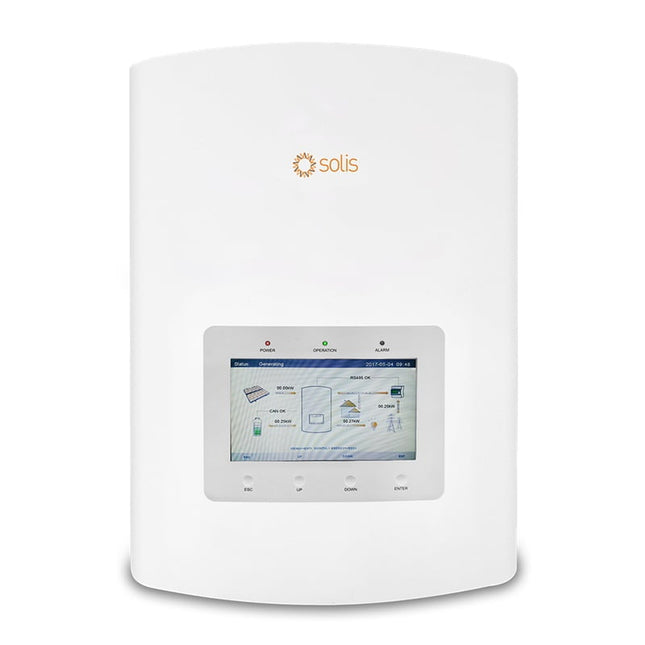

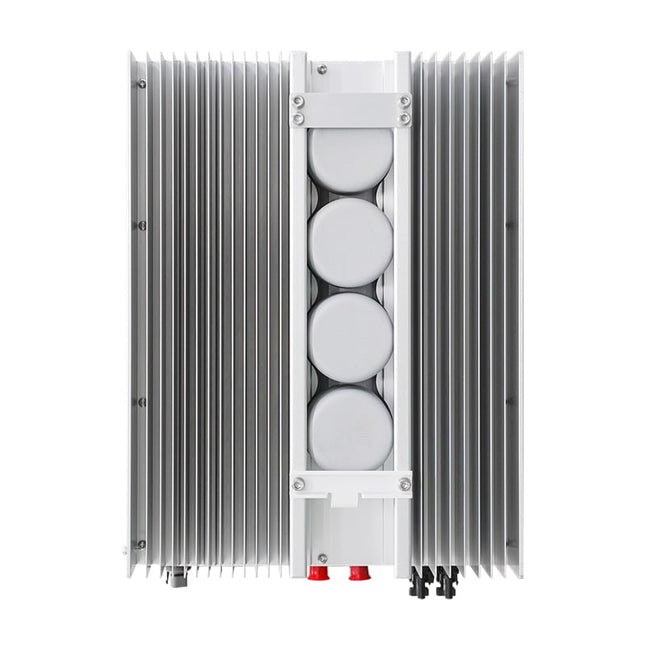

The company that manufactures Solis inverters, also known as Ginlong Technologies, is a global leader in the manufacture and development of power conversion solutions for solar photovoltaic energy. Founded in 2005 and headquartered in Ningbo, China, Ginlong Solis has dedicated itself to improving the efficiency and reliability of solar inverter technology, offering a wide range of products for residential, commercial and utility applications. Solis inverters are recognised for their innovation, superior build quality and ability to deliver optimal performance across a variety of environmental conditions. The company places a strong emphasis on research and development, aiming to bring cutting-edge technologies to market that facilitate the efficient integration of renewable energy into global energy systems. Ginlong Technologies is listed on the Shenzhen Stock Exchange and continues to expand its global presence, consolidating its position as a key player in the renewable energy industry. With a rated power of 3kW, the S5-EH1P5K-L is ideal for small and medium-sized households, enabling owners to maximise self-consumption of solar energy and reduce their reliance on the electricity grid. This hybrid inverter supports connection to both photovoltaic panels and energy storage systems, being compatible with most types of lithium-ion or lead-acid batteries. Key features of the Solis S5-EH1P5K-L hybrid inverter include intelligent energy management, which allows users to prioritise the power source (solar, battery or grid) according to their needs and price conditions, and real-time monitoring of energy production and consumption via an online platform or mobile app. It also features advanced safety functions to protect both the photovoltaic system and the electricity grid. Its compact, easy-to-install design, combined with the high efficiency and reliability for which Solis products are renowned, make the S5-EH1P5K-L an attractive solution for those looking to optimise their solar energy system with state-of-the-art technology.

Read more less

The company that manufactures Solis inverters, also known as Ginlong Technologies, is a global leader in the manufacture and development of power conversion solutions for solar photovoltaics. Founded in 2005 and headquartered in Ningbo, China, Ginlong Solis has dedicated itself to improving the efficiency and reliability of solar inverter technology, offering a wide range of products for residential, commercial and utility applications. Solis inverters are recognised for their innovation, superior build quality and ability to deliver optimal performance across a variety of environmental conditions. The company places a strong emphasis on research and development, aiming to bring cutting-edge technologies to market that facilitate the efficient integration of renewable energy into global energy systems. Ginlong Technologies is listed on the Shenzhen Stock Exchange and continues to expand its global presence, consolidating its position as a key player in the renewable energy industry. With a rated power of 3kW, the S5-EH1P3K-L is ideal for small and medium-sized households, allowing homeowners to maximise self-consumption of solar energy and reduce their reliance on the electricity grid. This hybrid inverter supports connection to both photovoltaic panels and energy storage systems, being compatible with most types of lithium-ion or lead-acid batteries. Key features of the Solis S5-EH1P3K-L hybrid inverter include smart energy management, which allows users to prioritise the power source (solar, battery or grid) according to their needs and price conditions, and real-time monitoring of energy production and consumption via an online platform or mobile app. It also features advanced safety functions to protect both the photovoltaic system and the electricity grid. Its compact, easy-to-install design, combined with the high efficiency and reliability for which Solis products are renowned, make the S5-EH1P3K-L an attractive solution for those looking to optimise their solar energy system with state-of-the-art technology.

Read more less

The SOLIS Hybrid 15kW inverter is an advanced solution for three-phase energy storage systems, offering top-tier power and efficiency. It combines the ability to manage critical loads and extend backup duration during power outages with exceptional flexibility in integration with high-power photovoltaic modules and 48V batteries. With an efficiency of up to 97.6%, this inverter optimises the use of generated and stored energy. Technical specifications: Rated power: 15 kW Maximum input voltage: 1000 V Start-up voltage: 160 V Maximum input current: 40 A Overload capacity: 200% for 10 seconds Maximum battery charge/discharge current: 290 A Quiet operation: < 65 dB Nominal mains voltage: 380/400 V Switchover time for backup: < 10 ms Maximum efficiency: 97.6% Advantages: Support for microgrids; multiple inverters can operate together for improved energy stability 200% overload capacity, ensuring continuous power supply to high loads Extended functionality with generators, ideal for emergencies or prolonged power cuts Advanced monitoring and control via mobile app, thanks to Bluetooth connectivity and multiple communication options (Wi-Fi, Ethernet, RS485) High protection against environmental conditions (IP66) and extreme temperatures (-40°C to +60°C)

Read more less
