Description

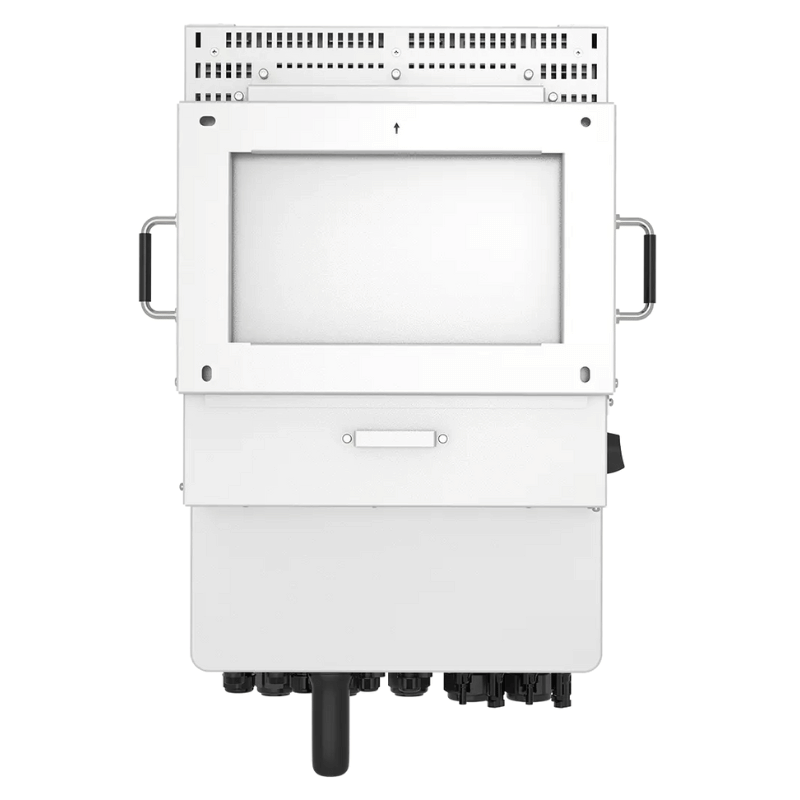

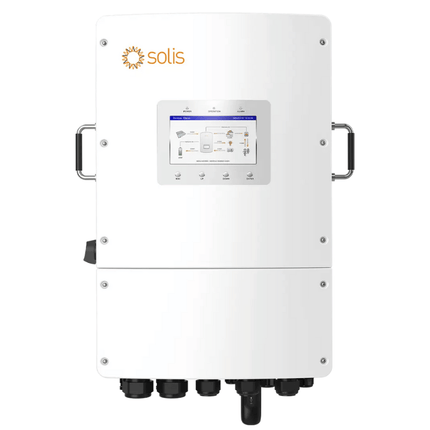

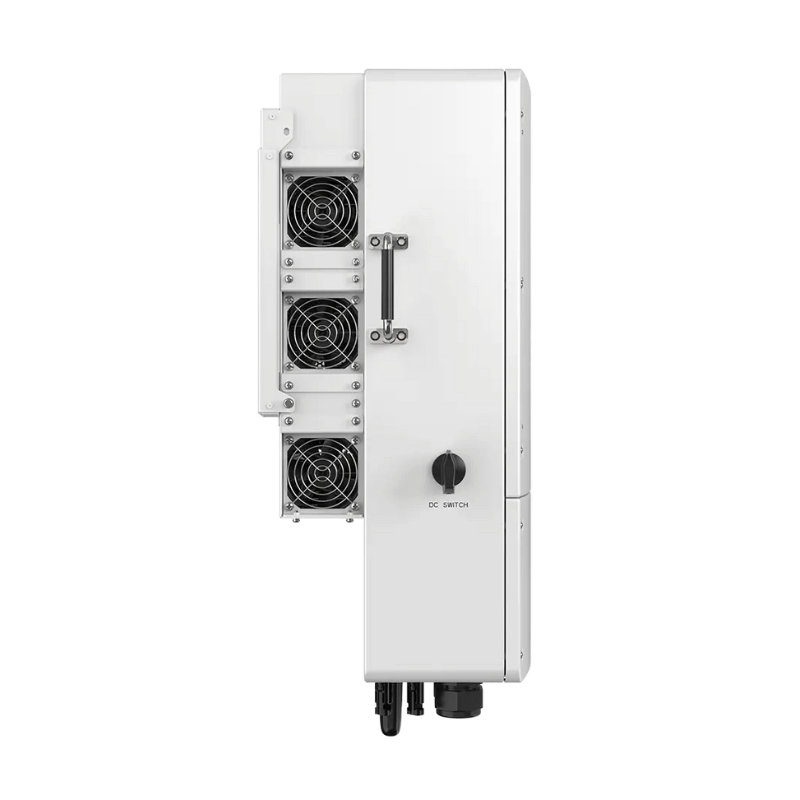

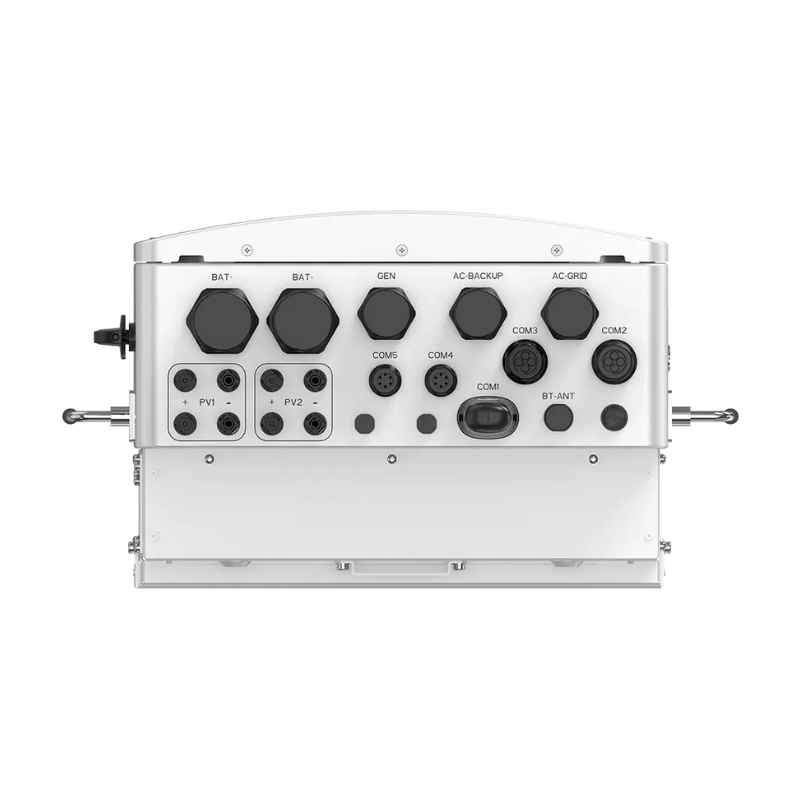

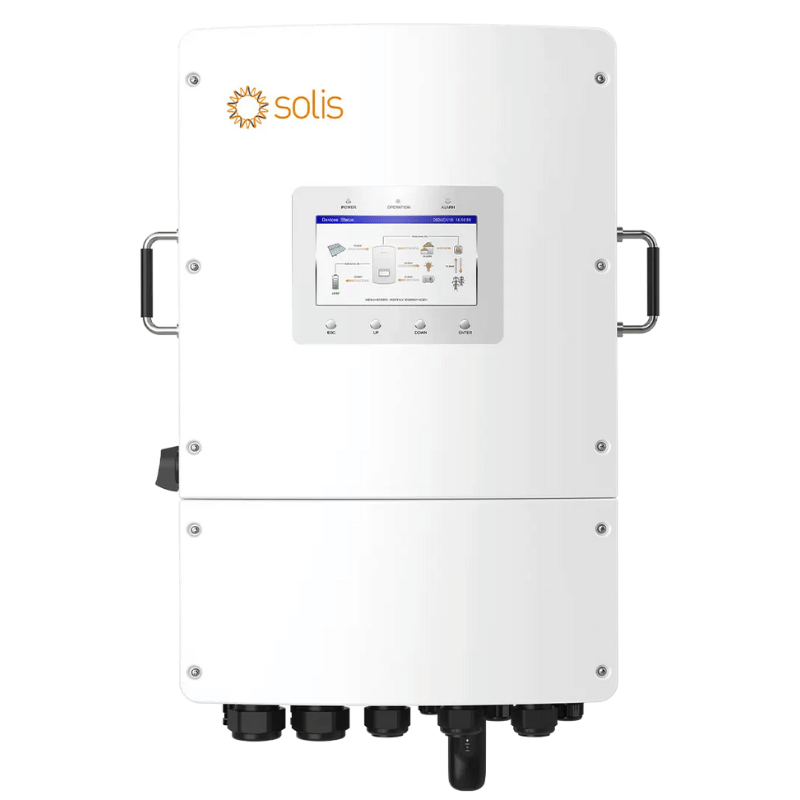

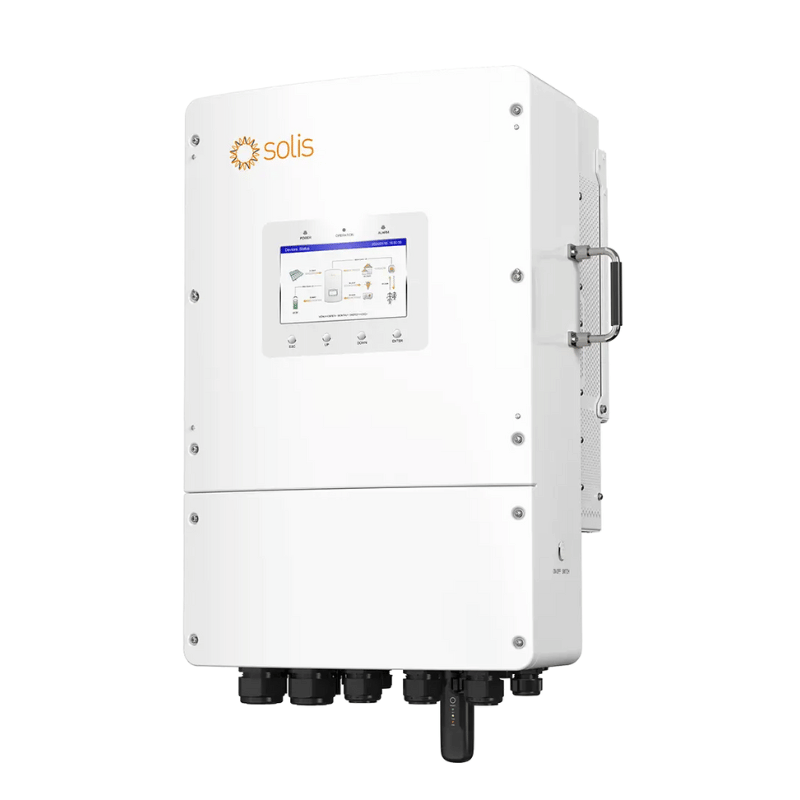

The SOLIS Hybrid 12kW inverter is the ideal solution for efficient energy management in a three-phase energy storage system. It ensures optimal integration between solar power generation, storage batteries and domestic consumption, delivering high performance and efficiency of up to 97.6%. With support for 48V batteries and compatibility with the most powerful PV modules, this inverter is designed to offer stability and reliability in any environment.
Technical specifications:
- Rated power: 12 kW
- Maximum input voltage: 1000 V
- Start-up voltage: 160 V
- Maximum input current: 40 A
- Overload capacity: 200% for 10 seconds
- Maximum battery charge/discharge current: 250 A
- Intelligent fan cooling, quiet operation (< 65 dB)
- Nominal mains voltage: 380/400 V
- Switchover time for backup: < 10 ms
- Maximum efficiency: 97.6%
Advantages:
- Compatible with generators to extend backup duration during power outages
- Supports unbalanced loads on both mains and backup ports
- High current handling capacity, ideal for high-power photovoltaic modules
- Enables intelligent control of critical and non-critical loads thanks to the two backup ports
- Compact design, easy to install and maintain
