Solar Panels

Download the technical datasheet The OSDA ODA590-36V-MHD photovoltaic panel has a rated power output of 590W and uses 144 N-Type monocrystalline cells. Its module efficiency of 22.84% enables high power generation from the available installation area. The bifacial construction allows the panel to capture sunlight from both the front and rear sides. When installed above a reflective surface, the rear side can contribute additional energy production. Under the BNPI bifacial test conditions specified by the manufacturer, with front irradiance of 1000W/m² and rear irradiance of 135W/m², the resulting power output can reach 654W. This value does not represent the panel’s rated STC output, but its performance under the bifacial testing conditions specified in the technical datasheet. Main Features Rated power output: 590W 182 × 91mm N-Type monocrystalline cells 144 cells in a 12 × 12 configuration Module efficiency: 22.84% Bifaciality rate: 80% ± 5% 2mm tempered front glass with anti-reflective coating 2mm rear glass Silver anodised aluminium alloy frame IP68 junction box with three bypass diodes Pmax temperature coefficient: -0.290%/°C Maximum system voltage: 1500V Mechanical resistance to snow and wind loads Benefits High Power per Module The 590W rated output helps reduce the number of panels required to achieve the designed total system capacity. Bifacial Energy Production The rear side can use light reflected from the surface underneath the panel when the installation conditions and mounting configuration allow it. Good Performance at High Temperatures The Pmax temperature coefficient of -0.290%/°C helps limit power losses as the cell temperature increases. Dual-Glass Construction The front and rear glass protect the cells and contribute to the module’s mechanical strength and long-term durability. Recommended Applications Residential photovoltaic systems Commercial and industrial installations Rooftop-mounted systems Ground-mounted photovoltaic installations Photovoltaic carports Projects where reflected light can be captured by the rear side Technical Specifications General Information Brand OSDA Model ODA590-36V-MHD Module type N-Type monocrystalline, bifacial Electrical Specifications – STC Rated maximum power Pmax 590W Maximum power voltage Vmp 44.87V Maximum power current Imp 13.15A Open-circuit voltage Voc 52.79V ± 3% Short-circuit current Isc 13.97A ± 3% Module efficiency 22.84% Bifacial Performance – BNPI Resulting maximum power 654W Maximum power voltage Vmp 45.01V Maximum power current Imp 14.53A Open-circuit voltage Voc 52.95V ± 3% Short-circuit current Isc 15.44A ± 3% BNPI values are measured at 1000W/m² front irradiance and 135W/m² rear irradiance. Mechanical Characteristics Cell type 182 × 91mm N-Type monocrystalline Number of cells 144, 12 × 12 configuration Dimensions 2278 × 1134 × 30mm Weight 31.50kg Front glass 2mm tempered glass with anti-reflective coating Rear glass 2mm glazed glass Frame Silver anodised aluminium alloy Junction box IP68, 1500VDC, 3 Schottky bypass diodes Cables 4mm², positive 300mm and negative 300mm Connector rating IP68 Bifaciality rate 80% ± 5% Operating Parameters Maximum system voltage 1500V Operating temperature -40°C to +85°C Maximum series fuse rating 25A Nominal module operating temperature 45°C ± 2°C Maximum snow/wind load 5400Pa / 2400Pa Safety protection class Class II IEC fire rating Class A Temperature Coefficients Pmax temperature coefficient -0.290%/°C Voc temperature coefficient -0.250%/°C Isc temperature coefficient +0.045%/°C Warranty and Packaging Product warranty stated in the datasheet 15 years Performance warranty 30 years Guaranteed output after 30 years 87.4% Commercial pallet quantity 31 panels Sales and Delivery Conditions ⚠️ For orders requiring delivery, the panels are sold exclusively as a complete pallet of 31 units. For orders collected in person from the SolarTech warehouse, the panels can also be purchased individually. Important Information The additional energy generated by the rear side depends on the surface underneath the panel, its reflectivity, the mounting height and angle, the distance between rows and the actual irradiance conditions. String sizing must take into account the panel’s Voc, Vmp, Isc and Imp values, the inverter limits and the minimum and maximum temperatures at the installation location. Installation, configuration and commissioning must be carried out by qualified personnel in accordance with the manufacturer’s instructions and all applicable regulations.

Read more less

Download the datasheet Sales and delivery conditions ⚠️ For orders requiring delivery, the panels are sold exclusively by full pallet of 31 units. For orders collected directly from the SolarTech warehouse, the panels can also be purchased individually. The Osda 620W N-Type Bifacial Photovoltaic Panel is designed for photovoltaic installations requiring high power output while making efficient use of the available installation area. The model uses 132 monocrystalline N-Type cells and achieves an efficiency of 22.96%. Bifacial technology enables the panel to capture light through both its front and rear sides. When installed above a light-reflective surface, such as light-coloured gravel, a white membrane, or concrete, the panel can also use the solar radiation reaching its rear side. Under the BNPI conditions specified in the datasheet, with front-side irradiance of 1,000W/m² and rear-side irradiance of 135W/m², the resulting output can reach 687W. This value represents a standardised bifacial testing condition and is not the panel’s rated STC output. The dual-glass construction uses 2mm tempered front glass with an anti-reflective coating and 2mm rear glass. This structure provides protection for the cells and is suitable for residential, commercial, and industrial photovoltaic installations. Main features Rated output of 620W under STC conditions Monocrystalline N-Type cells 132 cells in a 12 × 11 configuration Bifacial technology with a bifaciality rate of 80% ± 5% High efficiency of 22.96% Good performance under low-light conditions Low LID/LeTID degradation Bifacial dual-glass construction Silver anodised aluminium alloy frame IP68 junction box with three bypass diodes Maximum system voltage of 1,500V Mechanical resistance of 5,400Pa for snow loads and 2,400Pa for wind loads Pmax temperature coefficient of -0.290%/°C Advantages More energy from the same area The 620W output and 22.96% efficiency enable the development of photovoltaic installations with a high power density. Power generation on both sides The rear side can convert reflected light into electricity when the installation conditions and the surface beneath the panel support bifacial energy capture. Good performance at high temperatures The Pmax temperature coefficient of -0.290%/°C limits power losses when the cell temperature increases. Improved low-light performance N-Type technology contributes to energy production during periods of lower irradiance, such as in the morning and evening. Robust construction The dual-glass structure, anodised aluminium frame, and IP68 junction box protect the module’s components under normal installation and operating conditions. Recommended applications Residential photovoltaic systems Commercial and industrial buildings Rooftop installations Ground-mounted systems Photovoltaic carports Projects where reflected light can be captured through the rear side Electrical specifications – STC Specification Value Reference model ODA620-33V-MHDRz Rated power Pmax 620W Voltage at maximum power Vmp 41.46V Current at maximum power Imp 14.96A Open-circuit voltage Voc 48.78V ± 3% Short-circuit current Isc 15.89A ± 3% Module efficiency 22.96% Bifacial performance – BNPI Specification Value Resulting maximum power 687W Voltage Vmp 41.59V Current Imp 16.53A Voltage Voc 48.93V ± 3% Current Isc 17.56A ± 3% BNPI values measured at front-side irradiance of 1,000W/m² and rear-side irradiance of 135W/m². Construction characteristics Specification Value Cell type Monocrystalline N-Type, 182 × 105mm Number of cells 132, 12 × 11 configuration Dimensions 2,382 × 1,134 × 30mm Weight 32.40kg Front glass 2mm, tempered, with anti-reflective coating Rear glass 2mm, glazed glass Frame Silver anodised aluminium alloy Junction box IP68, 1,500VDC, 3 Schottky bypass diodes Cables 4mm², positive 300mm and negative 300mm Connectors IP68 Operating parameters Specification Value Maximum system voltage 1,500V Operating temperature -40°C to +85°C Maximum series fuse rating 28A NMOT 45°C ± 2°C Snow/wind load 5,400Pa / 2,400Pa Protection class Class II IEC fire rating Class A Temperature coefficients Specification Value Pmax coefficient -0.290%/°C Voc coefficient -0.250%/°C Isc coefficient +0.045%/°C Packaging Specification Value Panels per pallet 31 units Technical warning The additional output generated through the rear side depends on the surface beneath the panel, its reflectivity, the installation height and angle, the spacing between rows, and the irradiance conditions. String sizing must take into account the panel’s voltage and current ratings, the inverter’s limits, and the minimum and maximum temperatures at the installation site. Installation, configuration, and commissioning must be carried out by qualified personnel in accordance with the manufacturer’s instructions and applicable regulations. Warranty and standards The datasheet specifies: 15-year product warranty 30-year performance warranty Guaranteed output of 87.4% at the end of the 30-year period The following standards are mentioned: IEC 61215:2021, IEC 61730:2023, IEC 61701, IEC 62716, IEC 60068, and IEC 62804.

Read more less

The AIKO 645W photovoltaic panel from the Stellar 1N+ series is a premium solution for residential, commercial and industrial photovoltaic systems, designed for high performance, excellent efficiency and optimised energy production in all operating conditions. N-Type ABC technology and the bifacial dual-glass construction allow energy to be captured on both the front and rear sides of the panel, increasing the overall efficiency of the photovoltaic system. With a power output of 645W and an efficiency of up to 23.9%, this model is ideal for projects where available space must be utilised to the full. The modern full-black design and advanced AIKO technology offer a premium look and stable long-term performance. The panel is constructed with 2.0+2.0 mm double semi-tempered glass and an anodised aluminium frame, offering excellent resistance to harsh weather conditions, micro-cracks and high temperatures. General specifications Brand AIKO Model AIKO-G645-MCH72Dw Maximum power (Pmax) 645W Module efficiency 23.9% Cell technology N-Type ABC Panel type Bifacial Dual-Glass Electrical characteristics (STC) Open-circuit voltage (Voc) 53.90V Maximum power voltage (Vmp) 45.20V Short-circuit current (Isc) 15.00A Current at maximum power (Imp) 14.27A Construction and dimensions Dimensions 2382 × 1134 × 30 mm Weight 32.3 kg Number of cells 144 (6×24) Glass Dual glass 2.0+2.0 mm semi-tempered Frame Anodised aluminium Junction box protection rating IP68 Connectors MC4 Compatible / MC4-EVO2A Rating and operation Operating temperature -40°C to +70°C Maximum system voltage DC1500V Frontal mechanical load 5400Pa Rear mechanical load 2400Pa Protection class Class II Warranties Product warranty 15 years Performance warranty 30 years Deterioration in the first year ≤1% Annual degradation years 2–30 ≤0.35% Product advantages High energy yield thanks to bifacial technology Excellent performance even in partial shade Low losses at high temperatures Long-term stability and durability Ideal for commercial and industrial projects Low BOS costs thanks to high power per panel Premium, modern appearance ✅ Rated power 645W✅ State-of-the-art N-Type ABC technology✅ Dual-glass bifacial panel✅ High efficiency of 23.9%✅ Low annual degradation ≤0.35%✅ Enhanced resistance to high temperatures✅ Protection against microcracks Download the technical data sheet Download the manual Download the declaration of conformity

Read more less

The Canadian Solar CS6.2-54TM-505 photovoltaic panel, from the TOPHiKu6 range, is a premium solution designed for residential, commercial and industrial applications where high performance and long-term reliability are essential. Equipped with advanced N-type TOPCon technology, this module offers superior efficiency, low losses and excellent operational stability, including in high-temperature conditions. It is the ideal choice for efficient and sustainable photovoltaic systems. With a power output of 505W and an efficiency of 22.7%, the panel ensures optimised energy production, even in less favourable conditions. The robust construction, featuring tempered glass and an anodised aluminium frame, guarantees excellent resistance to environmental factors. Key features High power: 505W High efficiency: 22.7% Modern technology: N-Type TOPCon Excellent performance at high temperatures Mechanical strength: 5400 Pa (snow) / 2400 Pa (wind) System voltage: 1500V Extended warranty: 15 years product + 30 years performance Advantages Higher long-term energy output Reduced degradation compared to standard panels Ideal for residential and commercial projects Compatible with most inverters on the market High reliability in extreme conditions General information Model CS6.2-54TM-505 Cell technology N-type TOPCon Cell configuration 108 [2 × (9 × 6)] Electrical data (STC) Rated power (Pmax) 505 W Module efficiency 22.7% Vmp 33.6 V Imp 15.04 A Physical data Dimensions 1961 × 1134 × 30 mm Weight 23.3 kg Warranty Product 15 years Performance 30-year linear ✅Rated power: 505W ✅Technology:N-Type TOPCon ✅High efficiency: up to 22.7% ✅Glass-glass structure for maximum durability ✅Warranty: 25 years product / 30 years performance Download technical data sheet Download the declaration of conformity

Read more less

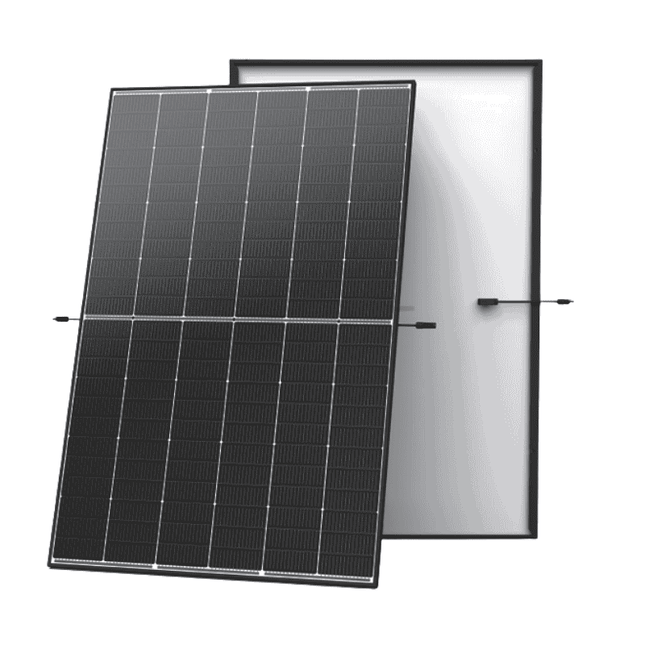

The Trina Solar 455W N-Type I-TOPCon photovoltaic panel is a high-performance and reliable solution for residential, commercial and industrial photovoltaic systems. Thanks to N-Type I-TOPCon technology and its double-glass construction, this panel offers high efficiency, low degradation over time and an extended service life. Built to withstand harsh environmental conditions, the panel features an IP68 protection rating and operates optimally across a wide temperature range, making it ideal for long-term installations. Key features Monocrystalline N-Type I-TOPCon cell technology Rated power: 455W Double-glass construction for increased durability Black anodised aluminiumframe – modern design Low degradation and high long-term efficiency Suitable for on-grid and off-grid installations Excellent performance in low-light conditions Electrical specifications Maximum power (Pmax): 455 W Current at maximum power (Imp): 10.11 A Short-circuit current (Isc): 10.77 A Voltage at maximum power (Vmp): 45 V Open-circuit voltage (Voc): 53.4 V Construction details Cell type: N-Type I-TOPCon monocrystalline Number of cells: 144 Front/rear glass: 1.6 mm heat-strengthened glass Frame: Anodised aluminium alloy Protection rating: IP68 Dimensions and weight Dimensions: 1762 × 1134 × 30 mm Pallet weight: 760 kg Packaging: Pallet – 36 units Operating conditions Operating temperature: -40°C to +85°C Warranty 25-year product warranty 30-year linear performance warranty The Trina Solar 455W photovoltaic panel, based on N-Type I-TOPCon technology, offers high performance, minimal degradation over time and excellent reliability, making it a reliable solution for residential, commercial and industrial projects. ✅ Maximum power: 455W✅ Cell technology: N-Type I-TOPCon monocrystalline✅ Construction: Double-glazed, black anodised aluminium frame✅ Open-circuit voltage (Voc): 53.4V Download the technical data sheet Download manual Download the declaration of conformity

Read more less

The Trina Solar 610W bifacial N-Type I-TOPCon photovoltaic panel is designed for large-scale photovoltaic projects, where maximum power per panel, durability and long-term efficiency are essential. Thanks to bifacial technology and N-Type I-TOPCon cells, the panel harnesses both direct and reflected solar radiation, offering superior performance compared to standard panels. The 2.0 mm double-glazed construction and robust anodised aluminium frame make it ideal for commercial and industrial applications, including ground-mounted installations. Technical data Maximum power (Pmax): 610 W Current at maximum power (Imp): 15.33 A Short-circuit current (Isc): 16.14 A Voltage at maximum power (Vmp): 39.79 V Open-circuit voltage (Voc): 48.08 V Construction Cell type: N-Type I-TOPCon Monocrystalline, bifacial Number of cells: 132 Front glass: 2.0 mm AR-coated heat-strengthened glass Rear glass: 2.0 mm heat-strengthened glass (white coating) Frame: Anodised aluminium alloy, 30 mm Protection rating: IP68 Advantages / Benefits Bifacial technology – additional energy production from the rear High power output of 610W, ideal for large-scale projects N-Type I-TOPCon cells with low degradation over time 2.0 mm double-glazed glass for enhanced mechanical strength and durability Stable performance in extreme temperature conditions Suitable for commercial, industrial and solar farm installations

Read more less

The VT-10160 portable and foldable solar panel from V-TAC, with a capacity of 160W, is the perfect solution for those looking for an efficient and flexible source of renewable energy. This panel is designed to offer an ideal balance between power and portability, making it an excellent choice for camping, outdoor trips, emergency use or any activity requiring electricity in areas without access to the mains supply. Key features: - **Standard working power**: 160W, with a variation of -5% to +10%, ensuring a consistent and reliable source of solar energy. - **Standard operating voltage**: 17.6V and **standard operating current**: 9.08A, optimised to maximise the charging efficiency of connected devices and batteries. - **Open-circuit voltage (Voc)**: 21.2V and **short-circuit current (Isc)**: 9.75A, providing an indication of the panel’s performance under ideal conditions. - **Dimensions**: When folded, the panel measures 680 × 468 × 54 mm, making it easy to transport and store. When unfolded, it expands to 1670 × 680 × 25 mm, providing a large surface area for efficient capture of sunlight. - **Weight**: Approximately 9 kg, striking a balance between robustness and ease of handling. The panel includes a solar charge controller with multiple output options: - **DC 5521** for direct charging with a power output of up to 160W and an adjusted voltage of 19.3V. - **USB ports**: a Type-C port capable of delivering up to 45W for fast charging and USB-A ports, including one that supports Quick Charge 3.0 (QC3.0), ensuring compatibility with a wide range of mobile devices. Designed for versatility, the panel can be installed using mounts to improve solar energy absorption or hung up, offering flexibility of use and optimising available space. It folds into a compact (1 * 4) format, making it easy to transport and store. Compatible with portable power stations ranging from 300W to 2000W, the VT-10160 panel is ideal for providing power in a variety of settings, from leisure activities to use as a backup power source in emergencies. With a 2-year warranty, this solar panel represents a durable and reliable investment for those who wish to rely on green energy for their travels and activities.

Read more less

The VT-10120 portable and foldable solar panel from V-TAC, with a standard output of 120W, is an excellent solution for those who need an efficient and easily transportable renewable energy source. Designed to maximise solar energy capture in a variety of environments, this panel is ideal for camping, hiking, use in rural areas or as an emergency backup. Key features: Standard working power: 120W, with a tolerance of -5% to +10%, ensuring high-quality performance in direct sunlight. Standard operating voltage: 17.6V and standard operating current: 6.36A, offering optimal efficiency for charging devices and batteries. Open-circuit voltage (Voc): 21.2V and short-circuit current (Isc): 6.83A, indicating the panel’s maximum capacity under ideal test conditions. Dimensions: When folded, it measures 430 x 540 x 54 mm, making it compact and easy to store or transport. Once unfolded, it extends to 1930 x 430 x 25 mm, providing a large surface area for capturing solar energy. Weight: 6.3 kg, striking a balance between portability and durability. The panel includes a solar charge box with multiple outputs, including: DC 5.2V with a working power of 120W and a working voltage set at 19.3V, compatible with various devices and energy storage systems. USB ports, including a Type-C port offering up to 45W fast charging and USB-A ports, one of which supports Quick Charge 3.0 (QC3.0) technology, ensuring efficient charging of mobile devices. The panel folds into a compact 1 * 4 format, facilitating transport and storage. It is equipped with brackets to improve energy absorption efficiency and includes options for suspended installation, allowing for space-saving and adaptation to different environments. Compatible with a wide range of portable power stations, from 300W to 2000W, the VT-10120 solar panel is a versatile solution for charging needs whilst on the move or in areas without access to the mains electricity supply. Backed by a 2-year warranty, it represents a durable and reliable investment for access to clean energy wherever you are.

Read more less
