BMV Sensors
-

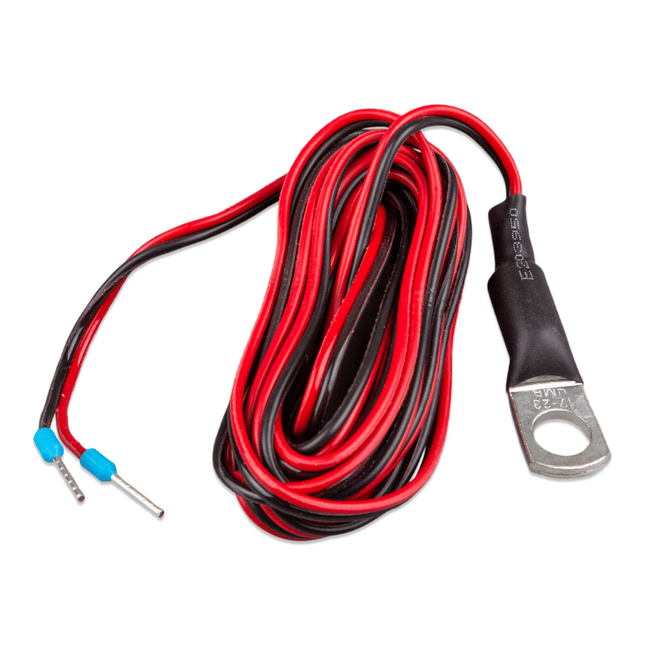

Temperature sensor, Victron Energy
The Victron Energy temperature sensor for Venus, PMP and Quattro is an essential accessory for effectively monitoring temperature in inverter systems. It helps protect equipment by measuring the temperature and automatically adjusting battery charging and discharging parameters based on the detected temperature. Key features: Compatible with Victron Energy’s Venus, PMP and Quattro inverters. Easy to install and connect directly to compatible units. Provides a reliable solution for optimising performance and extending the service life of batteries and equipment. This sensor is ideal for use in photovoltaic applications and energy storage systems, contributing to better management of the thermal conditions of system components.
€21,82
-

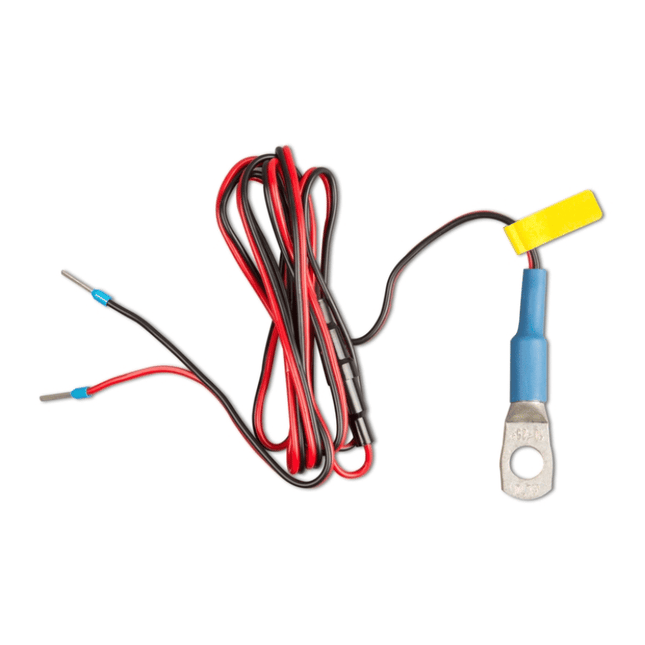

BMV-702 Temperature Sensor by Victron Energy
The BMW-702 temperature sensor is an accessory that can be purchased separately for the BMV-702 battery monitoring systems. The BMW-702 temperature sensor is useful for providing information on battery temperature, preventing it from rising excessively (overheating) or, conversely, dropping too low. This temperature sensor allows the second channel of the BMV 702 to be used for measuring battery temperature instead of monitoring the voltage of an auxiliary battery. The BMV can store temperature readings in its historical data memory. The sensor is not the same as those used in other Victron products, so it can only be used with the BMV702. The sensor is fitted with a short lead that connects to the circuit board on the unit. Please note that if you use the second channel to read the temperature using this sensor, you cannot use it for anything else, such as reading the voltage of a second battery. It can only be used for a single function, and the channel is user-programmable.
€32,72
-

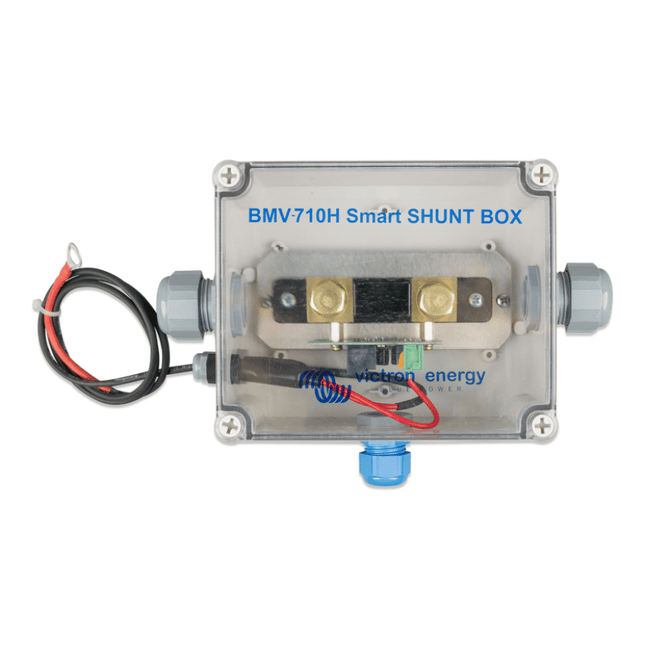

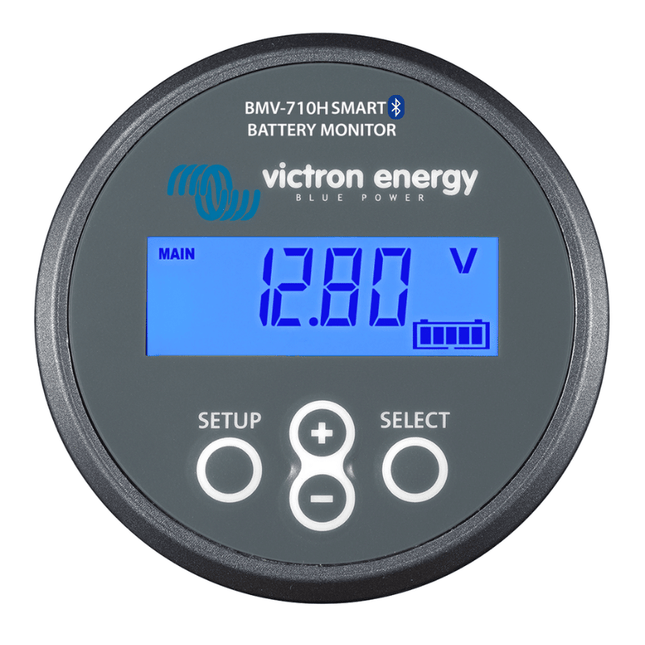

BMV-710H Smart, Victron Energy
The BMV-710 is a high-precision battery monitoring device. The device’s main function is to calculate energy consumption and the battery’s state of charge. Consumption in ampere-hours is calculated by integrating the current flowing into or out of the battery. Technical specifications: - Battery voltage (V). - Battery charge/discharge current (A). - Amperes-hour consumed (Ah). - Charge level (%). - Time remaining until discharge level is reached. - Visual and audible alarm: overvoltage, undervoltage and/or low battery. - Programmable relay for alarm or generator start-up. Dimensions: - Diameter: 65 mm - Thickness: 30 mm
€561,04
-

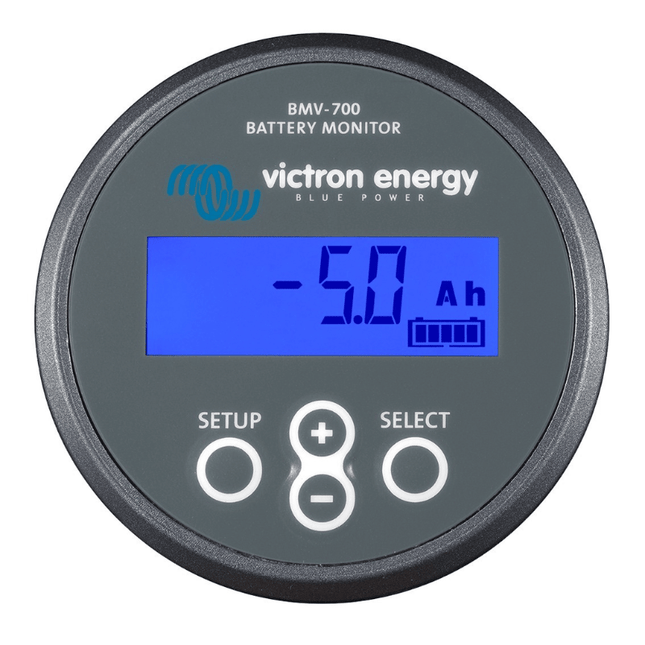

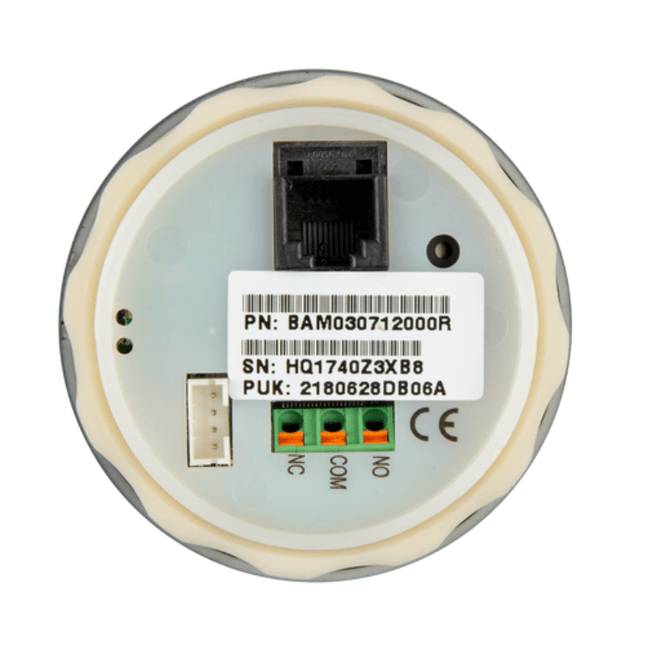

BMV-700H 70–350 VDC, Victron Energy
The BMV-700 is a high-precision battery monitoring device. The device’s main function is to calculate energy consumption and the battery’s state of charge. Energy consumption in ampere-hours is calculated by integrating the current flowing into or out of the battery. Technical specifications: - Battery voltage (V). - Battery charge/discharge current (A). - Amperes-hour consumed (Ah). - Charge level (%). - Time remaining until discharge level is reached. - Visual and audible alarm: overvoltage, undervoltage and/or low battery. - Programmable relay for alarm or generator start-up. Dimensions: - Diameter: 65 mm - Thickness: 30 mm
€536,26
