Description

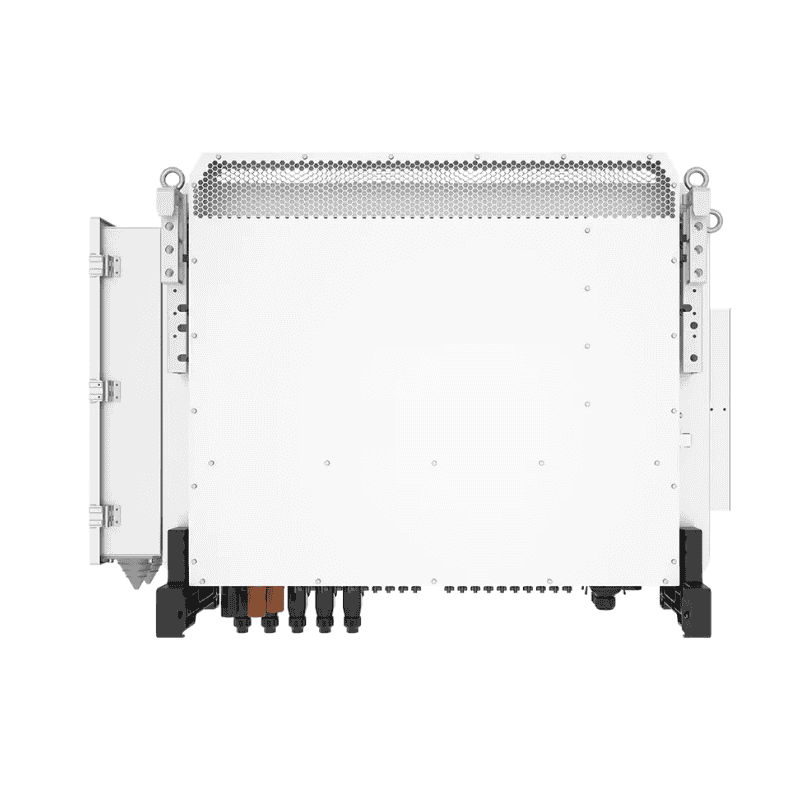

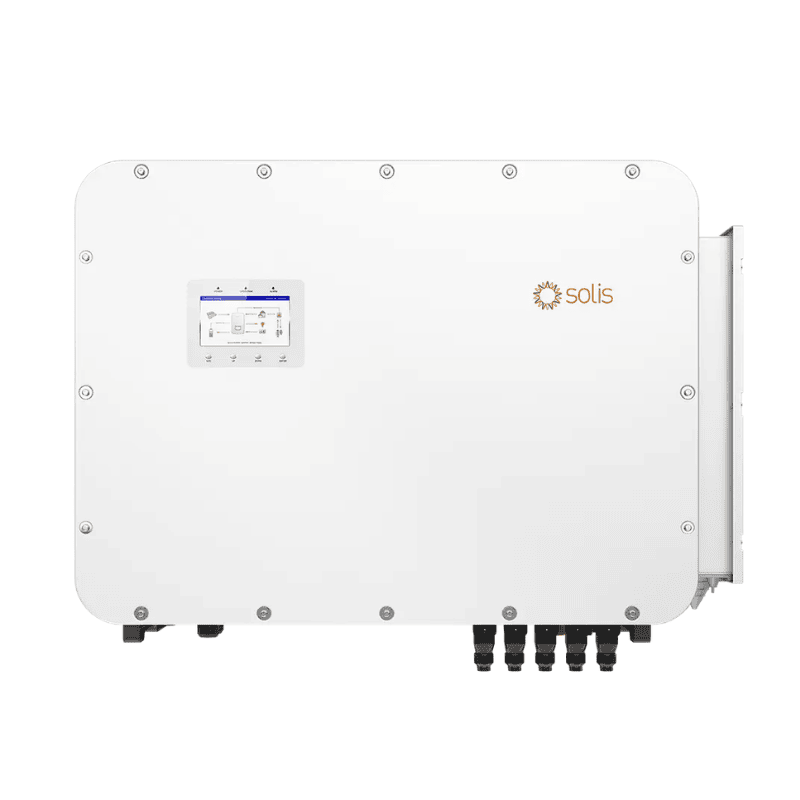

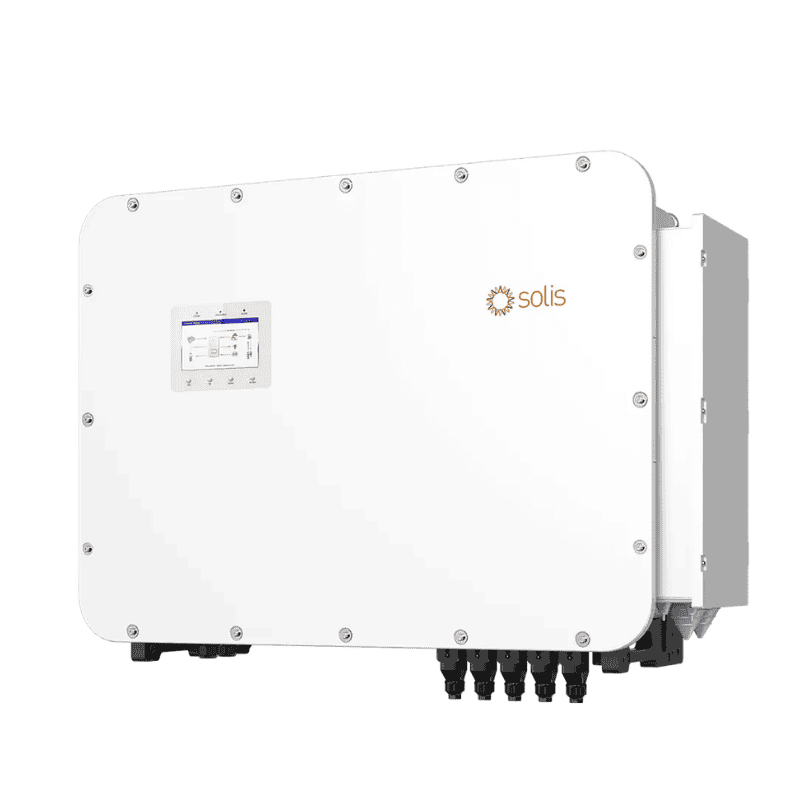

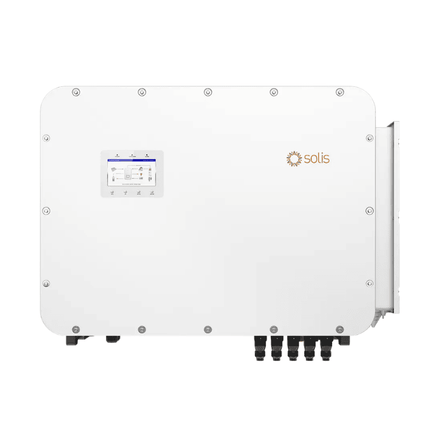

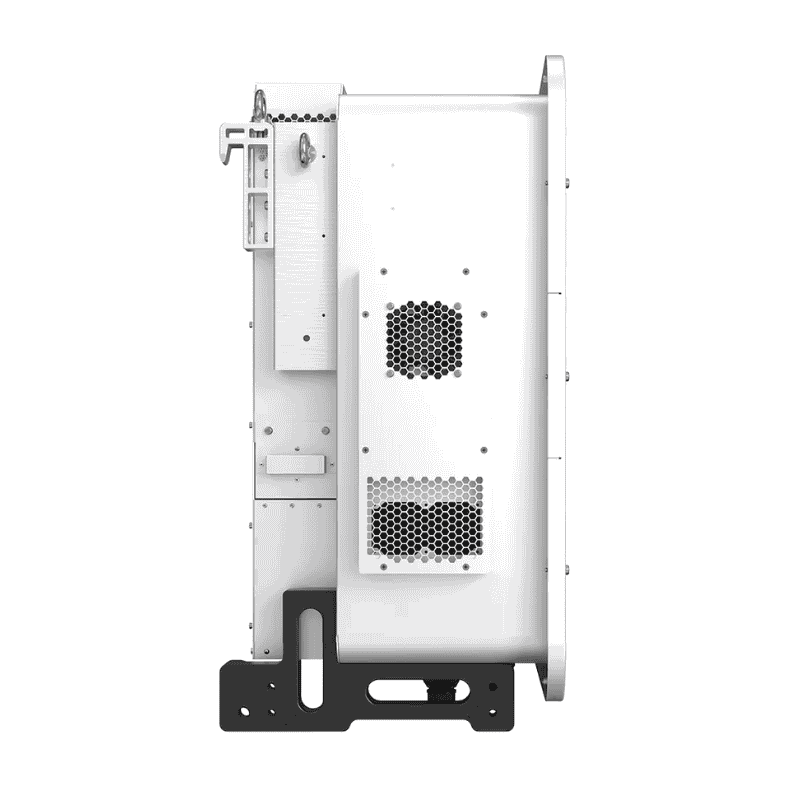

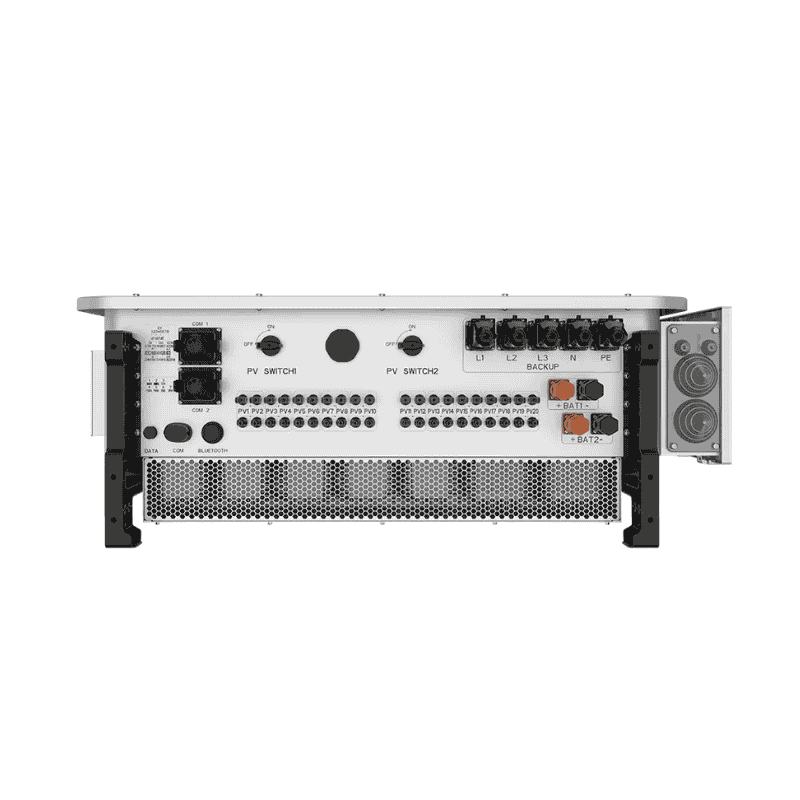

The SOLIS S6-EH3P125K10-NV-YD-H inverter is a state-of-the-art solution designed for commercial and industrial (C&I) applications, offering high performance, maximum flexibility and full integration with high-voltage storage systems.
Designed for high-power photovoltaic systems, this 125kW three-phase hybrid inverter enables efficient management of energy from panels, batteries and the grid, making it ideal for optimising consumption, reducing costs and ensuring continuity of supply.
With 10 independent MPPT trackers, support for DC oversizing of up to 200% and two independently controlled battery ports, Solis offers a scalable and highly efficient solution for complex industrial projects.
Advantages and benefits
✔ Ideal for industrial and commercial applications
✔ Maximises output with multiple MPPTs
✔ High flexibility in battery configuration
✔ Instant backup for critical loads
✔ Scalable – up to 6–10 units in parallel
✔ Supports peak shaving and consumption optimisation
✔ Compatible with generators and complex hybrid systems
| Category |
Specification |
| General information |
| Model |
S6-EH3P125K10-NV-YD-H |
| Inverter type |
Three-phase hybrid |
| Application |
Commercial & Industrial (C&I) |
| Protection rating |
IP66 |
| Operating temperature |
-25°C to +60°C |
| Dimensions |
1174 × 814 × 400 mm |
| Weight |
170 kg |
| PV data (DC input) |
| Maximum PV power |
250 kW |
| Maximum DC voltage |
1000 V |
| MPPT range |
150 – 950 V |
| Number of MPPT |
10 |
| Maximum current per MPPT |
21 A |
| Number of strings per MPPT |
2 |
| Battery data |
| Battery type |
Lithium-ion (High Voltage) |
| Battery voltage |
300 – 950 V |
| Maximum charging current |
100A + 100A |
| Max. discharge current |
100A + 100A |
| Number of battery ports |
2 |
| AC data (output) |
| Rated power |
125 kW |
| Output voltage |
3/N/PE, 230/400V |
| Maximum AC current |
189.9 A |
| Frequency |
50/60 Hz |
| Performance |
| Maximum efficiency |
97.6% |
| European efficiency |
96.9 |
| Functions and protections |
| Backup (EPS) |
Yes, <10 ms |
| Overload |
160% (short duration) |
| Smart functions |
Peak shaving, VPP, load management |
| Protections |
Overvoltage, short circuit, anti-islanding |
| Communication |
| Interfaces |
RS485, CAN, Ethernet |
| Optional |
WiFi / 4G |
✅Rated power: 125 kW three-phase
✅10 MPPT trackers for maximum flexibility
✅Supports PV over-sizing up to 200%
✅2 independent battery ports (100A + 100A)
✅On-grid & off-grid operation
✅Fast backup <10 ms
✅Compatible with HV batteries (300–950V)
✅IP66 protection – indoor/outdoor installation
