Description

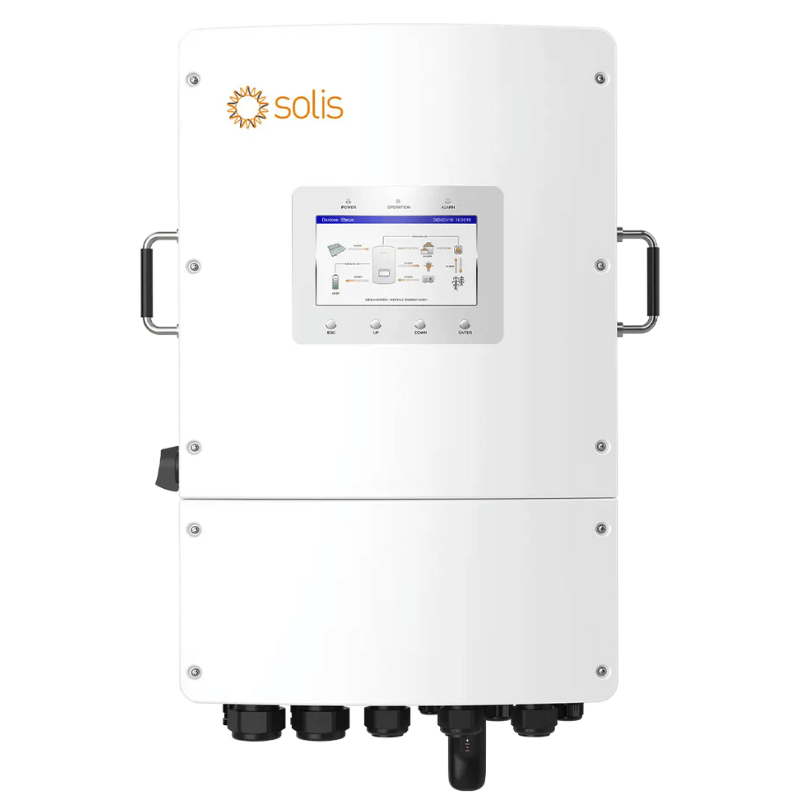

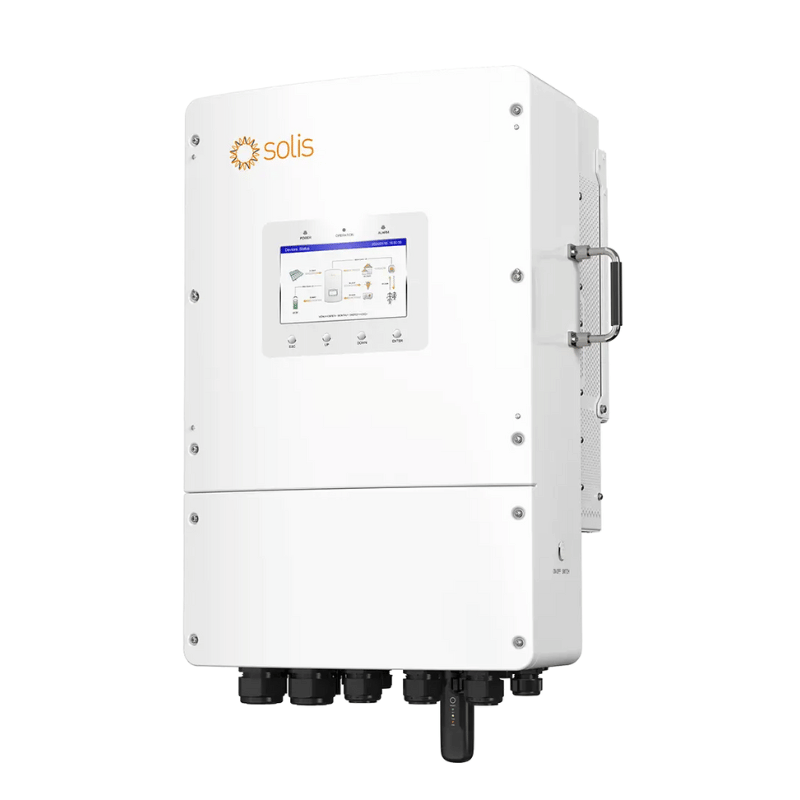

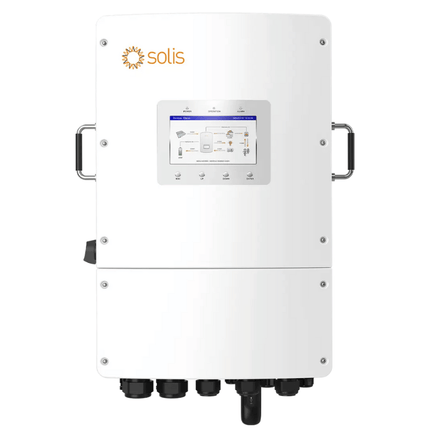

The SOLIS Hybrid 15kW inverter is an advanced solution for three-phase energy storage systems, offering top-tier power and efficiency. It combines the ability to manage critical loads and extend backup duration during power outages with exceptional flexibility in integration with high-power photovoltaic modules and 48V batteries. With an efficiency of up to 97.6%, this inverter optimises the use of generated and stored energy.
Technical specifications:
- Rated power: 15 kW
- Maximum input voltage: 1000 V
- Start-up voltage: 160 V
- Maximum input current: 40 A
- Overload capacity: 200% for 10 seconds
- Maximum battery charge/discharge current: 290 A
- Quiet operation: < 65 dB
- Nominal mains voltage: 380/400 V
- Switchover time for backup: < 10 ms
- Maximum efficiency: 97.6%
Advantages:
- Support for microgrids; multiple inverters can operate together for improved energy stability
- 200% overload capacity, ensuring continuous power supply to high loads
- Extended functionality with generators, ideal for emergencies or prolonged power cuts
- Advanced monitoring and control via mobile app, thanks to Bluetooth connectivity and multiple communication options (Wi-Fi, Ethernet, RS485)
- High protection against environmental conditions (IP66) and extreme temperatures (-40°C to +60°C)
