Description

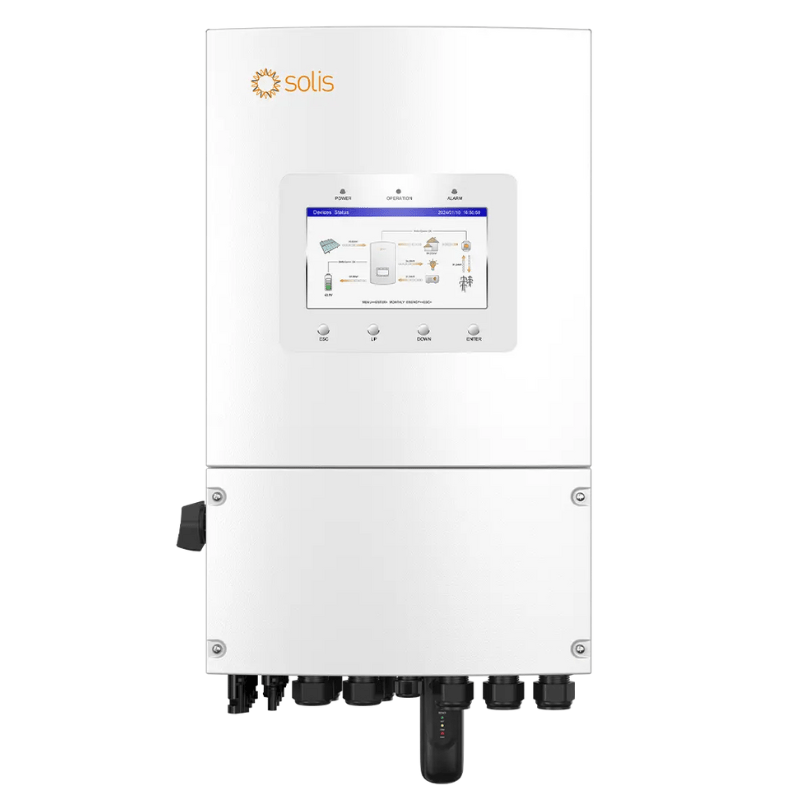

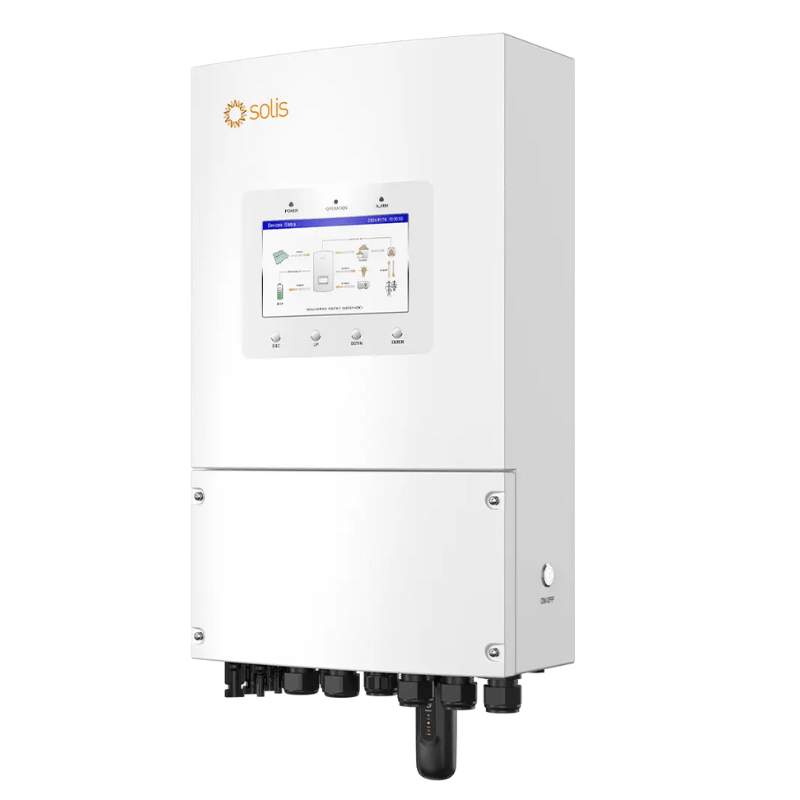

The SOLIS Hybrid 6kW 48V 2xMPPT S6-EH1P6K-L-PLUS inverter is the ideal solution for smart energy management in your home or business. This high-performance inverter enables the integration of solar energy, its storage and autonomous operation in the event of power cuts, offering optimal control over consumption and significant long-term savings.
Technical Specifications
-
Maximum AC output capacity: 6 kW
-
MPPT (Maximum Power Point Tracking): 2 inputs, to maximise solar energy conversion efficiency
-
Max. PV input voltage: 500V, with an operating range from 90V to 435V
-
Max. PV input current: 16A (2 inputs)
-
Battery charge and discharge power: 6 kW
-
Battery compatibility: Li-ion and Lead-Acid, with an operating voltage between 40-60V
-
Maximum efficiency: 96.2%
-
Communication: RS485, CAN, optional Wi-Fi, GPRS, LAN
-
Multiple protections: earth fault monitoring, reverse polarity protection, overload protection
-
Cooling: Natural convection and intelligent redundant ventilation
-
Protection rating: IP66 for outdoor durability
-
Switching time: <4ms for a rapid transition between mains and backup
Product Benefits
-
Generator compatibility: Extends runtime during prolonged power outages
-
Microgrid support: Can be used in conjunction with other inverters to form an autonomous microgrid
-
200% overload capacity: Allows temporary support for higher consumption demands
-
Smart monitoring and control: You can manage both critical and non-critical loads, optimising the use of stored energy
-
High reliability: Advanced technology ensures uninterrupted power supply even under weak grid conditions or generator fluctuations
