Description

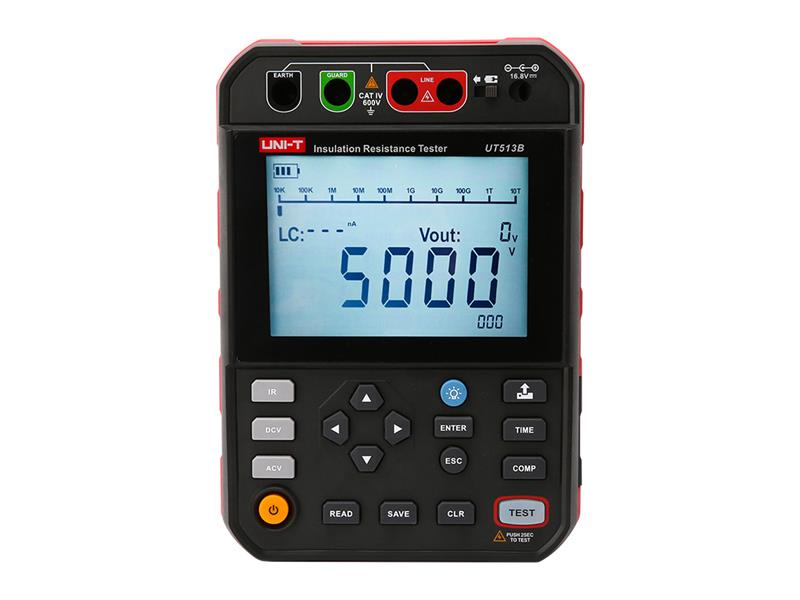

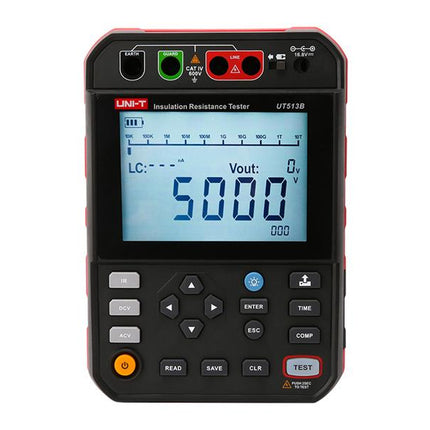

This product comes with a 3-year warranty. The UT513B 5 kV insulation resistance tester is a digital high-voltage insulation resistance tester designed with multiple voltage ranges, including 250 V, 500 V, 1000 V, 2500 V and 5000 V. It is an ideal measuring instrument for departments in the electrical power, telecommunications, meteorology, engine room, oil field, electromechanical installations and maintenance sectors, as well as industrial and mining enterprises.
Product parameters:
- Output voltage range: up to 5kV
- PI/DAR measurement
- Short-circuit current measurement
- Automatic display of leakage current
- Step voltage: 10% of the measurement range
- Range measurement
- timer
- high voltage alarm
- automatic discharge
- high voltage output alarm function
- data storage: 999 sets
- PC software analysis: via USB cable
- rechargeable lithium battery 14.8V, 5200mAh
- overvoltage category: CAT IV/6/00V
Parameters:
- Test voltage: 500V / 1000V / 1500V / 2500V / 5000V
- Capacitance test: NO
- Output voltage (nominal / voltage range:
250V / 250V, 205V, 205V
250V, 300V, 350V, 400V, 450V, 500V, 550V, 600V
1000V / 500V, 600V, 700V, 800V, 900V, 1000V, 1000V, 1000V, 500V, 1100V, 1100V, 1100V / 1250V, 1500V, 1750V, 2000V, 2250V, 2500V, 2750V, 3000V
5000V / 2500V, 3000V, 3500V, 4000V, output voltage
display accuracy: ± (10% of reading + 10V)
Output accuracy: ±(0%~20%)
- DC voltage: 30 ～ ～ ± 5 V DC/- ± 0% voltage: 30 ～ 750 V AC / 50Hz/60Hz ±(3%+5)
- Current: 0.01nA ～ 3.5mA
- Short-circuit current: approx. 3.5mA
- Polarisation index (PI): automatic (polarisation index
): display
- Timing measurement
- resistance comparison
- monitoring function: monitors the voltage of the measured object and the discharge status after testing
- Timing range: 0 s ～ 99 min 59 s
- storage function: 999 sets
- USB for connection to a PC -> NO
-> low battery indication
- Auto power off (approx. 15 minutes)
- Dimensions: 238 x 166 x 90.5 mm (W x H x D)
- Power supply: 14.8V, 5200 mAh lithium battery
- product colour: black + red
- product weight: 1800 g (battery)
Accessories:
- test leads (red, black, green: 1 of each) 3 pcs
- lithium battery charger
- lithium battery (14.8V, 5200mAh)
- USB cable 1 pc
- carrying strap
