Description

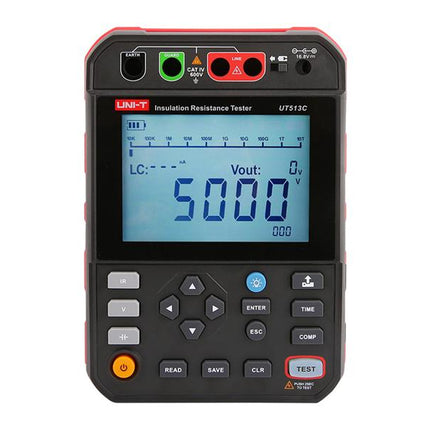

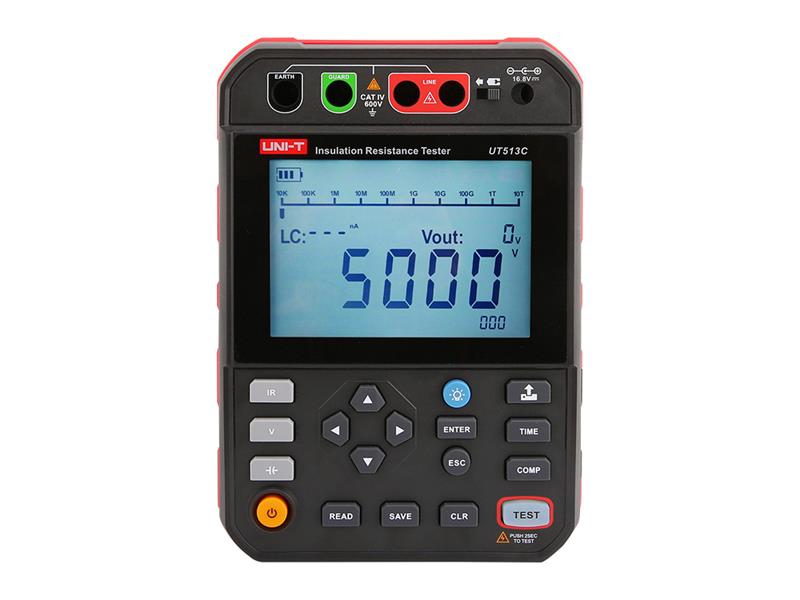

The UT513C 5 kV insulation resistance tester is a digital high-voltage insulation resistance tester designed with multiple voltage ranges, including 250 V, 500 V, 1000 V, 2500 V and 5000 V. It is an ideal measuring instrument for the electricity, telecommunications, meteorology, engine room, oil field, electromechanical installations and maintenance departments of industrial and mining enterprises.
Product parameters:
- Output voltage range: up to 5kV
- PI/DAR measurement
- Short-circuit current measurement
- Automatic display of leakage current
- Step voltage: 10% of the measurement range
->-
-/-
high voltage alarm
- automatic discharge
- high voltage output alarm function
- data storage: 999 sets
- PC software analysis: via USB cable
- rechargeable lithium battery 14.8V, 5200mAh
- Overvoltage category: CAT IV 600V
-
-
-
Test voltage: 500V / 1000V / 1500V / 2500V / 5000V
- Capacitance test: 0.01uF ～ 15.0uF
- output voltage (rated / voltage range:
250V, / 250V, / 270V
500V / 250V, 300V, 350V, 400V, 450V, 500V, 550V, 600V
1000V / 500V, 600V, 700V, 800V, 900V, 1000V, 1000V, 1000V 1200V
2500V / 1250V, 1500V, 1750V, 2000V, 2250V, 2500V, 2750V, 3000V
5000V / 2500V, 3000V, 3000V, 3000V, 3000V, 3000V 2000 V
Stepwise output voltage range (evaluation) Shift 10% of each range at a time and adjust the voltage range to 50%–120% of each range
display accuracy: ± (10% of reading + 10V)
Output accuracy: ±(0%～20%)
Voltage: >-0% / ±(3%+5)
- AC voltage: 30 ～ 750 V AC / 50Hz/60Hz ±(3%+5)
- Current: 0.01 nA ～ 5.0 mA
- Short-circuit current: approx. Dielectric absorption ratio (DAR): automatic display
- Timing measurement
- Resistance comparison
- Monitoring function: monitoring of the measured object’s voltage and discharge status after testing
- Timing range: 0 s ～ 99 m and 59 s
- storage function: 999 sets USB/Bluetooth for connection to PCs:
- Yes
- low battery indicator
- Auto-off (approx. 15 minutes)
- Dimensions: 238 x 166 x 90.5 mm (W x H x D)
- Power supply: 14.8V, 5200 mAh lithium battery
- product colour: black and red
- Product weight
including 180,000 battery)
Accessories:
- test leads (red, black, green: 1 of each) 3 pcs
- Lithium battery charger
- Lithium battery (14.8V, 5200mAh)
- USB cable 1 pc
- carrying strap UNI-1-BUC
