Description

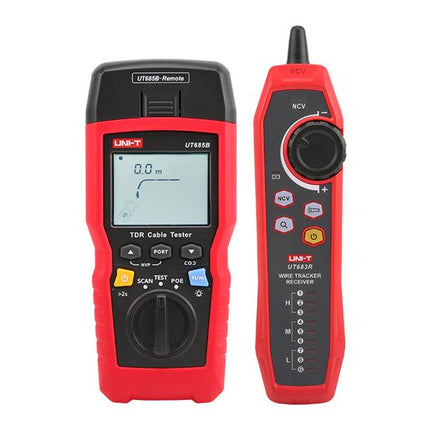

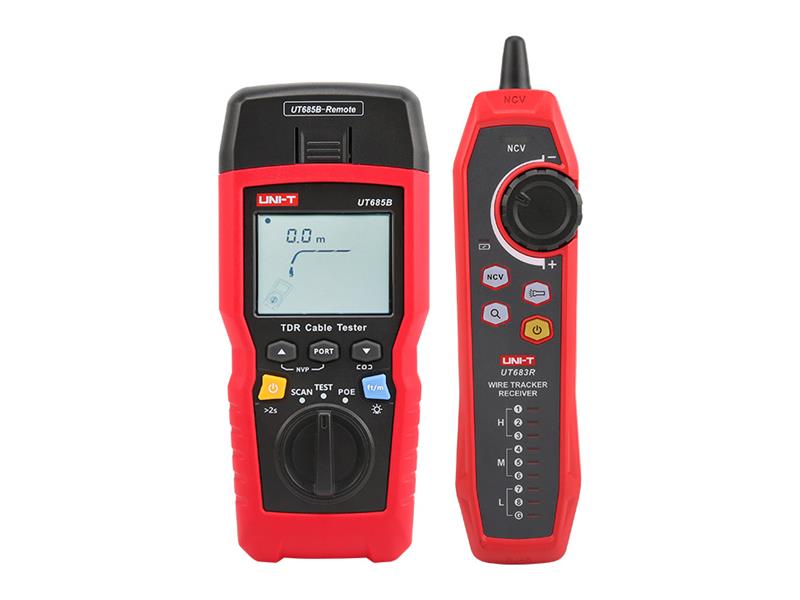

This product comes with a 3-year warranty. The UT683B Cable Tester Kit is a portable TDR cable tester, suitable for copper cables (CAT 5E, CAT 6, CAT 6A or CAT 8), which is used to detect and diagnose the connection status of twisted pair and coaxial cables, network pair services, short cables/detection, cabling, network pairs, cabling and faulty cables, etc. It can also be used to detect whether there is a PoE source (POE mode) in the network cabling and the PoE standard (802.3AF, 802.3AT, 802.3BT). A wiring diagram, cable length, location of the broken circuit and other information can be displayed simultaneously on the screen. The cable tester is characterised by accuracy, ease of use and a clear display, making it an ideal tool for network communications maintenance.
Product parameters:
- testing twisted pair network cabling
- cable length test
- TDR technology
- tests RJ11, RJ11 and RJ45 cable types
poxial
500m
- resolution 0.33 m
- 70V DC input protection
- 2.8-inch backlit LCD display
- graphical interface
Technical parameters:
Type of cable tested:
- Twisted pair cable.
twisted-pair cable.
FTP (aluminium foil-shielded cable);
3. SSTP (double-shielded network cable);
- coaxial cable: 50Ω, 75Ω, 93Ω
Cable length test:
- range: 500 m
- resolution: 0.3%, accuracy
-3 m
POE detection:
- POE power detection
- POE standard: 802.3AF
- POE standard: 802.3AT
- Ethernet port test
- Cable location test √
- 70VDC LCD input protection
- Automatic screen shutdown
-2. approx. 10 minutes
- Operating temperature: 0–45 °C
- Storage temperature: -20–60 °C
- Operating humidity: 20–75% relative humidity
- Storage humidity: 10–90% relative humidity
- Altitude ≤ 2000 mDR x 8 x 8 mm cable tester 39 mm
- Receiver dimensions: 197 mm x 48 mm x 34 mm
- cable tester weight: 360 g
- Receiver weight: 127 g
- Power supply: 4 x AAA alkaline batteries (LR03)
