Description

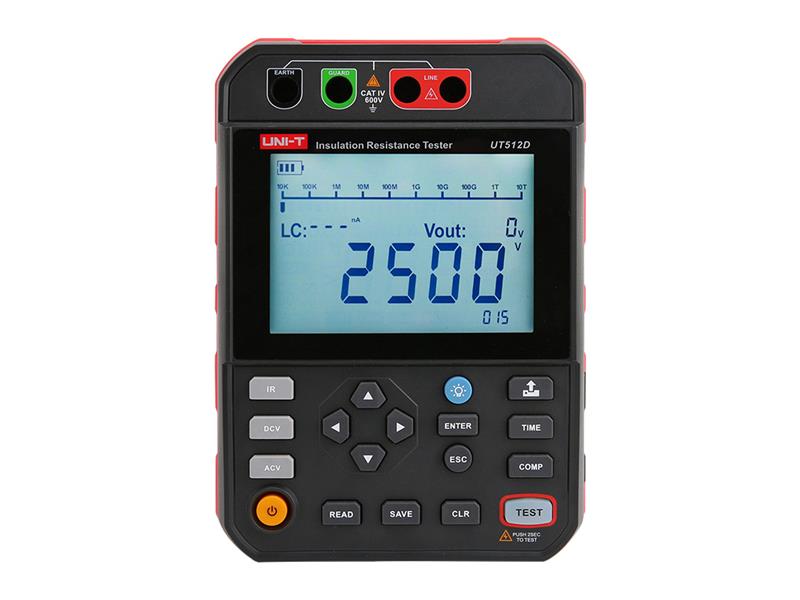

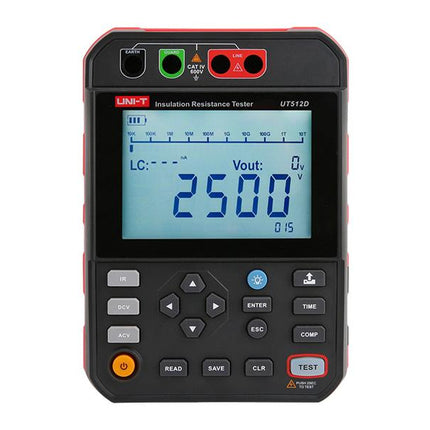

This product comes with a 3-year warranty. The UT512D 2.5 kV insulation resistance tester is a high-voltage digital insulation resistance tester, designed with multiple ranges, including 250 V, 500 V, 1000 V and 2500 V. It is an ideal instrument for the electrical power sector, the telecommunications sector, the oil industry, telecommunications workshops, the meteorological industry, and the electromechanical and power supply installation and maintenance departments in industrial and mining companies.
Product parameters:
- Output voltage range: Up to 2.5 kV
- PI/DAR measurement
- Short-circuit current measurement
- Automatic display of high-voltage leakage current
- 1/0% voltage range
- Alarm
- automatic discharge
- data storage: 999 sets
- PC software analysis: via USB cable
- Overvoltage category: CAT IV 600V
Technical parameters:
- test voltage: 500V / 1000V test capacity: ////12500V test:
NO
- Low resistance test: NO
- Output voltage (rated / voltage range:
250V / 350V, 275V, 300V
500V / 300V, 350V, 400V, 450V, 500V,
1000V / 500V, 600V, 700V, 800V, 900V, 1000V, 1100V, 1200V
2500V / 1250V, 1500V, 1750V, 2000V, output voltage,
voltage range (evaluation) Shift 10% of each range each time and adjust the voltage range to 50% ~ 120% of each range
display accuracy: ± (10% of reading + 10V)
output accuracy: ±(0%~20%)
- DC voltage: 30 ～ V+/10 ±(V+10 V) AC voltage: 30 ～ 750 V AC / 50Hz/60Hz ±(3%+5)
- Current: 0.01 nA ～ 3.5 mA
- Short-circuit current: approx. 3.5 mA
- Polarisation index (PI): automatic (polarisation index)
p. display
- Timing measurement
- resistance comparison
- Monitoring function: monitors the voltage of the measured object and the discharge status after testing
- Timing range: 0 s ～ 99 m and 59 s
- storage function: 999 sets
- USB for automatic connection to a computer
-/low battery indicator
-/> power off
- Dimensions: 238 x 166 x 90.5 mm (W x H x D)
- Power supply: 8 x 1.5V alkaline batteries (LR14)
- product colour: black + red
- product weight: 1800 g (including batteries)
, test leads:
-, black, black for each) 3 pcs
- USB cable 1 pc
- carrying strap 1 pc
Manufacturer: UNI-TREND
