Description

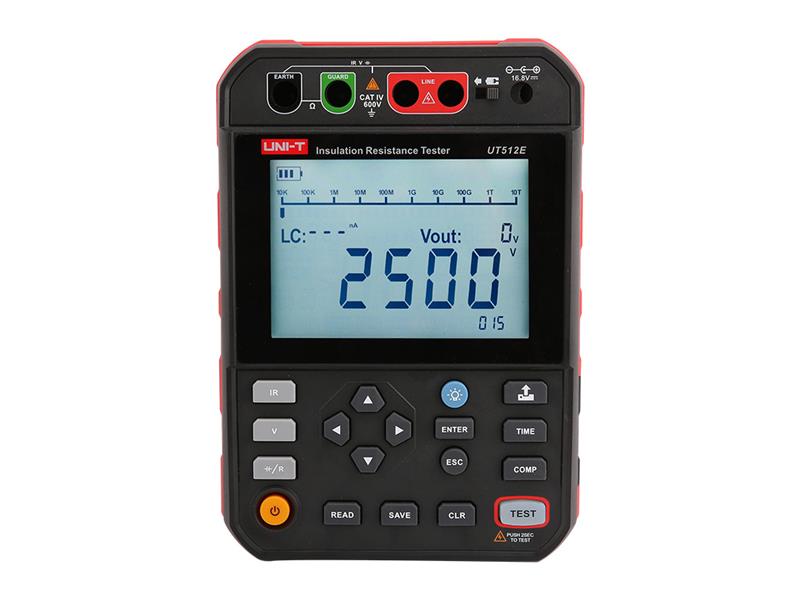

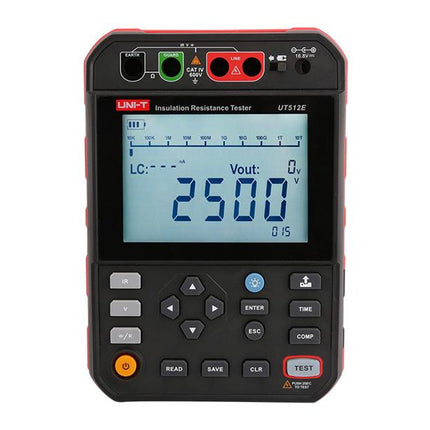

This product comes with a 3-year warranty. The UT512E 2.5 kV insulation resistance tester is a high-voltage digital insulation resistance tester, designed with multiple voltage ranges, including 250 V, 500 V, 1000 V and 2500 V. It is an ideal measuring instrument for the electrical power, telecommunications, meteorology, machine shop, oilfield, electromechanical installations, and maintenance and power supply departments of industrial and mining enterprises. leakage current
- Step voltage: 10% of the range
- high voltage alarm
- automatic discharge
- Data storage: 999 sets
- PC software analysis: via USB cable
- Overvoltage category: CAT IV 600V
Technical/test parameters: //>-0 1000V / 1500V / 2500V
- capacitance test: 0.01uF ～ 2.0uF / ±（15%+3）
- Low resistance test: 0.1Ω ～ 600Ω / ±（2%–+10% of voltage）/rated voltage
250V / 350V, 275V, 300V
500V / 300V, 350V, 400V, 450V, 500V, 550V, 600V
1000V / 500V, 800V, 800V, 800V, 900V, 1000V, 1100V, 1200V
2500V / 1250V, 1500V, 1750V, 2000V, 2250V, 2500V
Output voltage step voltage range (rating) Set the voltage range to 0% each time and adjust each voltage range from 0% to 50%–120% of that range
display accuracy: ± (10% of reading + 10V)
Output accuracy: ±(0%–20%)
- DC voltage: 30 ～ 1000 V DC / ±(3%+5)
- AC voltage: 70 ～: 50Hz/60Hz ±(3%+5)
- Current: 0.01nA ～ 5mA
- Short-circuit current: approx. 5mA
- Polarisation index (PI): automatic display
- Dielectric absorption ratio (DAR) monitoring: automatic measurement
/>
- Resistance comparison function: monitors the voltage of the measured object and the discharge status after testing
- Timing range: 0 s ～ 99 m and 59 s
- Storage function: 999 sets
- USB for connection to a PC
- low battery indicator
- Auto power off
- Dimensions: 163 x 9 mm (L x W x D)
- power supply: 14.8V, 5200 mAh lithium battery
- Product colour: black and red
- product weight: 1800 g (including battery)
Accessories:
- Test cable (red, black, green): 1 lithium battery
- 1 charging unit
(Output: 16.8 V DC, 2 A)
- Lithium battery (14.8 V, 5200 mAh)
- 1 USB cable
- Carrying strap 1 pc
Manufacturer: UNI-TREND
