Description
This product comes with a 3-year warranty.

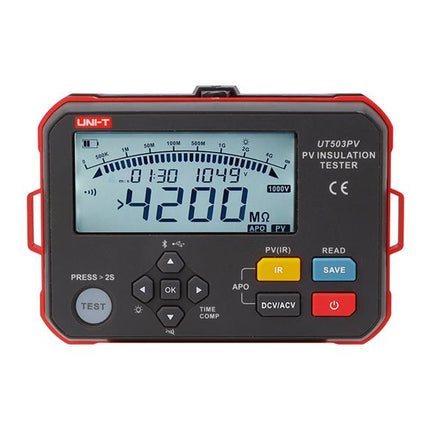

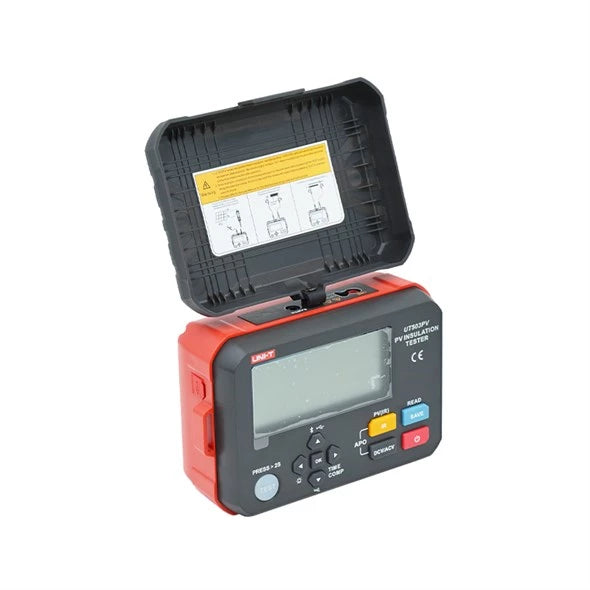

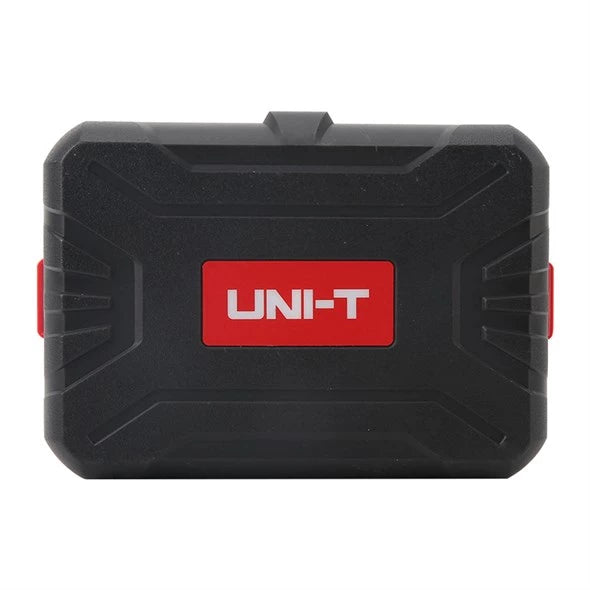

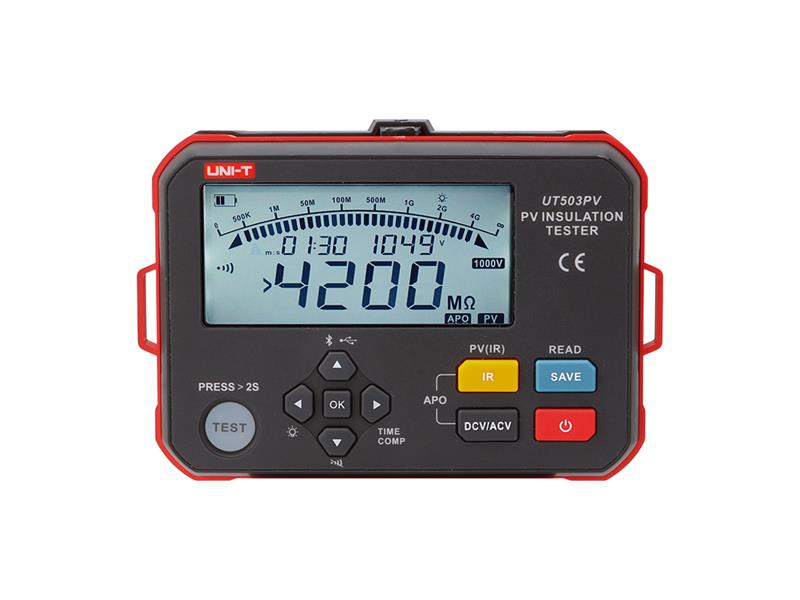

The UT503PV digital insulation resistance tester can be used to measure insulation resistance with a photovoltaic power supply (maximum: 1000V DC) and conventional insulation resistance (without power supply), and to automatically identify AC/DC voltage. It has several functions, including: measuring photovoltaic insulation resistance without a solar panel during a power cut/short circuit or at night, voltage grading, Bluetooth transmission, automatic discharge, high-voltage warning, remote-controlled test lead operation, etc. Parameters:
- High output voltage: DC 1000 V
- UTD test under voltage: DC 1000 V
- Insulation resistance (PV+IR): 4000 MΩ
- Voltage measurement: 1000 V DC & 600 V AC
- Automatic overload stage measurement
- Time
- Comparison function (IR)
- high voltage alarm
- Data communication: USB cable + Bluetooth app
- lithium battery
- analogue bar graph
- high-quality backlit display
- portable and convenient
- certification: CE, cETLus
: technical parameter/photovoltaic
resistance (PV)
- Conventional insulation resistance measurement
- AC/DC voltage testing (VDC/VAC)
- Insulation resistance range: 0.125 MΩ – 4000 MΩ
- rated voltage for conventional output (conventional insulation resistance: 4 positions, 50 V, 120 V, 120 V, 120 V) V
- rated voltage for photovoltaic power (photovoltaic insulation resistance: 2 positions): 500 V, 1000 V
- short-circuit current: <1.5 mA
- step in each range: 10% of the rated voltage
- specifications for conventional insulation resistance and photovoltaic (PV) insulation resistance measurement (PV:/>
see data sheet
) comparative insulation resistance measurement (COMP)
- timed insulation resistance measurement (TIME)
- external voltage detection function, which allows automatic monitoring of the voltage of the object under test
- designed with a timer to automatically record the test time
- automatic discharge and high-voltage warning for analogue resistance warning
Results
- Manual/automatic shutdown
- Capable of storing 1,000 data sets
- data save/delete function
- Data logging function
- Bluetooth app
- manual / automatic backlight
- mute function
- high-resolution segmented LCD display
- battery: high-capacity
a6: 161 x 117.3 x 63 mm
- Weight: 0.5 kg

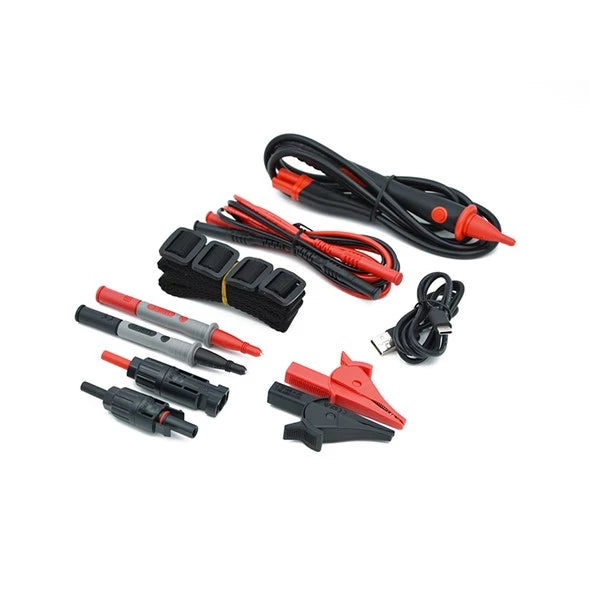

Accessories:
- test leads
- test probes with torch:
- alligator clips:
- MC4 connectors: 1 pair
- battery transport cable
-
Type C battery transport cable

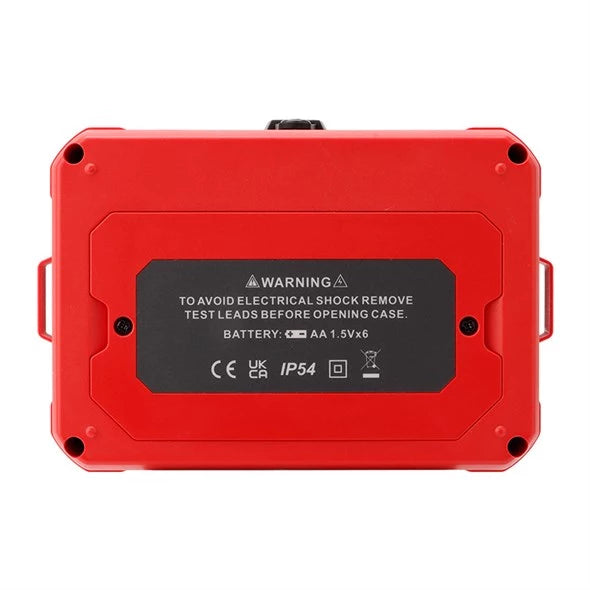

AA: 6 pcs
