Description

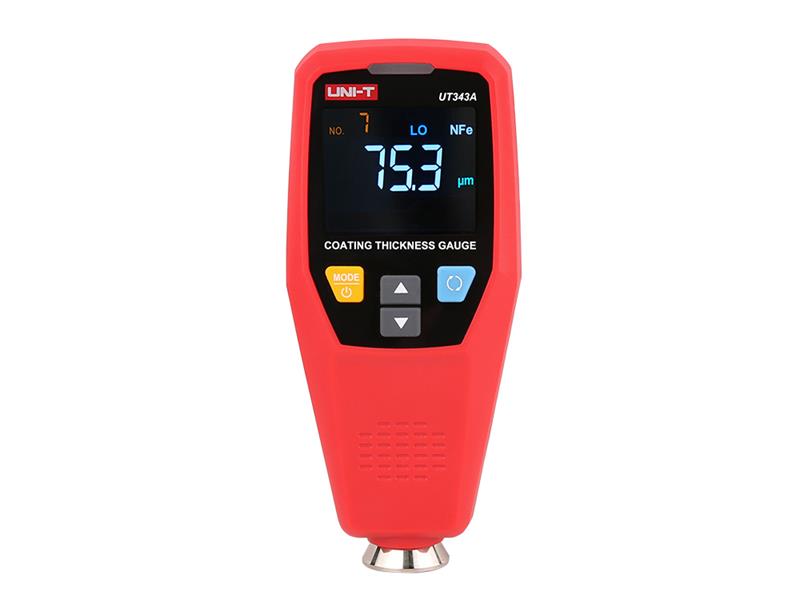

This product comes with a 3-year warranty. The UT343A is a high-precision paint thickness gauge capable of measuring paint thickness on ferrous (ferromagnetic) and non-ferrous (paramagnetic and diamagnetic) metals.
Electrically non-conductive or conductive coatings on ferromagnetic metals, such as steel, can be measured through galvanised or electromagnetic steel (e.g. galvanised or electro-galvanised steel). induction (the instrument setting symbol is Fe), which measures the paint thickness based on the amount of magnetic flux flowing from the sensor through the non-ferromagnetic paint onto the ferromagnetic substrate.
You can measure the thickness of non-conductive paints on non-magnetic metallic materials, such as aluminium or copper, using the Eddy current measurement method (instrument setting symbol NFe). The principle involves measuring the differences in eddy currents generated by the instrument in a non-magnetic metallic substrate.
This device features high-precision, non-destructive paint thickness measurement, single-point and multi-point averaging algorithms, and rapid measurement. Automatic detection of substrate type, wide thickness measurement range from 0 to 1850 μm, automatic conversion of units from μm to mils. Ability to store up to 199 measurement groups in memory. Simple multi-point calibration using the included calibrated samples.
Widely used in metal production and processing, aviation, marine engineering, rail transport, scientific research, quality control and non-destructive testing in the automotive industry and other industries in laboratories, workshops and outdoor areas.
Product parameters:
Paint measurement range from 170 μm thickness
- Measurement accuracy: ± (3% of the measured value + 1 μm)
- resolution: 0.1 μm
- operating modes: automatic substrate detection, Fe, NFe
- Measurement type: single or continuous
- statistical measurement: MAX / MIN /-> automatic setting of screen value
average values on screen
-> limits: yes, in the range 0 to 1750 μm, including indication of limit exceedance
- built-in memory: yes, for 199 measurement groups
- Switchable buzzer: yes
Technical parameters:
- measurement frequency:
- 5 seconds ref. sensor for electromagnetic induction and eddy currents
- Paint thickness measurement range: 0 to 1750 μm
- measurement accuracy: ± (3% of the measured value + 1 μm)
- resolution: 0.1 μm
- Probe contact force: 0.3 to 1.5 N
- Data display type: automatic switch-off
- Yes, after 5 minutes of inactivity
- impact resistance: the device withstands a fall from 1 metre
- power supply: 2 x AAA alkaline batteries
- Standby power consumption: ≤ 5 µA
- current consumption in operation: ≤80mA, at warning ± 3 V
-3. 0.2 V, the battery symbol will start flashing
- operating environment: 0 °C to 40 °C, ≤80% relative humidity
- Storage environment: -20 °C to 60 °C, ≤80% relative humidity
- Dimensions: 117 x 53 x 37 mm
weight:
including 11g certification: CE, UKCA

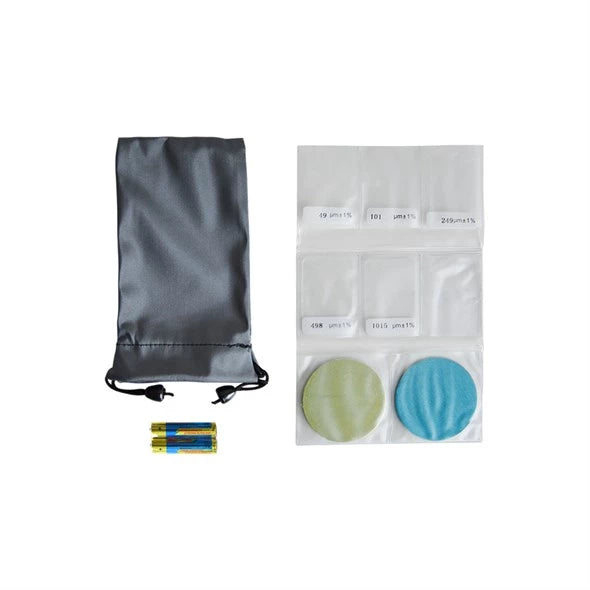

Contents of each pack:
- UT343A device: 1 pc
- Sensor cover: 1 pc
- Standard sheets with calibrated paint thicknesses: 1 set (5 pcs)
- Iron calibration base: 1 pc
- Non-ferrous substrate: 1 pc
- 1 pc. AAA alkaline battery: 2 pcs
- user manual: 1 pc
