Description
This product comes with a 3-year warranty.

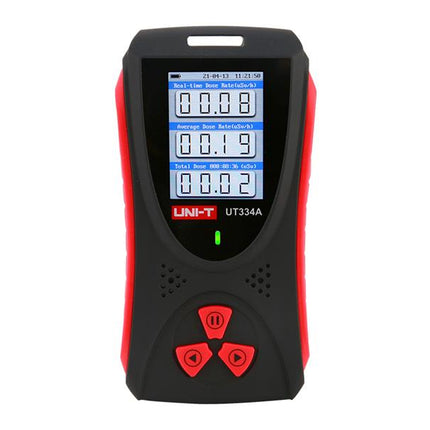

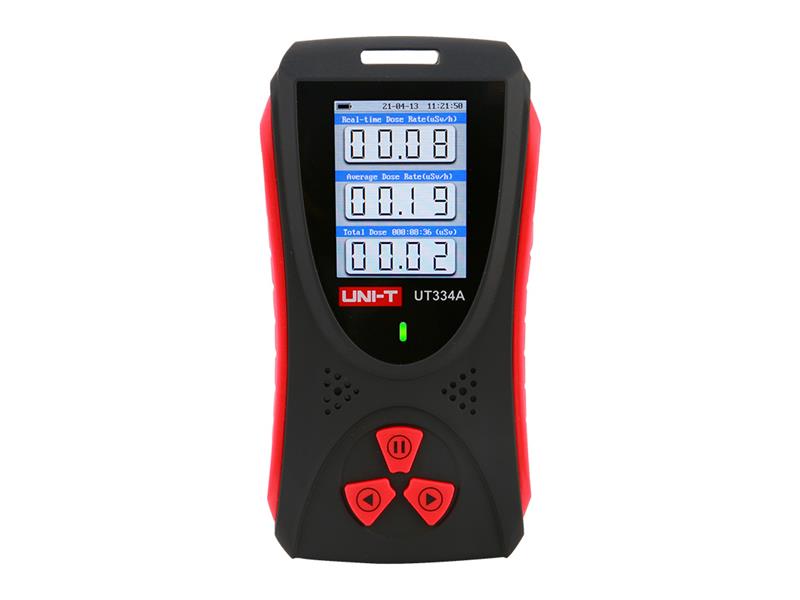

The UT334A Geiger counter is a compact detector used for monitoring beta (β), gamma (γ) and X-rays. The device is highly sensitive and accurate. It is equipped with a high-performance microprocessor and a 2.0-inch TFT colour screen, making it convenient to use. The device is equipped with audible and visual alarms. The alarm threshold values can be set; when these thresholds are reached, the counter triggers an alarm. The main specifications comply with international standards.
The UT334A is suitable for use in radiation processing enterprises, healthcare and epidemic prevention, radiotherapy, nuclear laboratories, nuclear power stations, building materials inspection, petrochemicals, geological exploration, steel scrap production, industrial non-destructive testing and other environments where ionising radiation is present, to monitor radiation dose and protect people.
>
Parameters:
- Portable device
- 2.0” TFT colour display
- Highly sensitive GM detector
- combined beta (β), gamma (γ) and X-ray radiation
- real-time display, average and cumulative dose
- Audible and visual alarms, monitoring with two adjustable alarm modes
Storage
- calibration function
- option to display the time since the start of the current measurement
- measurement recording time (00-999h)
- Over-limit alarm
- saving of the last ten measurement records
- the device can operate the stopwatch even when switched off
- battery charge status display
- warning: (display: ‘Device damaged’)
- if the radiation dose exceeds the threshold set in standby mode, the device will automatically trigger an alarm and enter the measurement interface.
Technical parameters:
- detected radiation: X, β and γ
- sensor: GM tube:
05u:
05u -50mSv
- Accuracy: -17% ~ +25% based on 137Csγ
- Type-C charging interface
- Alarm response time td: <10s
- alarm threshold accuracy: -17% ~ +25%
- Alarm modes: audio and visual: 7 alarms Li-ion: 3. 1800 mAh battery
- Battery life: approx. 20 days (continuous measurement, particle sound off)
- Product colour: red and grey
- net product weight: 127 g
- Product dimensions: 120 x 65 x 25 mm

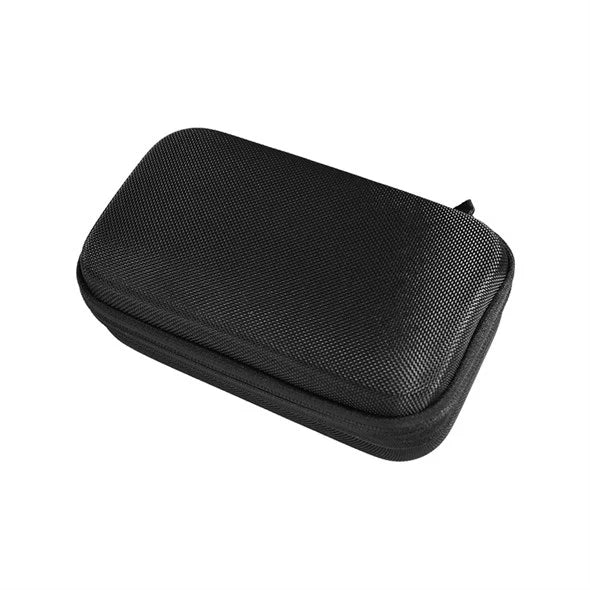

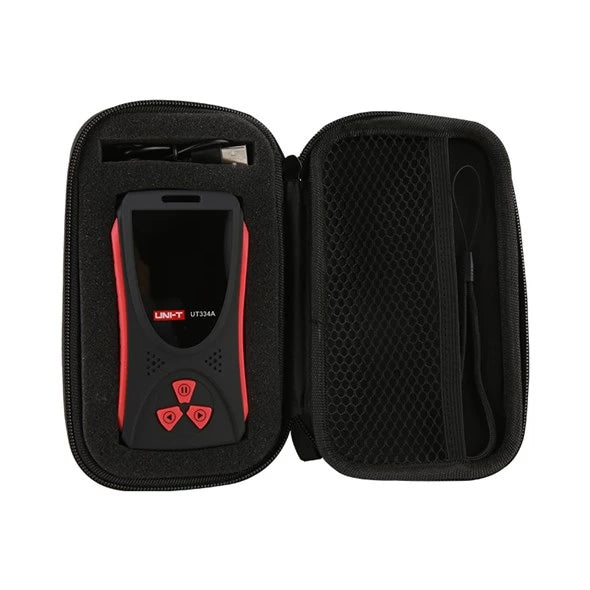

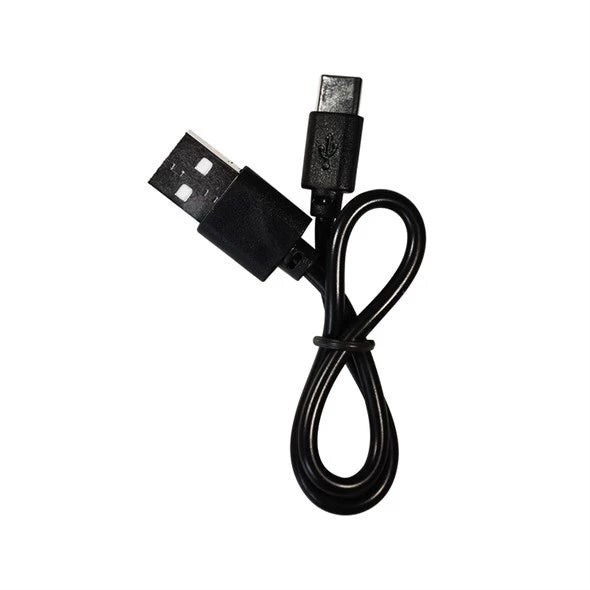

- standard accessories: USB cable, manual, standard carrying case
Box: 10 pcs
- Weight (per box): 3.7 kg
