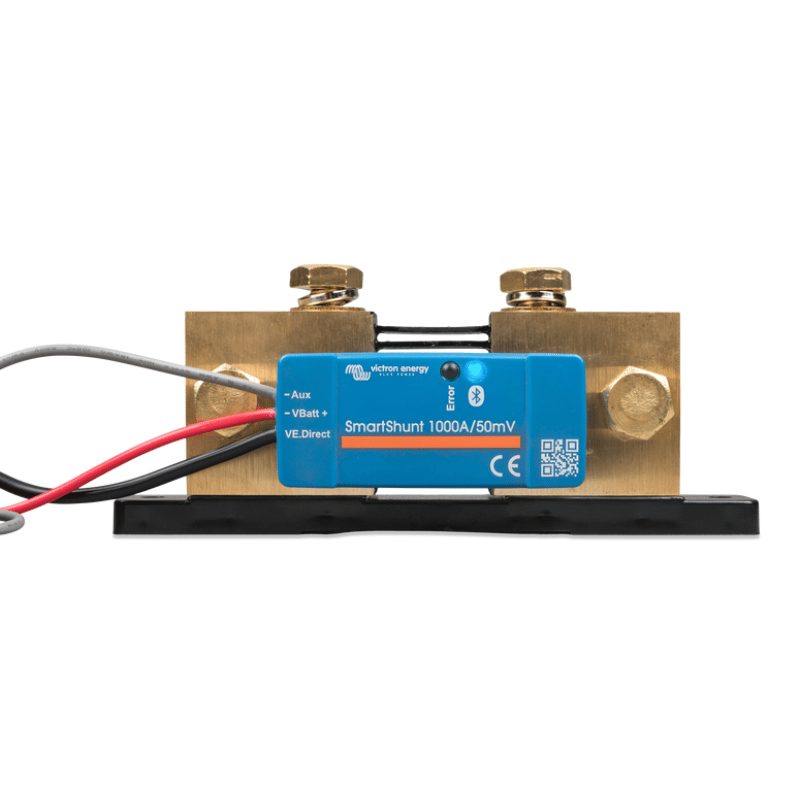

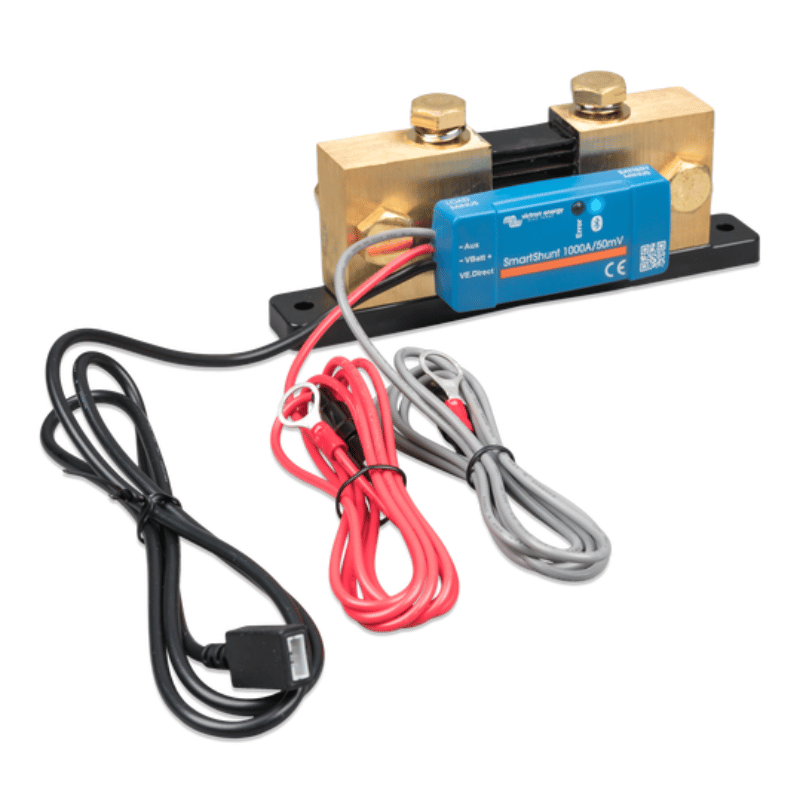

SmartShunt 1000A/50mV IP65, Victron Energy

Description

The SmartShunt IP65 is a multifunctional battery monitor, but without a display. Your phone acts as the display.
The SmartShunt IP65 is waterproof and is available in 500 A, 1000 A or 2000 A versions.

Technical specifications:
- voltage range: 6.5–70 VDC;
- input voltage: 6.5–70 VDC;
- battery capacity for which it can be used: 1–9999 Ah;
- operating temperature range: -40°C – 50°C;
- monitors the voltage and temperature of the auxiliary battery;
- Measurement temperature range: -20°C – 50°C;
- VE.Direct communication port;
- dimensions (H x W x D): 68 x 168 x 75 mm;
- protection rating: IP65;

SmartShunt 1000A/50mV IP65, Victron Energy

Product form

The SmartShunt IP65 is a multifunctional battery monitor, but without a display. Your phone acts as the display. The SmartShunt... Read more

10 - 20 days  Contact us at contact@solartech.eu for more info regarding the inventory of this product.

€175,46 Incl. VAT

SKU: SHU065210050

    • Guaranteed secure & safe checkout.

      <p>Guaranteed <b>secure & safe</b> checkout.</p>
    • 3 - 10 Days Delivery 🚚
    • Sales & Technical Support ⚙️

    Description

    The SmartShunt IP65 is a multifunctional battery monitor, but without a display. Your phone acts as the display.
    The SmartShunt IP65 is waterproof and is available in 500 A, 1000 A or 2000 A versions.

    Technical specifications:
    - voltage range: 6.5–70 VDC;
    - input voltage: 6.5–70 VDC;
    - battery capacity for which it can be used: 1–9999 Ah;
    - operating temperature range: -40°C – 50°C;
    - monitors the voltage and temperature of the auxiliary battery;
    - Measurement temperature range: -20°C – 50°C;
    - VE.Direct communication port;
    - dimensions (H x W x D): 68 x 168 x 75 mm;
    - protection rating: IP65;
