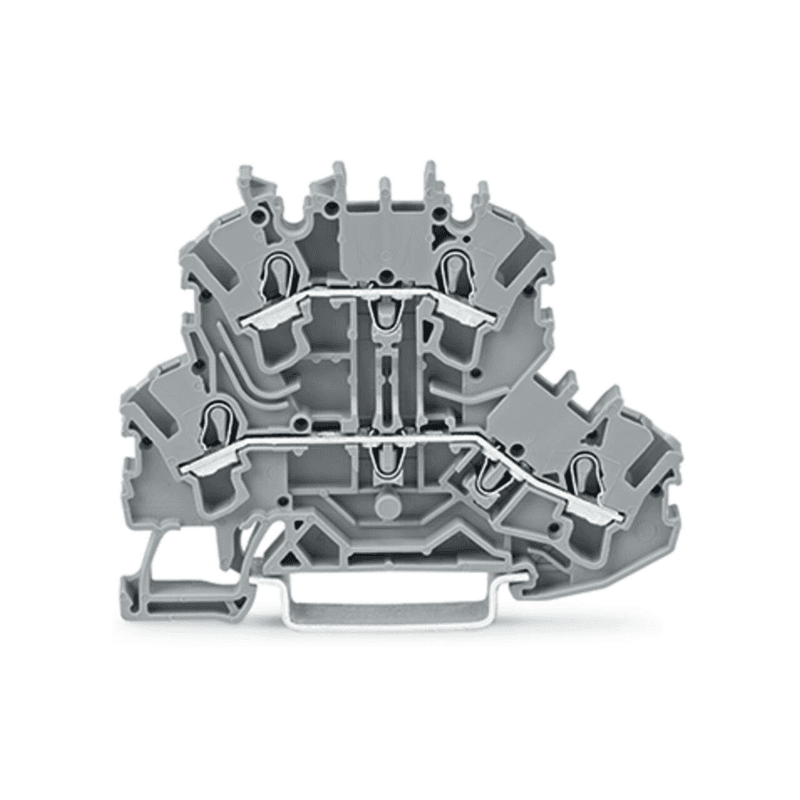

The Wago 2002-2201 is a 4-conductor double earth terminal block from the TOPJOB® S series, designed to provide a reliable earth connection in industrial and commercial applications. This product utilises PUSH-IN CAGE CLAMP® technology, which simplifies installation and ensures a secure and efficient connection.
Technical specifications:
-
Number of conductors: 4
-
Mounting: 35 mm DIN rail (standard)
-
Conductor connection: PUSH-IN CAGE CLAMP® for quick and easy insertion of conductors
-
Material: High-temperature and flame-resistant polyamide
-
Rated current: 24 A
-
Rated voltage: 500 V
-
Conductor cross-section: 0.25 - 2.5 mm²
-
Colour: grey
Product advantages:
-
Quick-connect technology: PUSH-IN CAGE CLAMP® allows direct insertion of rigid or flexible conductors with pins, without the need for special tools, reducing installation time.
-
Secure earth connection: Provides a secure and reliable connection to the DIN rail, ensuring protection of circuits against overvoltage and other electrical hazards.
-
Compact design: Its compact shape saves space in electrical panels, facilitating efficient cable management.
-
Increased durability: High-quality materials and robust design ensure long-lasting performance in industrial conditions.
Applications:
- Distribution boards and control panels
- Earthing systems in industrial automation
- Earthing systems in commercial applications
The Wago 2002-2201 earthing terminal block is a safe and reliable solution for earthing connections, ensuring the protection of electrical equipment and installations.
