Description

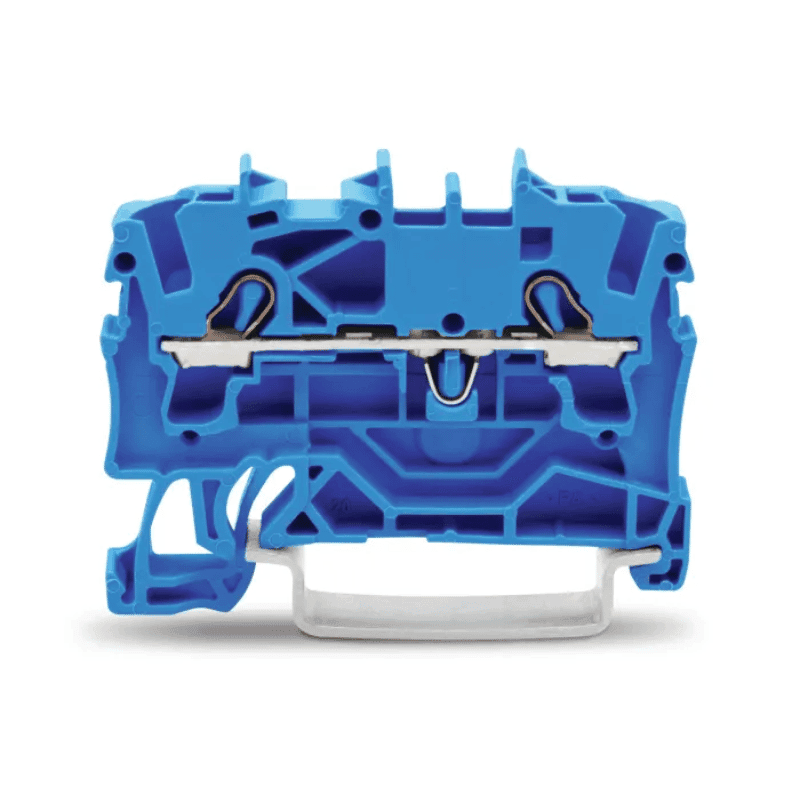

The Wago 2002-1204 is a 2-conductor feed-through terminal block from the TOPJOB® S series, specifically designed for DIN rail mounting. It utilises spring-clamp connection technology, offering a quick, secure and tool-free solution for making electrical connections. With a compact and robust design, this terminal block is ideal for industrial and commercial applications where reliable and efficient electrical connections are required.
Technical specifications:
-
Number of conductors: 2
-
Connection type: Spring-loaded terminal
- Rated current: 24A
-
Rated voltage: 800 V
- Colour: Blue
-
Dimensions: 63.1 mm x 6.2 mm x 46.1 mm
-
Cable capacity: 0.5 mm² to 2.5 mm² (24-8 AWG)
-
Mounting method: On DIN rail (35 mm)
-
Housing material: Polyamide, high-temperature resistant and flame-retardant (UL94 V0)
-
Certifications: IEC/EN 60947-7-1, UL 1059, CSA C22.2 No. 158
Product advantages:
-
Quick and secure connection: Spring-loaded terminal technology allows cables to be connected without tools, reducing installation time and improving connection reliability.
-
High compatibility: Suitable for various applications, compatible with cables from 0.5 mm² to 2.5 mm².
-
Compact design: The terminal block takes up little space on the DIN rail, allowing for optimised space in electrical panels.
-
Enhanced safety: Certified for high voltages and currents, providing additional protection in critical applications.
-
Durability: The high-quality housing material and robust design ensure a long service life and safe use in harsh industrial environments.
Applications:
- Electrical power distribution and control in industrial and commercial panels
- Fast and reliable connections in automation systems
- Applications requiring a compact and efficient solution for cable connection
The Wago 2002-1204 terminal block from the TOPJOB® S series is ideal for professionals seeking a reliable, safe and efficient solution for cable connections in a wide range of applications, from industrial automation to complex electrical systems.
