The VE.Direct port can be connected to:
- A computer (requires a VE.Direct to USB cable)
- Apple and Android smartphones, tablets, MacBooks and other devices (requires VE.Direct Dual Bluetooth)
Fully configurable:
- Triggering and resetting low battery voltage alarms
- Battery voltage cut-off and restart levels
- Dynamic disconnection: load-dependent cut-off level
- Output voltage: 210–245 V
- Frequency: 50 Hz or 60 Hz
- ECO mode on/off and ECO sensitivity level
Monitoring:
- Input and output voltage
- Charging and alarms

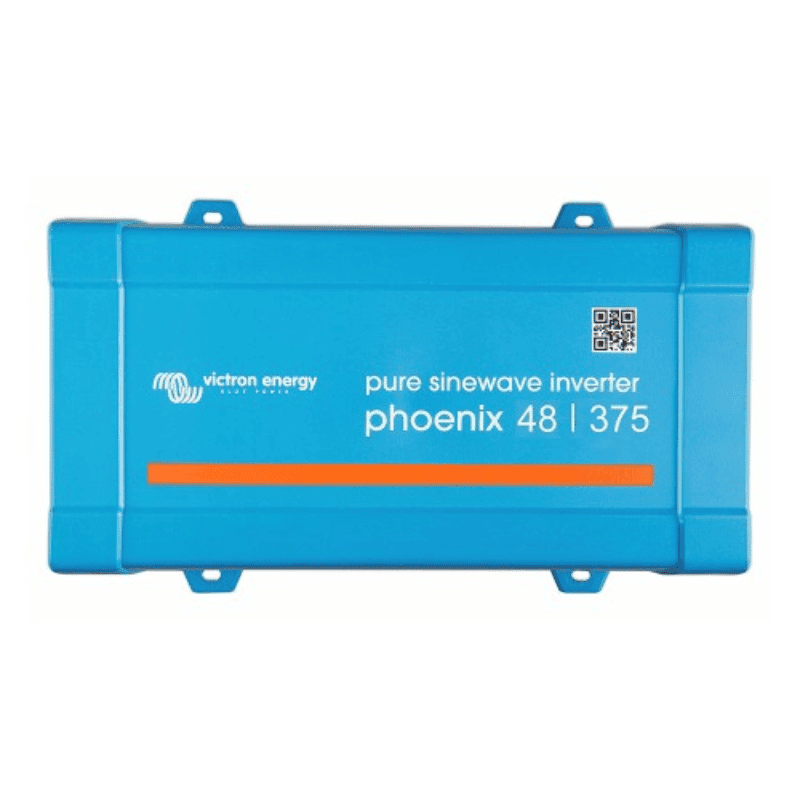

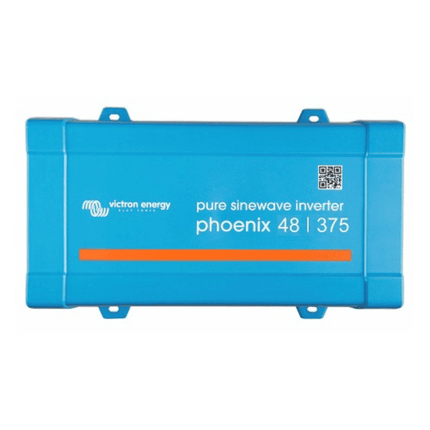

Phoenix inverters are part of a range designed for high-quality services, based on advanced SinusMAX photovoltaic technology, with the unique feature of starting at full load.
Superior technology – SinusMAX
The Phoenix range of inverters has been designed for professional applications and is suitable for a variety of uses. The design focuses on achieving a sinusoidal output with maximum efficiency, without compromising performance.
Key features:
-
HF hybrid technology: a compact, lightweight, reliable product capable of supplying power to any type of load.
-
Full-load start-up: ideal for demanding loads such as computers or power tools.
VE.Direct communication port: can be connected to computers, smartphones, tablets and other devices, offering flexibility and ease of use.
Proven reliability: toroidal transformer technology provides protection against short circuits, overheating and overloads, ensuring long-term reliability.
ECO mode: the inverter enters standby mode when the load drops below a preset value, saving energy. If the load exceeds a preset level, it restarts automatically.
On/off remote control: a remote control can be connected to a two-pin connector, available on all models.
Automatic load transfer to another AC source: for low-power models, we recommend the Filax automatic transfer switch, which ensures a very short transfer time (<20 ms), so that electronic equipment will continue to operate without interruption.
Technical specifications:
-
Dimensions: 86 x 165 x 260 mm
-
Weight: 3 kg
-
Power output at 25°C: 375VA
-
Power output at 25°C/40°C: 300/260W
-
Peak power: 700W
-
Output voltage: 230VAC ± 3%, 50Hz or 60Hz ± 0.1%
-
Input voltage range: 36.8–62.0V
-
Low battery voltage alarm: 43.6V
-
Battery power cut-off: 37.2V
-
Self-regeneration battery voltage: 56.0V
-
Maximum efficiency: 90%
-
No-load power: 8.5W
-
Operating temperature range: -40°C to +65°C (fan-cooled)
-
Humidity: max. 95% (non-condensing)
-
Standards: EN-IEC 60335-1, EN-IEC 62109-1, UL 458, EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
