The VE.Direct port can be connected to:
- A computer (VE.Direct to USB cable required)
- Apple and Android smartphones, tablets, MacBooks and other devices
(VE.Direct Dual Bluetooth required)
Fully configurable:
- Low battery voltage alarm triggers and reset levels
- Battery voltage cut-off and battery restart levels
- Dynamic disconnection: load-dependent cut-off level
- Output voltage 210–245 V
- Frequency: 50 Hz or 60 Hz
- ECO mode on/off and ECO sensitivity level
- Monitoring:
- Input and output voltage
- Charging and alarms

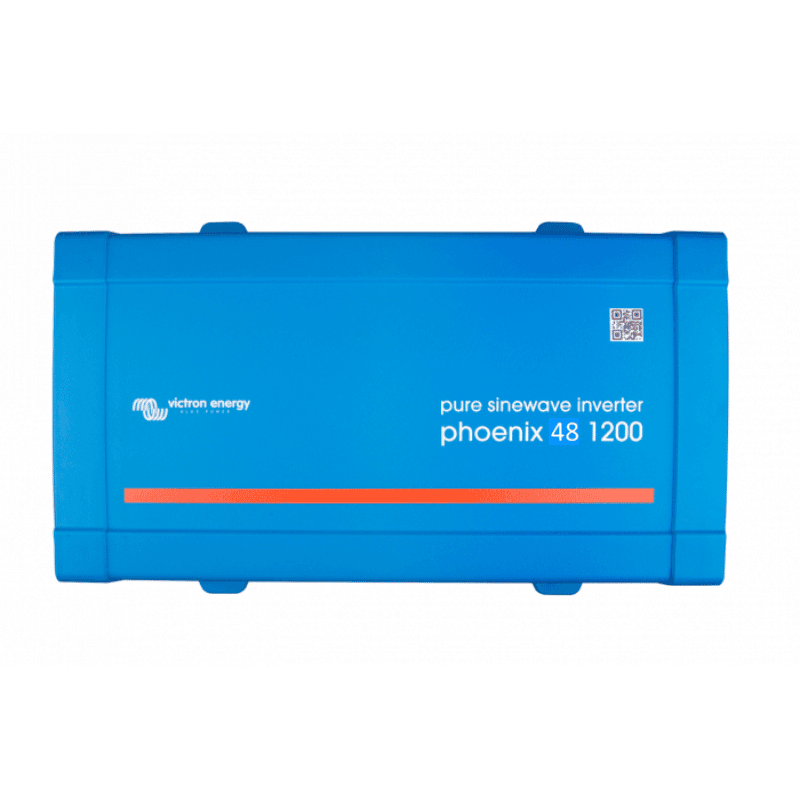

Phoenix inverters are part of a range designed for high-quality performance, based on superior solar photovoltaic technology – SinusMAX – featuring the unique capability of starting at maximum load.
Superior technology – SinusMAX
- The Phoenix range of inverters, designed for photovoltaic panel systems, is created for professional use and is suitable for a wide range of applications.
- The design focuses on optimal efficiency without compromising on performance, delivering a high-quality sinusoidal output.
Using HF hybrid technology, Phoenix offers a product:
- High quality
- Compact in size
- Lightweight
- Highly reliable
- Capable of supplying power for any type of load.
Start-up at full load – A unique feature of SinusMAX technology.
Wide range of applications
Phoenix inverters are recommended for powering demanding loads. They can be integrated into stand-alone photovoltaic kits – independent photovoltaic systems.
VE.Direct communication port
This can be connected to computers, smartphones (Apple, Android), tablets, MacBooks and other compatible devices.
Proven reliability
- The toroidal transformer design has proven its long-term reliability.
- Phoenix inverters offer protection against:
- Short circuits
- Overload
- Overheating
- High ambient temperatures
ECO mode
- In ECO mode, the inverter goes into standby when the load drops below a preset level.
- After entering standby mode, it activates for a short period (2.5 seconds, factory setting). If the load exceeds the preset level, the inverter remains on.
Remote control on/off
- Can be connected to a two-pin connector, available on all Phoenix models.
Automatic transfer switch
- For low-power models, we recommend using the Filax automatic transfer switch.
- Filax has a very short transfer time (under 20 milliseconds), allowing computers or electronic equipment to operate without interruption.
Technical specifications:
-
Dimensions: 117 x 232 x 327 mm
-
Weight: 7.4 kg
-
AC power output at 25°C: 1200 VA
-
Power output at 25°C / 40°C: 1000 / 850 W
-
Peak power: 2200 W
-
AC output voltage / frequency: 110 VAC or 230 VAC +/- 3%, 50 Hz or 60 Hz +/- 0.1%
-
Input voltage range: 36.8 - 62.0 V
-
Low battery voltage alarm: 43.6 V
-
Battery power cut-off: 37.2 V
-
Low battery voltage (self-regeneration): 56 V
-
Maximum efficiency: 92%
-
Zero-load power: 10 W
-
Photovoltaic panel system inverter protection: IP21 / a - f
-
Operating temperature range: -40 to +65°C (fan-cooled)
-
Maximum humidity (non-condensing): 95%
-
Standards: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 / EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
