Description

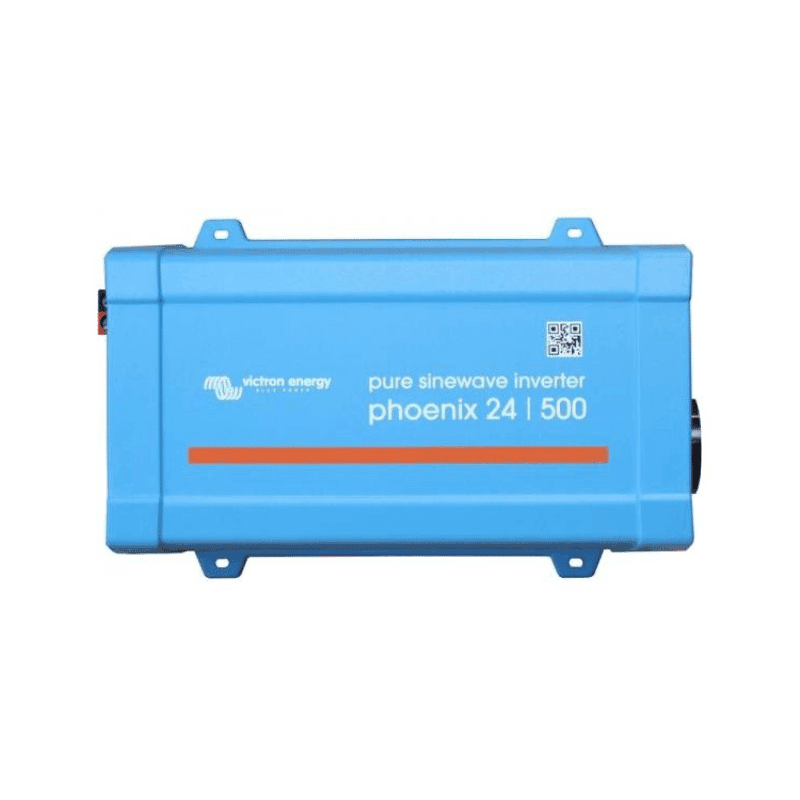

Phoenix Inverters with SinusMAX Technology – Performance and Reliability
VE.Direct Port
The VE.Direct communication port offers connectivity with:
-
Computers ( VE.Direct to USB cable required)
-
Apple and Android smartphones, tablets, MacBooks and other devices ( VE.Direct Dual Bluetooth adapter required).
Configurable Features
- Setting low battery voltage alarms and reset levels
- Adjustment of battery cut-off and restart levels
- Dynamic load-dependent disconnection
-
Output voltage: 210–245V
-
Frequency: 50Hz or 60Hz
-
ECO mode: enable/disable and sensitivity adjustment
-
Real-time monitoring: input/output voltage, charge status and alarms.
SinusMAX technology – Optimised efficiency and performance
Phoenix inverters stand out thanks to:
-
SinusMAX technology, specially designed to support start-up at maximum load, ideal for demanding applications.
- The use of HF hybrid technology to provide a balance between performance and compact dimensions, low weight and high reliability.
- Recommended for powering sensitive equipment: computers, LED/halogen lamps, low-power electrical tools.
ECO Mode and Remote Control
- In ECO Mode, the inverter automatically switches to standby when the load falls below a preset threshold. It restarts automatically when a higher load is detected.
- A remote control for switching on/off can be connected to a two-pin connector available on all models.
Automatic Load Transfer – Filax Switch
For low-power models, the Filax automatic transfer switch is recommended. The transfer time is under 20 milliseconds, ideal for sensitive electronic equipment, with no interruptions.
Technical Specifications
-
Dimensions: 86 x 172 x 275 mm
-
Weight: 3.9 kg
-
Rated power at 25°C: 500VA
-
Power at 25°C / 40°C: 400W / 350W
-
Peak power: 900W
-
Output voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1%
-
Input voltage: 18.4V – 34V
-
Low battery voltage alarm: 21.8V
-
Cut-off voltage: 18.6V
-
Regeneration voltage: 28V
-
Maximum efficiency: 90%
-
No-load power: 6.5W
-
Operating temperature: -40°C to +65°C (with fan)
-
Humidity: Maximum 95% (non-condensing)
-
Standards: EN-IEC 60335-1, EN-IEC 62109-1, UL 458, EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
