Description

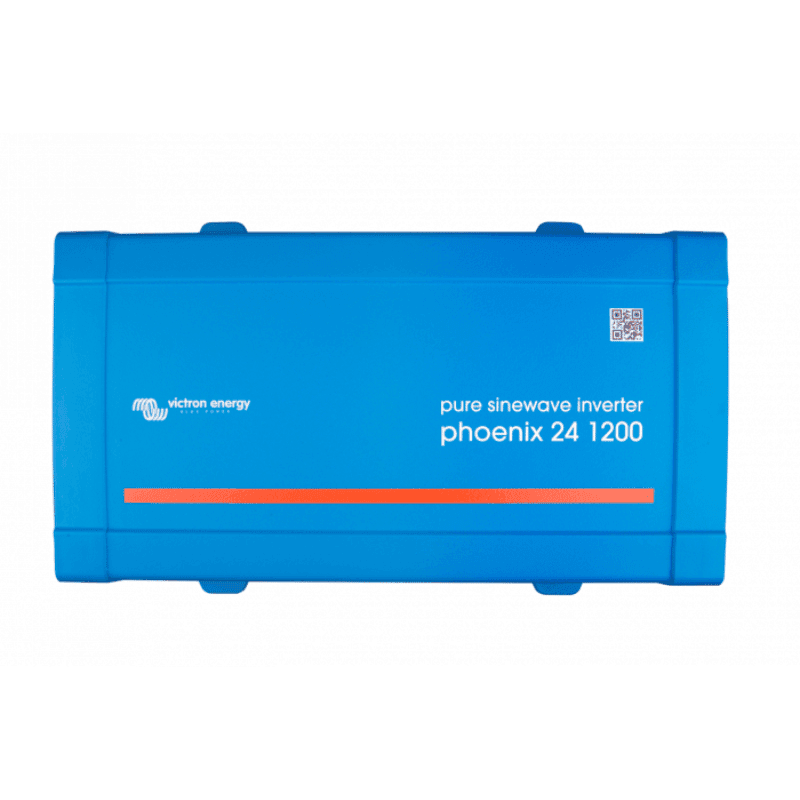

Phoenix Inverters with SinusMAX Technology – Superior Performance for Photovoltaic Applications
Cutting-edge technology – SinusMAX
SinusMAX technology is a benchmark in the photovoltaic sector thanks to its unique ability to start at full load, offering an ideal solution for applications requiring a high level of reliability. Phoenix inverters in this range are designed for professional use and are perfect for use with 24V photovoltaic kits.
Designed for Professional Performance
These inverters have been designed to deliver a clean and efficient sinusoidal output without compromise. HF hybrid technology enables compact dimensions, low weight and superior reliability, making them suitable for powering a wide range of loads, from sensitive equipment to high-consumption loads.
Key Features
-
Full-Load Start-up: SinusMAX technology ensures exceptional performance, even at high loads. This makes Phoenix inverters ideal for powering computers, low-power electric tools and other demanding loads.
-
Filax Automatic Transfer Switch: Recommended for low-power models, Filax has a transfer time of under 20 milliseconds, ensuring uninterrupted operation of sensitive electronic equipment such as computers.
-
LED Diagnostics and Multiple Output Sockets: Phoenix models are equipped with an LED diagnostic system and offer multiple types of output sockets for maximum flexibility.
-
On/Off Remote Control: Available on all models, it allows easy control of the inverter via a remote control.
Technical Specifications
-
Dimensions: 117 x 232 x 327 mm
-
Weight: 7.4 kg
-
Rated power at 25°C: 1200VA
-
Power at 25°C / 40°C: 1000W / 850W
-
Peak power: 2200W
-
Output voltage / Frequency: 110VAC or 230VAC ±3%, 50Hz or 60Hz ±0.1%
-
Input voltage: 18.4V – 34V
-
Low battery voltage alarm: 21.8V
-
Battery cut-off voltage: 18.6V
-
Regeneration voltage: 28V
-
Maximum efficiency: 91%
-
No-load power consumption: 8W
-
Protection: IP20 / a-f
-
Operating temperature range: -40°C to +65°C (with active cooling)
-
Humidity: Maximum 95% (non-condensing)
-
Standards: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 / EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
