Description

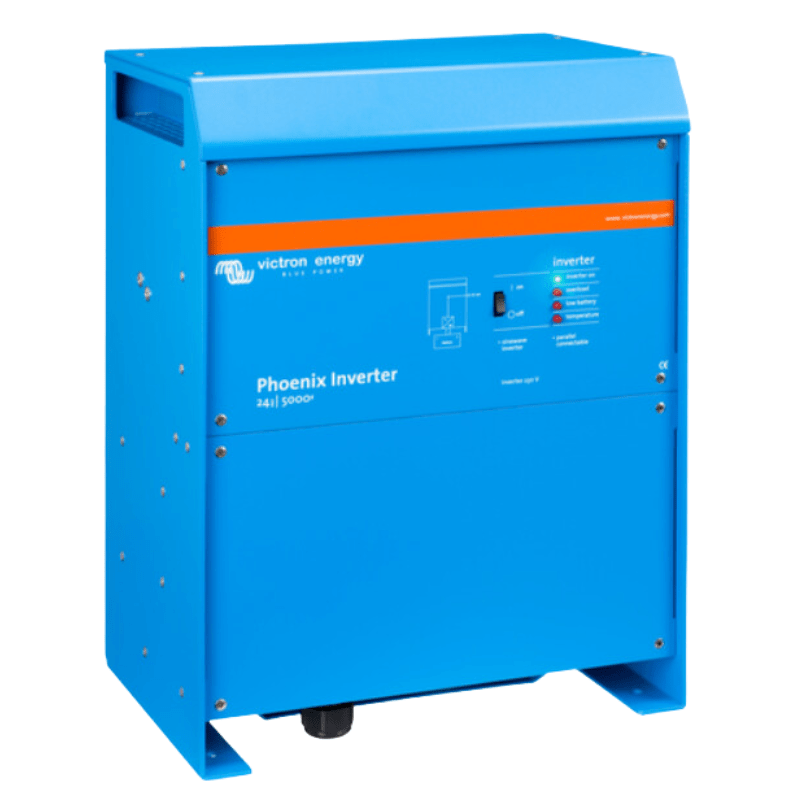

Phoenix inverters form part of a range designed for high-quality service, based on superior photovoltaic solar technology – SinusMAX – with the unique feature of starting at full load.
Superior technology – SinusMAX Designed for professional use, the Phoenix range of inverters for photovoltaic panel systems is suitable for a wide range of applications. The design criteria focus on creating an inverter with a sinusoidal output and optimum efficiency, without compromising on performance.
Using HF hybrid technology, a high-quality product has been created, featuring compact dimensions, low weight, high reliability and the ability to supply power to any type of load. A unique feature of SinusMax technology is the ability to start at full load.
Selected technical specifications:
AC power at 25°C (VA) 5000;
Maximum power (W) 10000;
AC output voltage (V) 230;
Input voltage (V DC) 19–33;
Maximum efficiency (%) 94;
Operating temperature -40 to +65°C;
Dimensions (mm) 444 x 328 x 240;
Weight (kg) 28;
