Description
The V-TAC 100kWh High Voltage LiFePO₄ Battery Kit is a professional energy storage solution designed for commercial and industrial (C&I) applications requiring high capacity, high reliability and integration with high-power inverters.
The system comprises 7 LiFePO₄ modules of 14.33 kWh each, resulting in a total capacity of 100 kWh, with a nominal voltage of 358.4 V, ideal for large-scale photovoltaic systems, on-grid, hybrid or industrial back-up applications.
Performance and safety
LiFePO₄ technology offers superior thermal stability, extended service life and a high level of operational safety. The system is designed for a recommended current of 100A and a maximum current of 140A, ensuring stable operation even under heavy load conditions.
High Voltage configuration & compatibility
The solution operates in a High Voltage configuration, with an operating range between 313.6V and 408.8V.
Communication is via CAN, enabling efficient integration with energy management systems.
Robust construction for demanding environments
The IP55-rated enclosure allows installation in technical rooms or semi-outdoor areas, offering protection against dust and water jets. The system is designed for rack mounting, being optimised for technical rooms, industrial halls or power containers.
Recommended applications
-
Commercial and industrial photovoltaic systems
-
Office buildings, production halls, logistics centres
-
Self-consumption and peak shaving applications
-
Back-up solutions for critical consumers
-
Integration into hybrid energy systems
Key benefits
-
High storage capacity: 100 kWh
-
Safe LiFePO₄ technology
-
High-voltage configuration for increased efficiency
-
Integration with 50 kW inverters
-
Stable operation at temperatures between -20°C and +55°C
-
10-year warranty

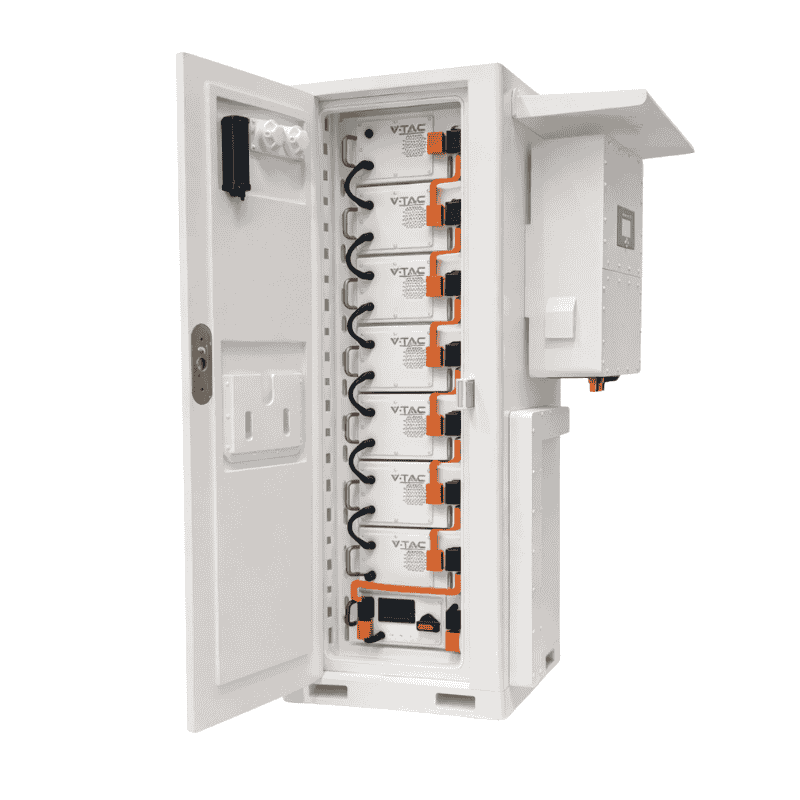

The kit is supplied as a complete solution, ready for integration into C&I systems:
-
7 units – 14.33 kWh LiFePO₄ battery / module
-
1 unit – BMS for advanced monitoring and protection
-
1 unit – Sealed, weatherproof outdoor enclosure
-
1 unit – Outdoor cabinet with air-cooling system, to maintain the optimum operating temperature
This configuration ensures safe operation, intelligent battery management and consistent performance in industrial environments.
