Description

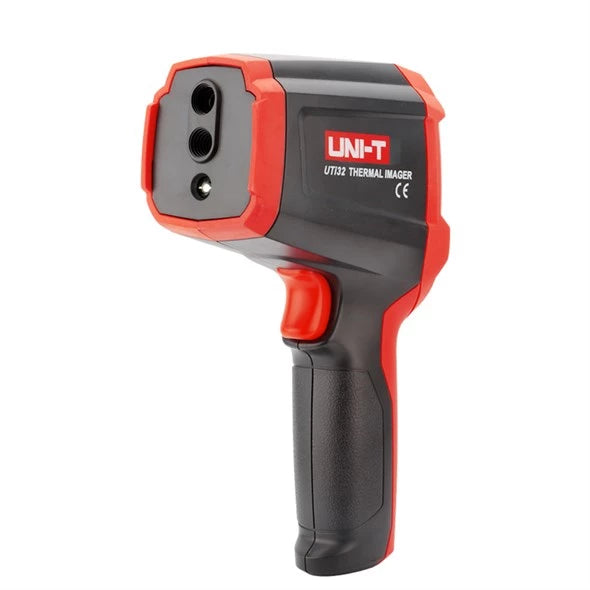

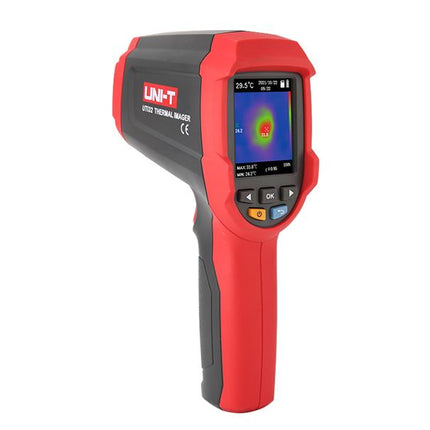

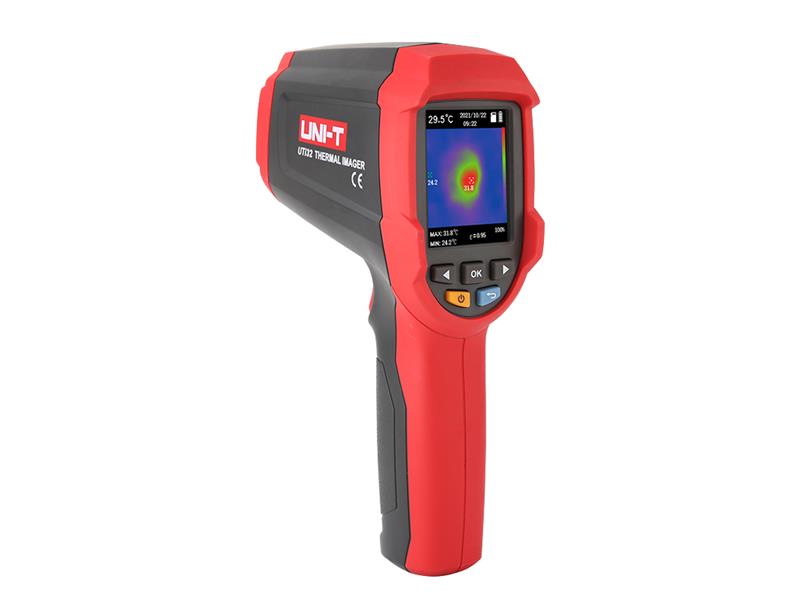

This product comes with a 3-year warranty. The UNI-T UTi32 thermal camera is a portable thermometer that measures temperature in real time. This model is equipped with a highly sensitive sensor for detecting infrared radiation, allowing you to quickly and easily determine the temperature of objects without the need for physical contact. The UTi32 is a high-temperature thermal imaging camera specially designed for higher-temperature applications such as: iron forging, glass and porcelain production, petrochemicals, metallurgy, etc. It can quickly detect temperatures from -20°C to 1000°C and features automatic tracking. The UTi32 is a lightweight, portable 300,000-pixel digital thermal imaging camera with three imaging modes; it also supports computer software analysis and offers over 7 hours of battery life. The UNI-T UTi32 thermal camera is an ideal tool for everyday use across various fields and is affordable.
Product specifications:
- Temperature range: -20℃~1000℃ / -4℉ ~1832℉
- IR resolution:
- 32℃~1000℃
- IR resolution: 3/4×32 (480*320)
- Digital camera resolution: 640×480
- Image modes: thermal, visual, fusion
- Automatic tracking and alarm for high/low points
- PC software analysis support
- Portable and lightweight
- over 7 hours of battery life
- with LED/technical light
- Specifications:
- display: 2.4" LCD with a resolution of 480 x 320px
- temperature measurement range: -20℃ to 1000℃
- Infrared resolution: 32 x 32 pixels
- field of view (FOV): 30°(V) x 30°(H) (NETD): 0.15 ℃
- frame rate: ≤9 Hz
- Measurement in the infrared spectral range: 8μm to 14μm
- Temperature measurement accuracy: ± 2°C or 2%, whichever is greater
- Adjustable emissivity: 0.01–10.95 Default colour palettes: 3 (Ironbow, Rainbow, Black Hot)
- image modes: thermal, visual, fusion
- visible light sensor resolution: 640 x 480px
- Temperature measurement unit: ℃ (default), ℉
- Power supply: 3.6–50 V Li-ion battery (1,600 mAh capacity) per charge: over 7 hours
- auto-off: yes, optional off/5/10/30 minutes
- Temperature resolution: 0.1 °C
- Interface: microSD card with a maximum capacity of 16 GB, USB-C (charging, real-time image viewing via PC software and saving to USB drive)
- Product dimensions: 2 × 30 × 65 mm
- operating temperature: 0°C to 50°C (32°F to 122°F)
- operating humidity: 10–90% RH (non-condensing)
- Storage temperature: -20°C to 60°C (-4°F to 140°F)
