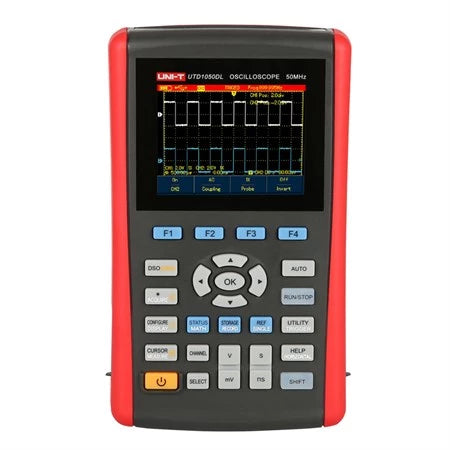

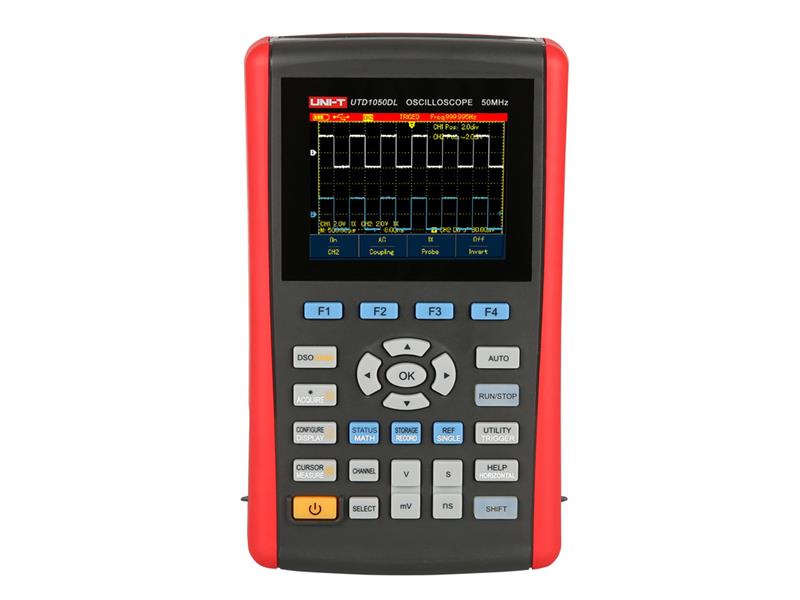

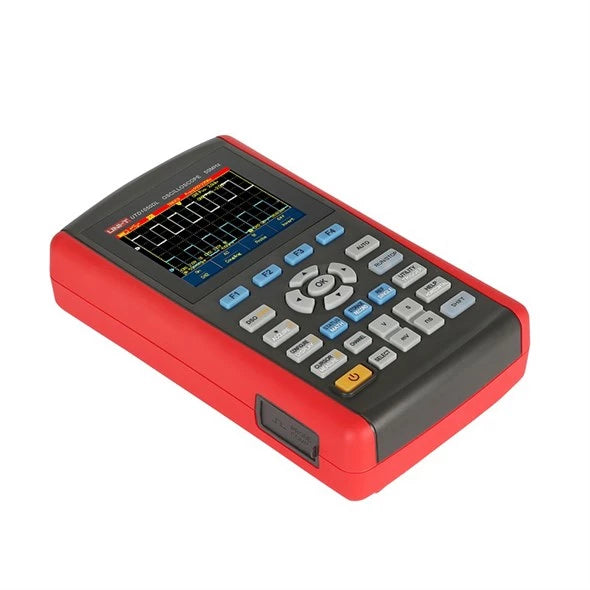

UNI-T UTD1050DL Oscilloscope
UNI-T UTD1050DL Portable Digital Storage Oscilloscope
The UTD1000DL series portable digital storage oscilloscope is a 2-channel portable device. It also has a sampling rate of 250 MS/s and, unlike the lower-end UTD1025DL version, a bandwidth of 50 MHz. It offers a simple, functional front panel, allowing you to perform all basic measurements and procedures without having to reach round to the back of the device. Use the AUTO button to make quick settings.
TECHNICAL SPECIFICATIONS:
Channels: 2
Bandwidth: 50 MHz
Sampling rate: 250 MS/s
Rise time: ≤7 ns
Vertical sensitivity
Memory sensitivity
p. (V/div): 5 mV/div–20 V/div
Time base scale (s/div): 5 ns/div–50 s/div
Storage methods: Bitmap, Setup, Waveform
Trigger types: Edge, Pulse, Video, Slope
PC connectivity
PC connectivity Manufacturer’s website: https://instruments.uni-trend.com/list_184/1059.html
Multimeter specifications (range, accuracy)
DC voltage (V): 400.0 mV/ 4.000 V/ 40.00 V/ 40.00 V/ 40.00 V/ 400.00 V/+V AC) ±(1/>V AC) (V): ±(1/>V) 400.0 mV/ 4,000 V/ 40.00 V/ 400.0 V ±(1.2%+5)
DC current (A):
400.0 μA/ 4000 μA ±(1.2%+5)
40.0 mA+/) ±40.0 mA/) ±40.0 mA/) ±(1.5%+5)
AC current (A):
400.0 μA / 4000 μA ±(2%+5)
40.0 mA/ 400 mA ±(1.5%+5)
4 A ±(2.5%+5)
4A ±(2.5%+5)
/>
40.0MΩ ±(1.5%+5)
Inductance (F): 51.20nF/512.0nF/5.120μF/51.20μF/100μF ±(3%+5)
Display range: 4000
Power: Li-ion battery: 7.4V 3100mAh; DC 2400V adapter: input 500V, Hz Output 9V/4A
LCD size: 3.5-inch 64K colour TFT LCD, 320×240
Product colour: red and grey
Product weight: 0.9 kg
Product dimensions: 118mm × 199mm × 49mm
ACCESSORIES: Probe adapter ×2 (1:1, 10:1 switchable), Current/voltage converter ×2, Power cable, USB cable
MANUFACTURER
UNI-TREND
