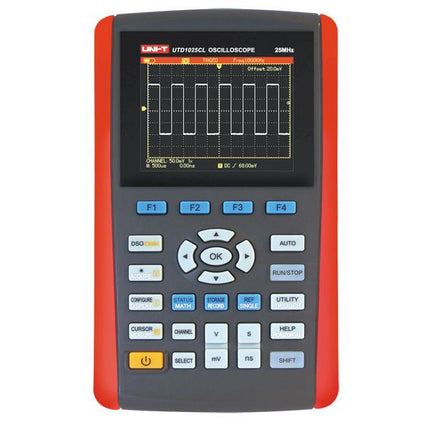

UNI-T UTD1025CL Oscilloscope
UNI-T UTD1025CL 25MHz Handheld MINI Oscilloscope
The UTD1000CL series portable digital storage oscilloscope is a 1-channel portable device. It also has a bandwidth of 25 MHz and a sampling rate of 200 MS/s. It features a simple, functional front panel, allowing you to perform all basic measurements and procedures without having to reach round to the back of the device. Use the AUTO button to make quick settings.
TECHNICAL SPECIFICATIONS:
Channels: 1
Bandwidth: 25 MHz
Sampling rate: 250 MS/s
Rise time: ≤14 ns
Memory depth: 12kpts/Vertical sensitivity:
V/Vertical sensitivity 5 mV/div–20 V/div
Time base scale (s/div): 10 ns/div to 50 s/div
Storage methods: Bitmap, Configuration, Waveform
Trigger types: Edge, Pulse, Video, Slope
Interface: Mini USB
Accura
MAccura
Specifications
DC voltage (V): 400.0 mV / 4.000 V / 40.00 V / 400.0 V ±(1%+5)
AC voltage (V): 400.0 mV/ 4.000 V/ 40.00 V/ 400.00 V/ 400.0 V ±(1%+5)
AC voltage (V): 400.0 mV/ 4.000 V/ 40.00 V/ 400.00 V/ 400.0 V ±(A+5)
400.0 μA/ 4000 μA ±(1.2%+5)
40.0 mA/ 400 mA ±(1%+5)
4 A ±(1.5%+5)
AC current (A):
400.0μA ±(5)
400.0 μA ±(1.2%+5) 40.0 mA/ 400 mA ±(1.5%+5)
4 A ±(2.5%+5)
Resistance (Ω):
400.0 Ω / 4,000 kΩ / 40.00 kΩ / 400.0 kΩ / 400.0 kΩ / 4.0 kΩ / 4.0 kΩ / 4.0 kΩ / ± 0.0 mΩ / 4.0 % 40.0 MΩ ±(1.5%+5)
Inductance (F): 51.20 nF/512.0 nF/5.120 μF/51.20 μF/100 μF ±(3%+5)
Display range: 4000
Battery: 7.4 V 3600 mAh; DC adapter: 100–240 V 50/60 Hz input, 9 V/4 A output
LCD size: 3.5-inch 64K TFT colour LCD, 320×240
Product colour: red and grey
Product dimensions: 0.19 mm × 19 mm × 49 mm

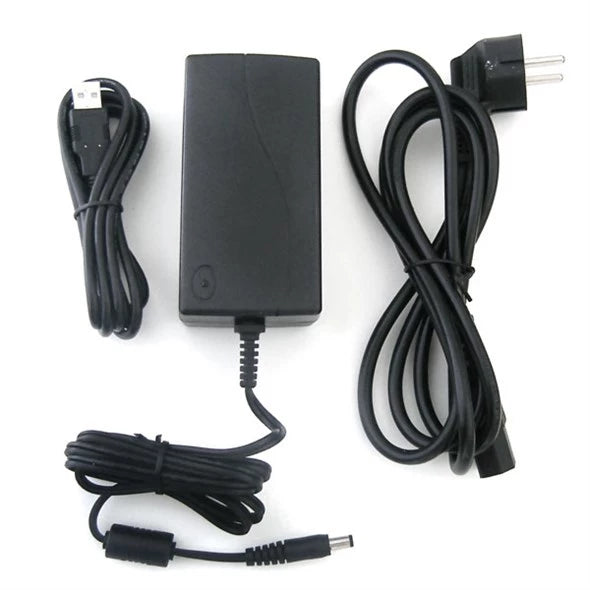

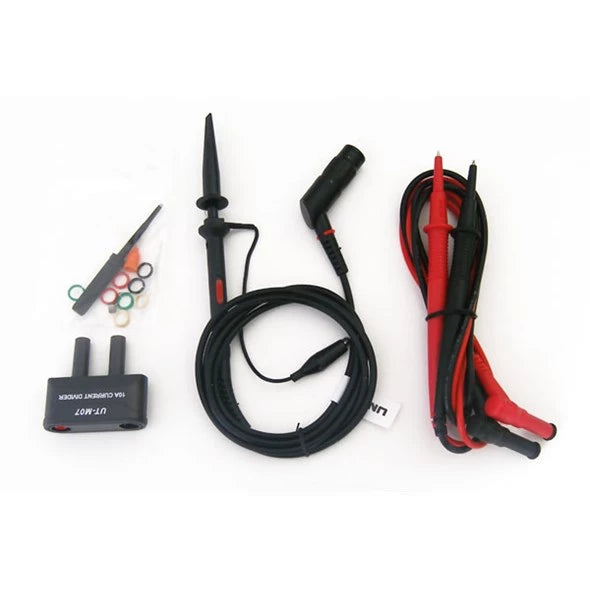

ACCESSORIES: Adapter, Test lead, Probe (1:1, 10:1 switchable), Current/voltage converter ×2, Power cable, USB cable, Software CD
MANUFACTURER
UNI-TREND
