Description

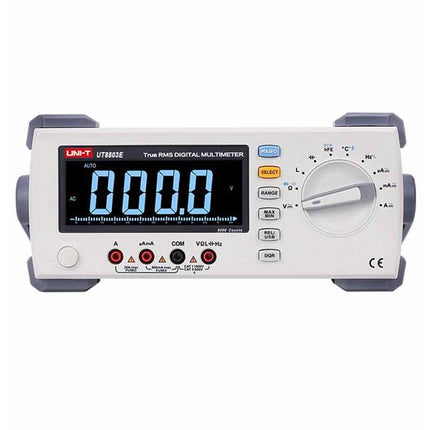

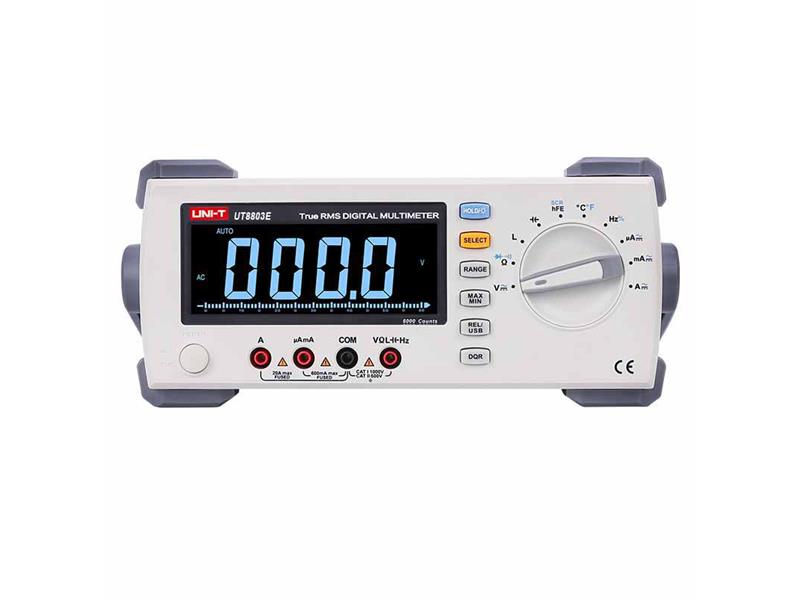

UNI-T UT8803E Digital Bench Multimeter
This product comes with a 3-year warranty.
UT8802E Digital Bench Multimeter:
True RMS
Diode/transistor
SCR Thyristor Test
LCD measurement interface
EBBTN
EBBTN
Screen inductance
Data hold
MAX/MIN
Continuity buzzer
Specifications Model UT8803E:
DC voltage (V): 1000V
AC voltage (V): 750V
DC current (A): 20A
Resistance
20A
(Ω): 60MΩ
Capacitance (F): 6mF
Frequency (Hz): 600Hz–20MHz
Duty cycle (%): 5%–95%
Inductance (H): 100H
Temperature (°C/°F): -40.0 ℃ -40℉~1832℉
Display range: 6000
Interface: USB device
Range: Auto
True RMS/diode: √
Frequency response (Hz): Up to 100kHz
9V SCR test, non-directional and bidirectional measurement
Buzzer/data hold: √
MAX/MIN: √
USB interface/LCD backlight: √
Input impedance for DCV: 600mV range: approx. 3GΩ; all other ranges: approx. 10MΩ
AC+DC measurement: √
General features:
Power: 100V/120V/220V/240V ±10%, 47Hz–63Hz
Net weight of LCD:
EBTN.
Product dimensions: 265mm x 110mm x 320mm
Standard accessories: USB interface cable, power cable, single-ended test lead with alligator clips, standard test leads, PC software CD, spot contact temperature probe
Standard individual packaging: cardboard box
Standard quantity per box: 8 pcs. 330 mm x 320 mm
Standard gross weight per box: 6.18 kg
