Description

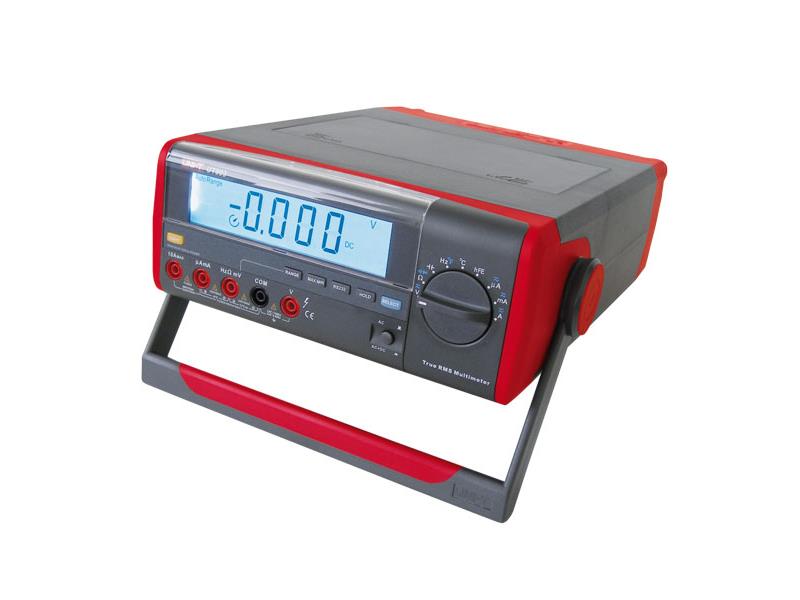

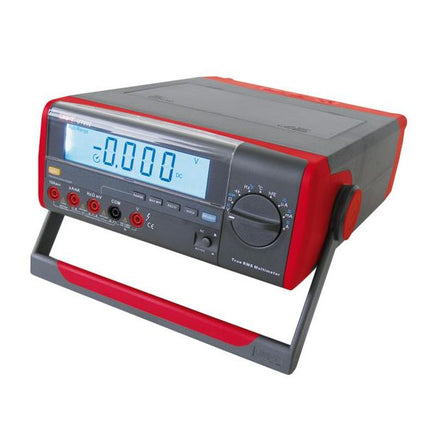

UNI-T UT803 Digital Bench Multimeter
This product comes with a 3-year warranty. SPECIFICATIONS:
DC voltage: 600mV / 6V / 60V / 600V / 1000V
- Best accuracy: +/- (0.3% + 2V / 6V AC) 60V / 600V / 1000V
- best accuracy: +/- (0.6% + 5)
DC current: 600µA / 6000µA / 60mA / 600mA / 10A
- best accuracy: +/- (0.5% + 0 AC) 6000µA / 60mA / 600mA / 10A
- best accuracy: +/- (1%+5)
Resistance: 600 ohms / 6 kOhms / 60 kOhms / 600 kOhms / 6 MOhms / 60 MOhms best accuracy: +/- (0.5%+2)
Capacitance: 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF
- best accuracy: +/- (2%+5)
Temperature: -40 / +1000°F / 1000°C best accuracy
-420°F +1:-/-420°C +/- 1%+3 (°C), +/- 1.5%+5 (°F)
Frequency: 6kHz / 60kHz / 600kHz / 6MHz / 60MHz
- best accuracy: +/- (0.1%+3)
Functions:
SPECIAL
RANGE FUNCTION
AC+DC voltage/current measurement
Frequency (AC voltage) 100kHz True RMS
Diode
Continuity buzzer
Transistor
Max/Min mode
Data hold
RS232C
USB icon display
F/USB mode
Low battery display
Input impedance for DC voltage: 10 MΩ, for DC 600 mV: 3 GΩ
Display backlight
Max. display 5999 (28 x 128 mm)
GENERAL SPECIFICATIONS:

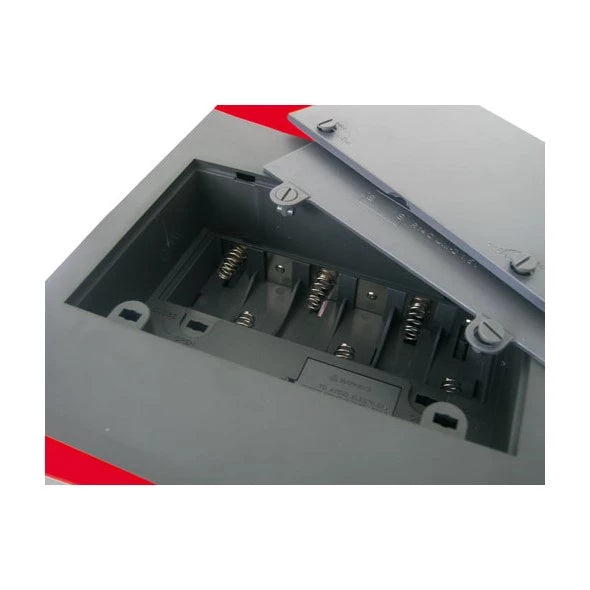

Power: 220V AC / 50Hz or 6x 1.5V batteries (R20)
Product dimensions: 105 x 240 x 310 mm
Product weight: 2.4 kg
