Description

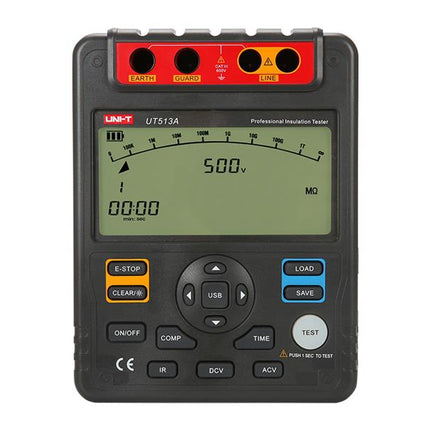

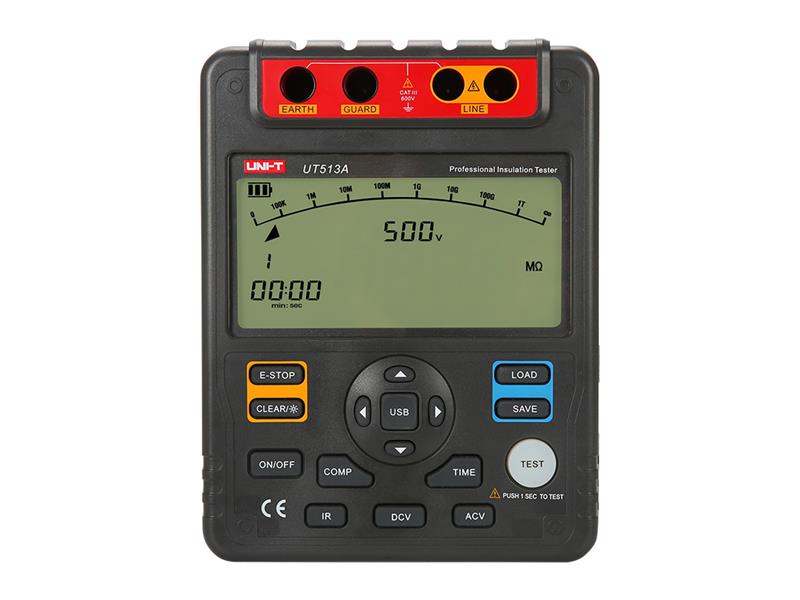

UNI-T UT513A Insulation Resistance Tester
This product comes with a 3-year warranty. SPECIFICATIONS:
Insulation resistance: 0.5 MΩ ~ 1000 GΩ
- Best accuracy: +/- (3%+5)
Test voltage: 5000V // 2500V/5000V
- Best accuracy: 0 ~ 20%
DC voltage: 600V
- best accuracy: +/- (2%+5)
AC voltage: 600V
- best accuracy: +/- (2%+5)
AUTOMATIC OPERATION
Engagement
Short-circuit current: < 1.8 mA
Data logging: 18
Standby mode
Polarisation index (PI)
Dielectric absorption rate (DAR)
Timer Approx.: 15 minutes
Compare
Battery display
White display
Backlight
White light range
Warning
USB
Max. Display: 9999 (123 x 58 mm)
Analogue bar graph
GENERAL FEATURES
Power: 8 x 1.5V alkaline batteries (LR14)
Product dimensions: 202×155×94 mm
Product weight: 2 kg,
ACCESSORIES:
batteries, manual, toolbox, USB cable
