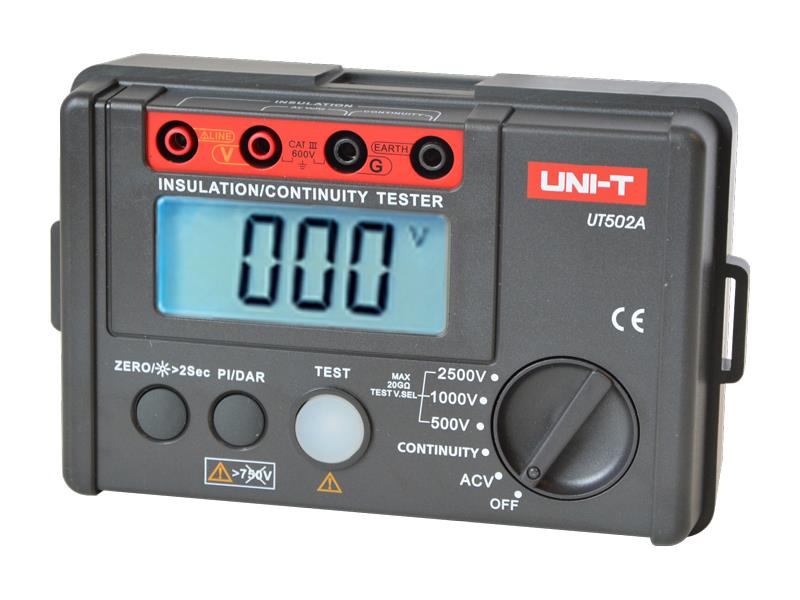

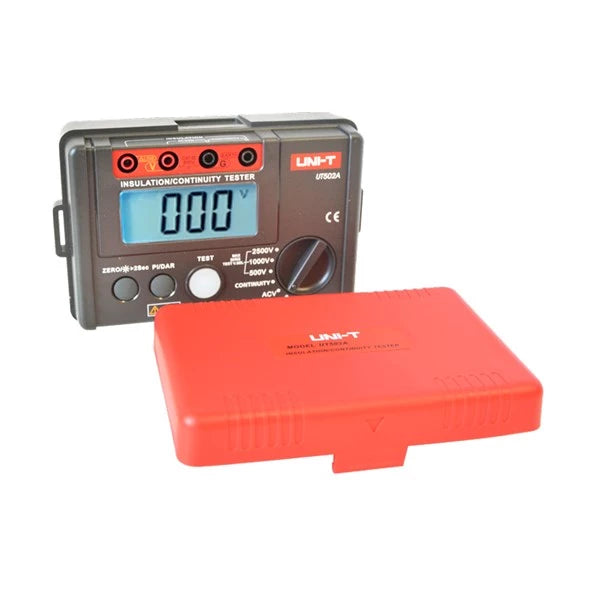

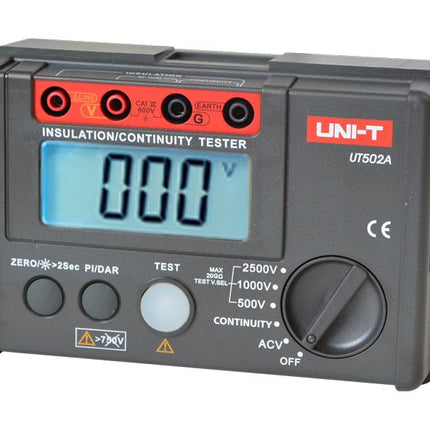

UNI-T UT502A Insulation Resistance Tester
This product comes with a 3-year warranty. UT502A Insulation Resistance Tester.
The UT500 series electrical insulation testers are used to measure the insulation resistance of electrical equipment and household appliances during routine inspections. This is achieved by measuring the insulation resistance between electrical circuits or between circuits and earth (the equipment’s earth). The UT500 series can measure insulation resistance, AC voltage, low resistance, PI (polarisation index) and DAR (dielectric absorption). The individual units in the UT500 series differ from one another in their test voltage ranges (UT501A 100V to 1000V, UT501B 250V to 1000V, UT502A 500V to 2500V), maximum measured insulation resistance (UT501A 5GΩ to 5GΩ, UT502A 0MΩ to 20GΩ) and other parameters.
These testing and inspection devices ensure the correct operation of transformers, generators, high-voltage motors, power capacitors, power cables, surge arresters, circuit breakers, and electrical machinery and equipment. They are ideal devices for carrying out electrical maintenance and are manufactured in accordance with IEC 61010 and IEC 61557 standards.
UT502A specifications:
- insulation resistance measurement from 0 MΩ to 5.5 GΩ
- DC voltage testing 500V /
- measurement of 500V / 12,000V /
dielectric loss tangent and dielectric absorption
- low resistance measurement from 0 to 200Ω
- AC voltage measurement in the range from 30 to 600V (50 / 60Hz)
- overload indication at > 22GΩ
- Backlit LCD display with automatic secondary display switching range
--999 voltage and start functions
- Red warning light
- Powered by 6 x 1.5V (AA) batteries
- low battery indicator
- CAT III 600 V overvoltage protection
UT502A technical specifications:
- insulation resistance measurement / internal voltage measurement / insulation voltage resistance
500V / 0.00MΩ to 5.5GΩ / 1.00 mA to 1.10mA / 500kΩ
1000V / 0.00MΩ to 5.5GΩ / 1.00 mA to 1.10mA / 1M200mA / 1MV / 200kΩ 1.00 mA to 1.10 mA / 1 MΩ
- open-circuit voltage tolerance: +10%
- short-circuit current of test voltage: less than 1.8 mA
- Accuracy range for insulation resistance measurement: 0.00 MΩ to 99.9 MΩ: ±3 Ω; 10 GΩ: ±(5% + 5) Ω; 10 GΩ to 20 GΩ: ±(10% + 5) Ω
- Polarisation index measurement for a measurement time of 10 minutes / 1 minute
- PI value / criterion: ≥ 4 / excellent, 4 to 2.0 / good, ≤ 1.0 / warning, 1.0 / poor
- Measurement of dielectric absorption for 60 sec / 30 sec
- DAR value / criterion: ≥ 1.4 / best, 1.25 to 1.0 / good, ≤ 1 / poor
- low resistance measurement (circuit: 000000000) 200Ω
- resolution: 0.01Ω
- Display reset for more accurate measurements: yes, ZERO button
- open-circuit voltage before measurement: approx. 5.0 V
- current during measurement: approx. 200mA
- Accuracy: ± (2% + 3)
- AC voltage measurement - range: 30 V to 600 V (50 / 60 Hz)
- resolution: 1 V
- Accuracy: ± (2% + 3)
- 60 mm multifunctional LCD display. 34 mm, range 1999
- Display backlight: option for white or red backlight during warning
- automatic range switching: yes
- buzzer: yes, high voltage indication
- Automatic discharge of internal capacitance after measurement: yes
- power supply: 6x alkaline battery (test mode) 1 voltage (test mode) 1 voltage
- low battery indicator: yes, when voltage drops below 7V
- Weight: 0.7kg (including battery)
- Product dimensions: 150 x 100 x 71mm
- Calibration conditions for product colour: red 2 and grey
- Calibration environmental conditions: ±5 °C, humidity 45% to 75%
- Recommended calibration: once a year; the calibration protocol must be ordered separately
- operating conditions: 0 °C to +40 °C / relative humidity 85% or less
- Storage conditions: -20 °C to +60 °C / relative humidity <90% – max. 2000 m
Contents of individual package:
- UT502A unit: 1 pc

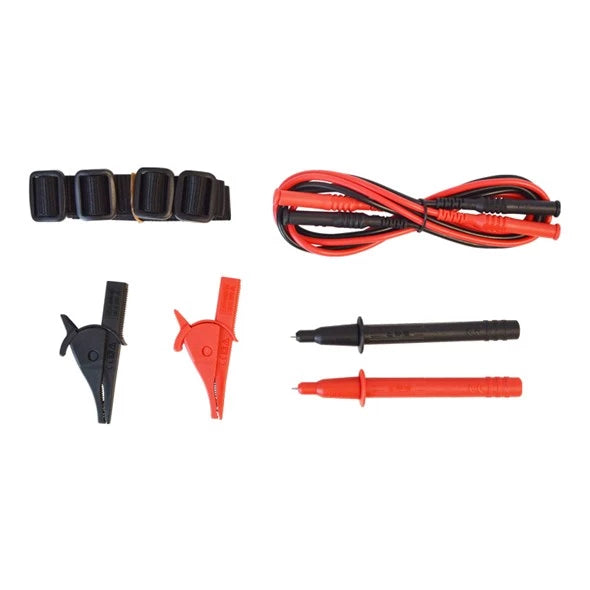

- test leads: 1 pair
- alligator clips: 1 pair
- 1.5V AA battery (LR6): 6 pcs
- instructions: English, Czech, Slovak: 1 copy
Wholesale packaging:
- standard quantity per box: 20 pcs
- standard box dimensions: 500 x 380 x 330 mm
- total weight of the box: approx. 18.9 kg
