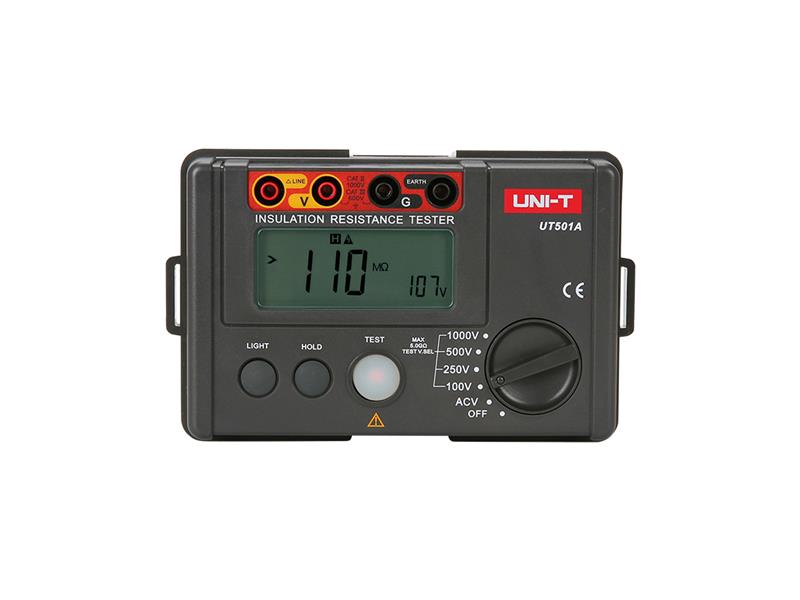

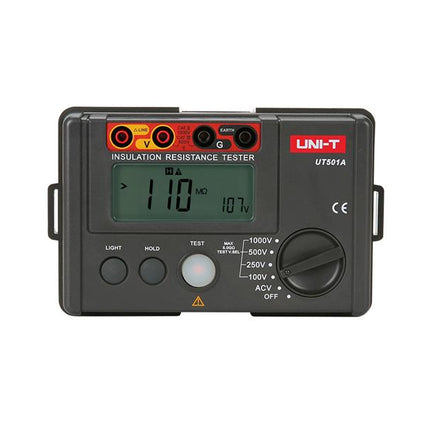

UNI-T UT501A Insulation Resistance Tester
This product comes with a 3-year warranty. UT501A Insulation Resistance Tester.
The UT500 series electrical insulation testers are used to measure the insulation resistance of electrical equipment and household appliances during routine inspections. This is achieved by measuring the insulation resistance between electrical circuits or between circuits and earth (the equipment’s earth). The UT500 series can measure insulation resistance, AC voltage, low resistance, PI (polarisation index) and DAR (dielectric absorption). The individual units in the UT500 series differ from one another in their test voltage ranges (UT501A 100V to 1000V, UT501B 250V to 1000V, UT502A 500V to 2500V), maximum measured insulation resistance (UT501A 5GΩ to 5GΩ, UT502A 0MΩ to 20GΩ) and other parameters.
These testing and inspection devices ensure the correct operation of transformers, generators, high-voltage motors, power capacitors, power cables, surge arresters, circuit breakers, and electrical machinery and equipment. They are ideal devices for carrying out electrical maintenance and are manufactured in accordance with IEC 61010 and IEC 61557 standards.
UT501A product specifications:
- Insulation resistance measurement from 0 MΩ to 5.5 GΩ
- DC test voltage 100 V / 520 V / 500 V / 1000 V
- AC voltage measurement in the range from 30 to 750 V (50 / 60 Hz)
- Overload indication at >5.5 GΩ
- Backlit LCD display with a range of 1999
- Automatic range switching
- Secondary display for red light warning function
Power supply: 6 x 1.5V (AA) batteries
- Low battery indicator
- CAT III 600 V overvoltage protection
Technical specifications of the UT501A:
- Rated test voltage / insulation resistance measurement range / rated measurement current / internal resistance 1000V //>000V //> 100MΩ / 1.00mA to 1.10mA / 100kΩ
250V / 0.00MΩ to 5.5GΩ / 1.00mA to 1.10mA / 250kΩ
500V / 0.00MΩ to 5.5GΩ / 5.1.0mA / 5.1.0mA 500kΩ
1000V / 0.00MΩ to 5.5GΩ / 1.00mA to 1.10mA / 1MΩ
- open-circuit voltage tolerance: +10%
- test voltage short-circuit current: less than 1.8mA to 0.00mA, resistance measurement range at 0000mA
00. 99.9MΩ: ± (3% + 5) / 100MΩ to 5.5GΩ: ± (5% + 5)
- AC voltage measurement - range: 30 V to 750 V (50 / 60 Hz)
- resolution: 1V
- (display accuracy: 1V
- ± 2%/-: 3) 70.6 mm x 34 mm multifunction LCD, 1999-digit range
- Display backlight: option of white backlight or red backlight during warning
- automatic range switching: yes
- buzzer: yes, high voltage indication
- Automatic discharge of internal battery after measurement: yes (AA)
- low battery indicator: yes, when voltage drops below 7V
- weight: 0.5kg (including battery)
- product dimensions: 150 x 100 x 71mm
- product colour: red and grey
- factory calibration conditions: ambient temperature 23 °C, humidity ± 23 °C, ± 75% humidity
- recommended calibration: once a year; the calibration protocol must be ordered separately
- operating conditions: 0°C to +35°C / relative humidity 75% or less
- storage conditions: -20°C to +60°C / relative humidity 80% or less
- Altitude: max. 2000 m
Contents of individual package:

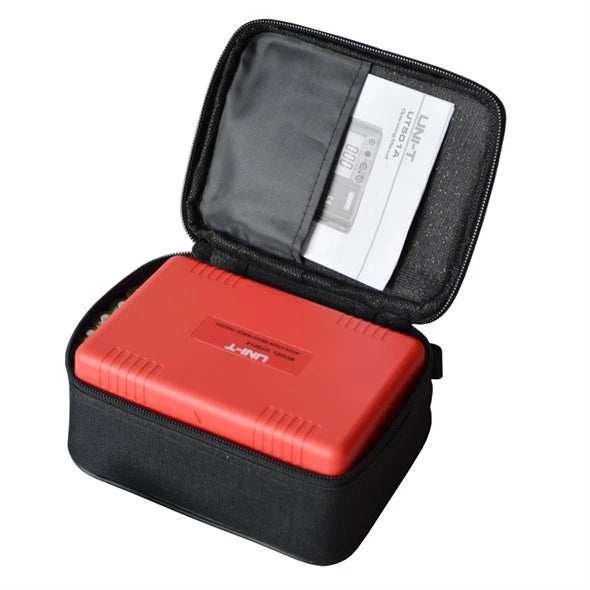

- UT501A unit: 1 pc

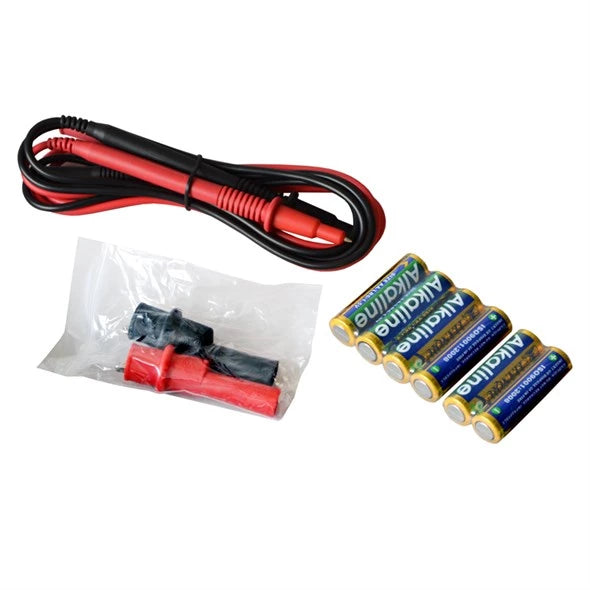

- test leads: 1 pair
- Alligator clips: 1 pair
- 1.5V AA battery (LR6): 6 pcs
- instructions: English, Czech, Slovak: 1 copy
Wholesale packaging:
- standard quantity per box: 20 pcs
- standard box dimensions: 500 x 380 x 330 mm
- total weight of the box: approx. 17.7 kg
Manufacturer:
https://www.uni-trend.com/
