Description

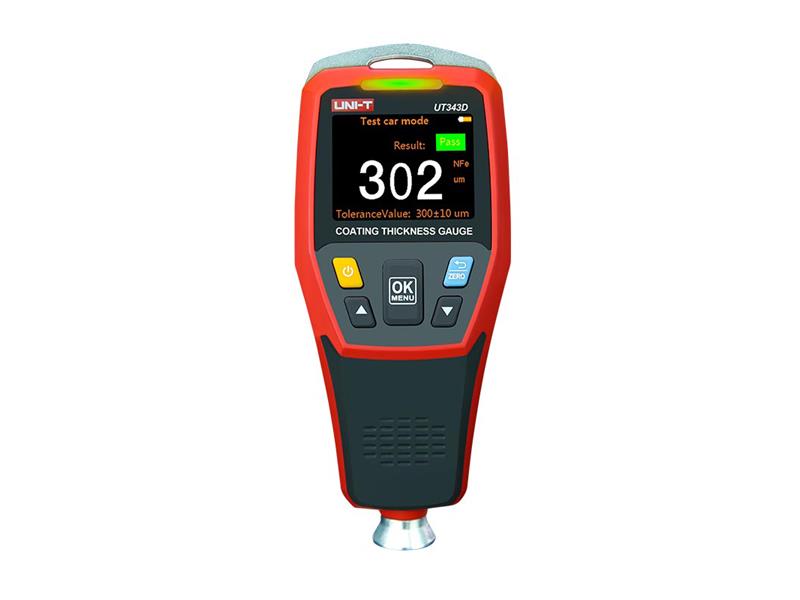

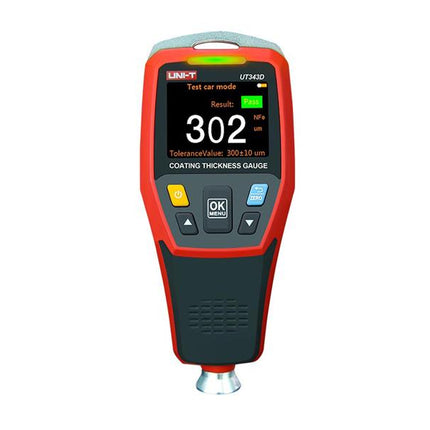

UNI-T UT343D Coating Thickness Tester
This product comes with a 3-year warranty. The UT343D coating thickness gauge can measure the thickness of coatings on ferrous and non-ferrous materials. This device is designed with a unique quick-test feature, allowing users to set a thickness range and use a 3-colour LED and an audio alarm to quickly determine whether the tested coating falls within the preset range, greatly increasing work efficiency.
The UT343 display rotates automatically. This CE-certified device can store up to 500 sets of data for further analysis via the included PC analysis software.
Applications:
It is widely used in manufacturing, metalworking, aerospace, marine engineering, rail transport, scientific research, quality control and other industries.
Specifications
Measurement range: 0–1250 µm
Accuracy: ±(3%H+1) µm
Resolution: 0.1 µm (0–99.9 µm); 1 µm (100–1250 µm)
Measurement method: Single/Continuous
Measurement mode: Max/Min/Avg
Metal type: ferrous/non-ferrous
Features
Display type: 2.0-inch TFT LCD (brightness) (243,200 pixels) control: √
Automatic screen rotation: √
Unit conversion: √
Audio alarm: √
LED alarm: √
PC analysis software: √
USB communication: √
Quick test mode: √
Automatic data group shutdown:
0 √
Low battery indicator: √
General features
Power: 3V battery (R03) x 2
Display: 48mm x 36mm
Product colour: red and grey
Net product weight: 175g.<br/x15mm.
63 mm. 41 mm
Standard accessories: micro USB interface cable, standard earpiece, batteries, cloth pouch
Standard individual packaging: gift box, manual
Standard quantity per box: 10 pcs.
