Description

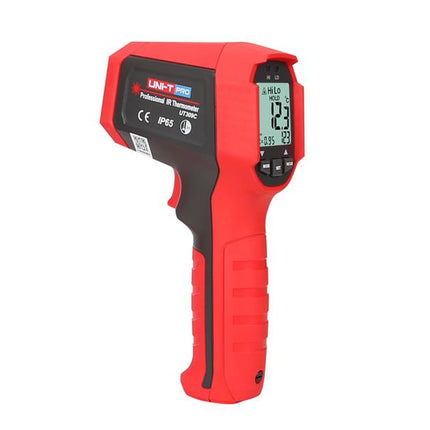

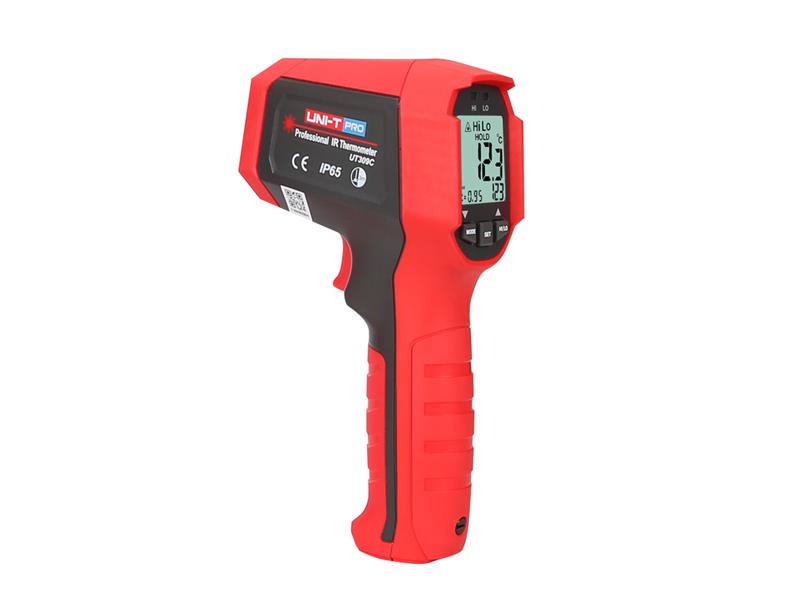

UNI-T UT309C PRO Infrared Thermometer
This product comes with a 3-year warranty. The UT309C professional non-contact infrared thermometer can quickly and accurately determine surface temperatures ranging from -35°C to +650°C by measuring the infrared energy radiated from the target surface. The UT309C is a highly durable device, suitable for everyday use. It is drop-resistant from 3m, and its excellent IP65 protection rating ensures good resistance to water and dust. For easier and more intuitive aiming of the device at the target surface, a dual-rotating laser with two wavelengths is built in, indicating the correct aiming of the thermometer. The distance-to-spot ratio is 12:1 with this instrument. You can preset the emissivity of the measured surface within the range of 0.1 to 1.0. Preset functions and measured values are displayed on a high-contrast black-and-white LCD screen, whilst temperature limits are indicated by LEDs (red for exceeding the upper limit and blue for the lower limit). It is possible to set a continuous measurement; after 2 minutes, the display backlight turns off, and once the measurement is complete by pressing the trigger button again, the temperature value remains on the display. The temperature measurement time is up to 250 ms in 95% of cases. It is possible to display the minimum, maximum and average temperatures, as well as the difference between the highest and lowest measured temperatures (MIN, MAX, AVG, DIF). The thermometer switches off automatically to reduce power consumption if not used for 8 seconds. This auto-off function can be disabled.
Product specifications:
- infrared thermometer for non-contact measurement of surface temperatures
- temperature range: -35°C to +650°C, switchable to °F
- marking of the measured surface with a double ratio of the distance to the surface using a laser measuring
is 12 : 1 with this instrument
- Backlit black-and-white LCD display with a resolution of 32 x 29 mm
- Indication of limit value exceedance via LED (red, blue)
- Tripod mounting socket
Technical parameters:
- Temperature range:
- 0 ℃ to +650 ℃: (-31 ℉ to 1202 ℉)
- Temperature measurement accuracy ≥0℃: ± 1.8℃ or ± 1.8% of the reading, whichever is greater
- Temperature measurement accuracy <0°C: ± (1.8°C + 0.1°C) of the temperature reading, regardless of the temperature reading<br/°C - Temperature measurement accuracy ≥32°F: ± 3.6°F or ± 1.8% of the reading, whichever is greater
- temperature measurement accuracy <32℉: ± (3.6℉ + 0.1℉/℉ reading, whichever is greater)
- measurement resolution: 0.1°C; repeatability: ± 1°C (1.8°F) or 0.8% of reading (whichever is greater)
- spectral response: 8μm to 14μm
- response time in 95% of cases: 250 ms
- the ratio of distance to measured surface area is 12 : 1 with this instrument
- Laser measurement class
- Laser measurement area
- 2: wavelength 630 nm to 670 nm, output power ≤1 mW
- display: high-contrast black-and-white LCD display, 32 x 29 mm
- temperature limit indication via LED (red, blue)
- setting of the emissivity of the measured surface in the range 1.0, 0.1 during automatic switch-off
on inactivity
- power supply: 9V battery (6F22)
- battery life: continuous temperature measurement with backlight on ≥10 hours
- low battery indicator: yes
- drop test from a height: 3 m
- HI/LO temperature alarm mode (high/low alarm with LED indication / MAX / AVG / MAX / MIN) value
- Operating temperature: 0°C to 50°C (32°F to 122°F)
- Operating humidity: <90% RH (non-condensing)
- Operating altitude: max. 12,000 m
- Storage temperature: -20℉ to 60℉-60℉-(-40℉) Colour: red and grey
- Net product weight: 292 g
- Product dimensions: 189 x 118 x 55 mm
Package contents:
- UT309C PRO thermometer: 1 pc
- 9V battery: 1 pc Manual:
- blister pack:
- 1 pc
Packaging for wholesale customers:
- Standard quantity per box: 10 pcs
- standard box dimensions: 430 x 335 x 330 mm
- total box weight: 6.5 kg
MANUFACTURER
–https://www.unitre.com/
