Description

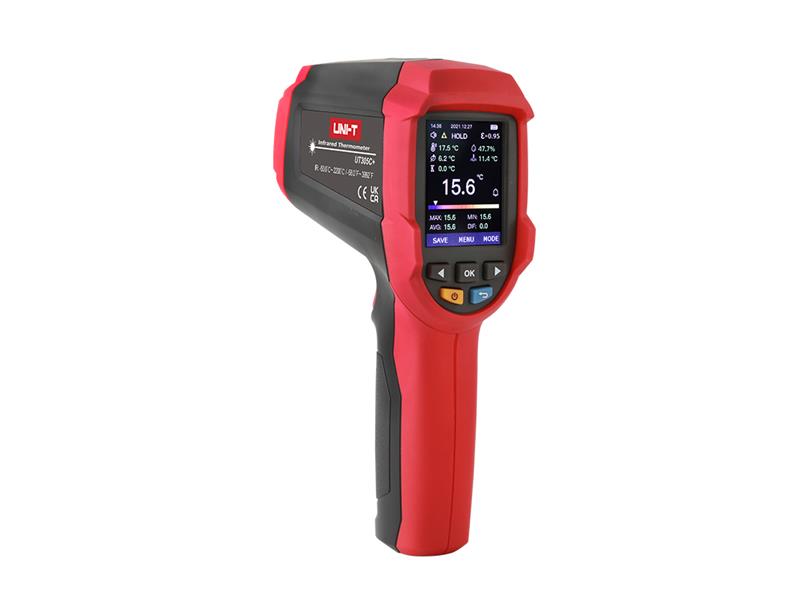

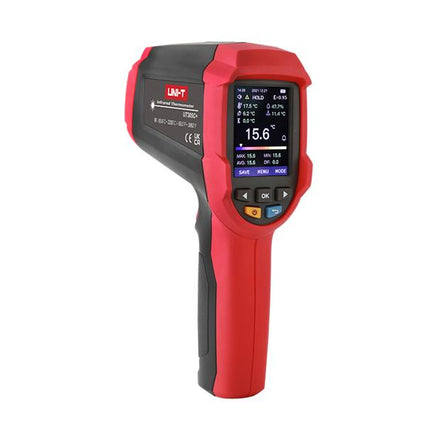

This product comes with a 3-year warranty. The UT305C+ professional non-contact infrared thermometer can quickly and accurately measure surface temperatures ranging from -50°C to +2200°C by detecting the infrared energy emitted by the target surface. To make aiming the device at the target surface easier and more intuitive, a laser is built in, which indicates when the thermometer is correctly aimed. The distance-to-spot ratio for this device is 55:1. This thermometer has additional built-in functions, e.g. measuring the temperature around the thermometer, measuring temperature with a K-type contact thermocouple, and measuring relative humidity around the thermometer. Based on these measured values, it automatically calculates the dew point temperature or wet bulb temperature. The system time and date can be entered into the thermometer. Measurements can be scheduled at preset intervals and a total of 999 events (data sets) can be stored in the internal memory. It is possible to preset the emissivity of the measured surface within the range of 0.1 to 1.0. The display of preset functions and measured values is provided by a bright, high-contrast colour TFT LCD screen, whilst limit values are indicated by an audible alarm and on the display. It is possible to display minimum, maximum and average temperatures, as well as deviations from the average (MIN, MAX, AVG, DIF). The device is resistant to drops from a height of 1 metre.
This non-contact infrared thermometer can be used in various fields, such as the food industry, vehicle maintenance, transport equipment, metalworking, cold storage and other industries.
Product specifications:
- Infrared thermometer for non-contact surface temperature measurement. -50°C to +2200°C, switchable to °Fahrenheit
- laser pointer to mark the measured surface
- Tripod mounting hole
- The distance-to-spot ratio for this device is 55:1
- High-contrast colour TFT LCD display with a 2/4-digit resolution. Buzzer, on-screen display and three-colour LED function
- setting of scheduled measurements based on system time and storage of 999 events in memory
- data export to a computer in PDF or CSV format
- Power supply: 3.7V/2600mAh lithium battery, type 18650
Infrared (IR) measurement: -50°C to +2200°C (-58°F to 3992°F)
- ambient temperature measurement range: -10°C to +50°C
- Temperature range for Type K thermocouple measurement: -50°C to 1370°C
- Temperature range for K-type thermocouple measurement
- -40°C to 260°C
- resolution: 0.1°C / 0.1°F
- relative humidity measurement range: 10 to 80% RH
- IR measurement accuracy in the range -50°C to 0°C: ±(1°C + 0.1°C of the measurement range/0.1°C of the measurement range/°C) 0°C to 1850°C: ±1°C or ±0.01 × t°C (whichever is greater)
- ambient temperature measurement accuracy: -10°C to 0°C: ±1°C; 0 to 40°C: ±0.5°C; 40°C to 50°C: ±1°C
- thermocouple temperature measurement accuracy: ±(0.005 × t + 1.5)°C
- relative humidity measurement accuracy: ±5% RH
- setting of the emissivity of the measured surface: yes; 0.1 to 1.0 in steps of 0.01, built-in emissivity table
- spectral response: 8μm to 14μm
- ratio of distance to measured surface diameter: 55:1
- Class 2 laser: wavelength 630 nm to 670 nm, output power ≤1 mW EN60825-1:2014
- display: 2.4" diagonal, backlit colour TFT LCD
- display resolution: 320 x 240 pixels
- Trigger lock (continuous measurement): yes
- power supply: 3.7V/2600mAh lithium battery, charging time
600mAh
-5; 3 hours
- continuous operating time: ≥ 20 hours (when fully charged)
- automatic switch-off during inactivity: yes
- low battery indicator: yes
- drop test from a height: 1 m
- temperature alarm mode: HI/LO (high/low alarm with audible suspension indication: MAX /
- AVG /
) yes
- Operating temperature: -10℃ to +50℃ (14℉ to 122℉)
- temperature coefficient: ±0.1°C/°C or ±0.1%/°C - whichever is greater
- Operating humidity: <90% RH (non-condensing storage temperature:
-0℃) (-4℉ to 140℉)
- product colour: red and grey
- net product weight: 375 g
- Product dimensions (L x W x H): 124 x 65 x 205 mm
Package contents:
including battery:
- 5 USB cables – 1 pc,
- charging and data cable – USB-C: 1 pc
- Type K contact ball thermocouple with 1 m cable: 1 pc
- user manual: 1 pc
Manufacturer:
UNI-TREND
-
