Description

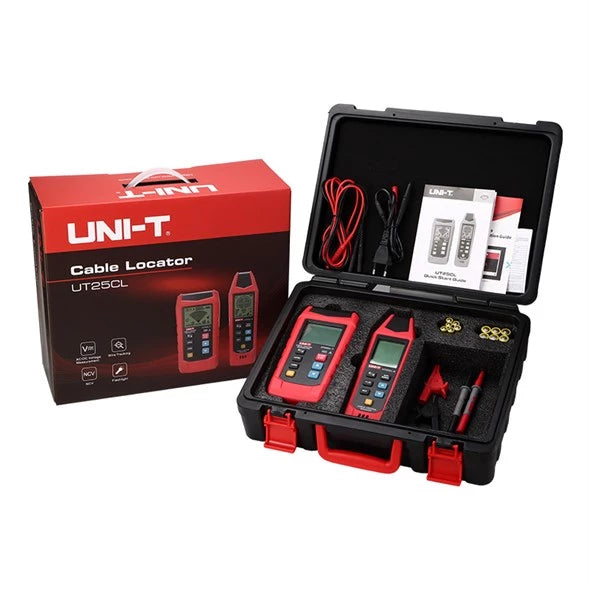

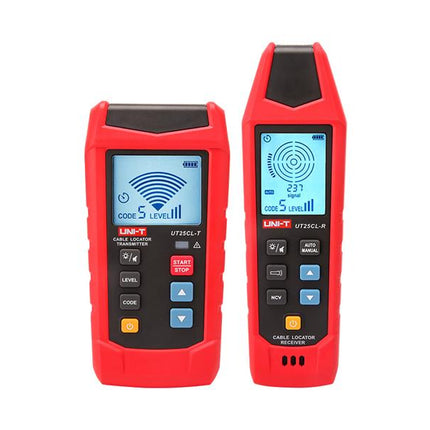

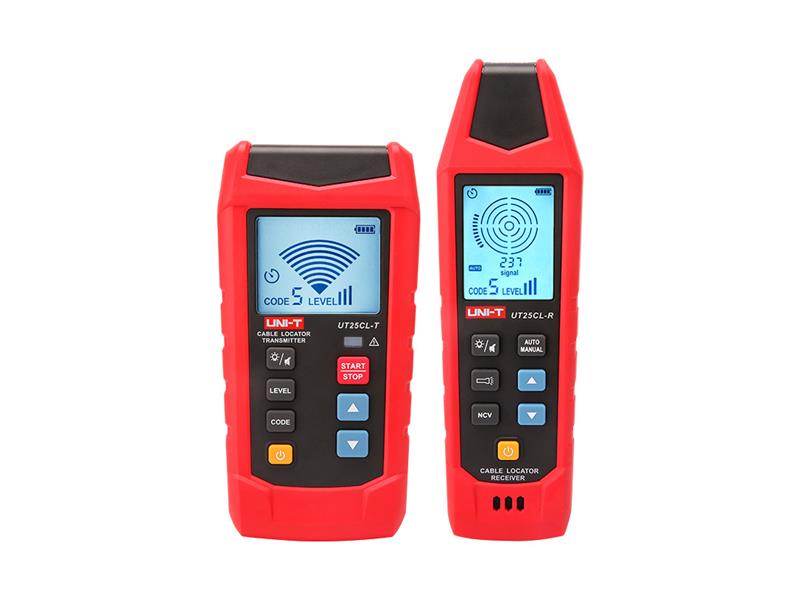

This product comes with a 3-year warranty. The UNI-T UT25CL cable locator is a powerful device comprising a transmitter and a receiver. Featuring state-of-the-art sensors, it effortlessly tracks cables and wires, saving time and preventing accidental damage during installations or repairs. This tool detects wires, identifies breaks or short circuits, traces underground cables and locates fuses and related equipment. It also detects short circuits and open circuits in underfloor heating, monitors metal water and heating pipes, and supports up to 8 transmitters.
It is ideal for residential or commercial projects.

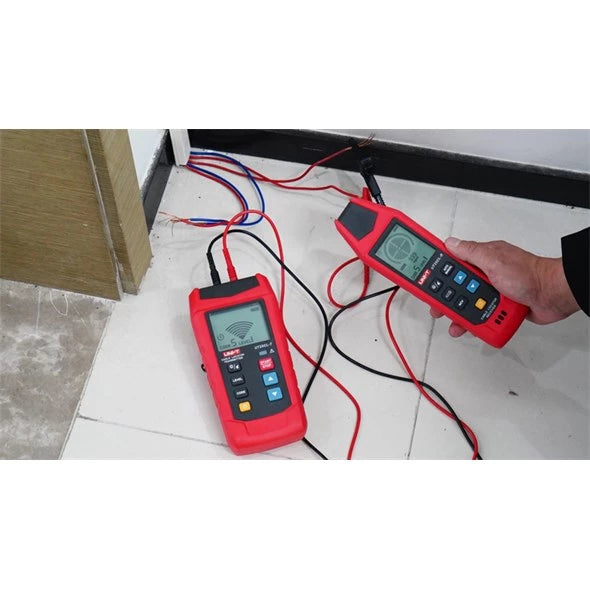

The UT25CL handheld detector can be used to trace the route of low-voltage cables buried in the ground (e.g. cables in walls); to test and diagnose disconnections, short circuits and other problems occurring on cables; and to determine whether the cable being tested is live. The transmitter can display the corresponding voltage (power cable voltage: ≥8V), whilst the receiver can simultaneously display signal strength, transmitter code, transmitter power level, low battery, etc. The UT25CL has many advantages, including accurate measurement, easy operation, a clear display and much more.
Wires, etc. – wire breaks, short circuits
- tracing of underground cables
- detection of fuses and circuit assignment
- detection of broken and short-circuited wires in metal underfloor heating systems
- tracing metal pipes for water distribution and heating
- accidental tracing of distribution sockets beneath sockets concealed beneath plasterboard distribution sockets
- automatic or manual adjustment of receiver sensitivity (3 adjustable levels, transmitter: 9 levels)
- torch and backlight functions
- automatic switch-off function
- one receiver can support up to 8 transmitters
- Live wire detection: up to 480 V (AC/DC)
Technical specifications:
Transmitter:
- output signal: 33 kHz
- Voltage range: 8 V – 480 V AC/DC, 50/60 Hz (2.5%)
- LCD display
- Display code value
- 0, 1, 2, 3, 4, 5, 6, 7
- three signal strength levels: 1, 2, 3
- Unipolar test: yes (live conductor test, max. voltage 480 V)
- Bipolar test: yes (live conductor test, max. voltage 480 V) Input LED
-/> 480 V input voltage indicator
-/> If V exceeds 25 V, the ELV LED will light up
2. as the voltage increases, the brightness of the ELV LED increases
3. in all other cases, the ELV LED will be dimmed or will not light up
- Power supply: 6 x 1.5V AA (LR06)
- Dimensions: 96 x 1894 x approx. 528 g
Receiver:
- Receiving signal: 33 kHz
- Cable detection range: approx. 0–2.5 m (single-phase application), approx. 0–0.5 m (two-pole application)
- Voltage range NCV 80V ~ 1000 V, 50Hz/60Hz
- Voltage detection: approx. 0–0.4 m
- Code value: 0, 1, 2, 3, 4, 5, 6, 7
- Three signal strength levels: 1, 2, 3
- LCD display
- Power supply: 6 x 1.5 V AAA (LR03)
- dimensions: 226 x 68 x 38 mm
- weight: approx. 354g
Other:
- backlight
- manual sensitivity adjustment
- Overvoltage category CAT III 480V
- IP54 protection
- certifications: CE, RoHS
