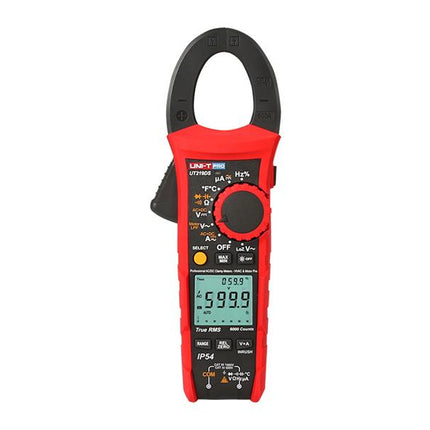

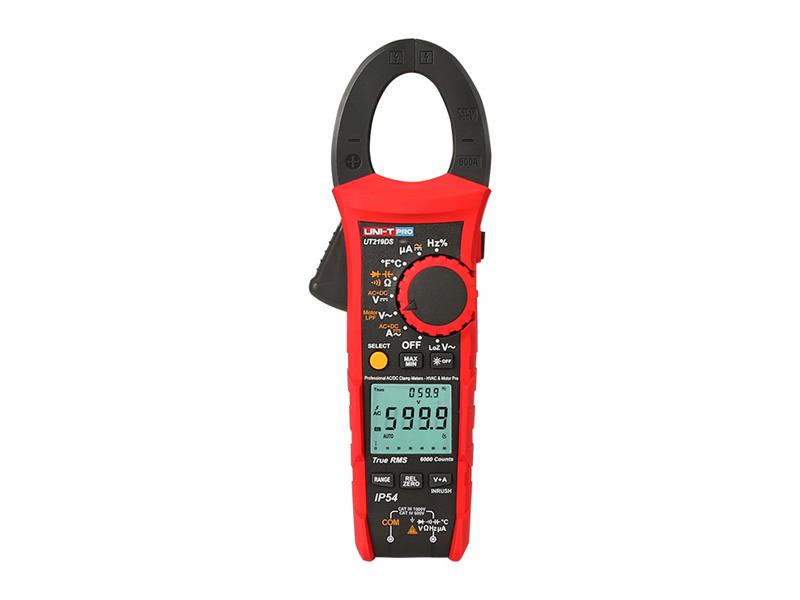

UNI-T UT219DS PRO Line Clamp Meter
This product comes with a 3-year warranty. UT219DS Professional Clamp Meter
The UT219 series is a professional clamp meter with a true 600A RMS rating and CAT IV 600V rating. It is industrially designed with an IP54 rating and can withstand a 2-metre drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.
1. LoZ input for phantom voltage measurement
2. Flashlight and automatic backlight
3. Three-phase motor sequence test
4. Temperature and μA measurements (flame sensor)
5. Inrush current
6. AC+DC voltage
7. Dual V+A display
Specifications:
- AC current (A): 600A ±(1.8%+6)
- DC current (A): 600A ±(1.8%+6)
- AC voltage (V): 1000V ±(1.8%+6)
- DC voltage: ±(1% > -0) ±(0.6% + 3)
- ACV LoZ: 600V ±(2.5%+6)
- Resistance (Ω): 60MΩ ±(1%+3)
- Capacitance (F): 60mF ±(4%+7)
- Frequency (Hz): 60.1%+60.0 MHz ±(~0.00 MHz)
- Duty cycle: 0.1%–99.9% ±(2.6%+7)
- Temperature: -40~1000℃ ±(2%+5℃)
-40–1832℉ ±(2%+9℉)
Display
6000-digit display
Auto/manual range: √
Jaw opening 33mm
True RMS: √
AC frequency response 40Hz–400Hz
AC voltage frequency response 40Hz~1kHz
Three-phase motor sequence test
Three-phase motor sequence test
1kHz, 3dB attenuation: √
V+A displays voltage and current simultaneously: √
Diode test: 3V
Measurement sampling rate: 5 times/s
Analogue bar sampling rate: 20 times/s
Analogue interface
D31 segment (LCD)
Auto power off/MAX/MIN: √
Low battery indication: √
Data hold (H)/Relative mode (REL): √
ZERO mode: √
Function selection (SELECT): √
Auto backlight/2 m drop test IP:
√ Input impedance 5:
≥10MΩ
General features:
Power: 1.5V battery (R03) x 3
Display: 35mm x 31mm
Product colour: Red and grey
Net product weight: 310g Product dimensions:
382mm x 34mm
Standard accessories: test leads, batteries, carrying case, spot contact temperature probe
Standard individual packaging: Gift box, blister pack, English manual
Standard quantity per box: 10 pcs
