UNI-T UT181A Multimeter
The UNI-T UT181A is a smart portable multimeter with automatic or manual range switching that measures RMS, maximum, minimum or average values. The device belongs to a superior class, excels in quality design and reliability, and is suitable for industrial use. It is water and dust resistant, rated IP65. The display is a backlit graphic LCD with a maximum resolution of 4 5/6 digits, the maximum display value being ±60,000. The multimeter allows measurement of AC/DC voltages and currents, resistance, diode testing, continuity testing, capacitance, frequency, duty cycle, temperature, conductivity, comparative measurement, relative value measurement, data peak detection up to 02000 and data logging. The device allows data to be stored on a PC using an optically isolated USB adapter or Bluetooth. The display includes an analogue bar graph with 61 segments. The multimeter has an internal clock that displays the time and date, which can be automatically assigned to stored samples of measured values at intervals ranging from 1 second to 1 hour, including storage time (up to days). Option to include a low-pass filter for measurements on inverters and generators. Temperature measurement is possible on two channels. The fuses are protected by tubular fuses (10A FF 10A H / 1000V fuse (10 x 38mm); mA/µA FF 800mA H / 600V fuse (6 x 32mm)). The device can test its own fuses (without opening the device). The multimeter is powered by a 7.4V/2000mAh lithium battery. Test leads with CAT III 1000V and CAT IV 600V safety-rated tips are included.
Product specifications:
- fully complies with IEC / EN61010-1 and has double insulation
- classified as CAT III 1000V - internal installation including three-phase distribution
- classified as CAT IV 600V - external electrical installation (fuse elements, start of internal installation)
- Colour display (64K colours), 3.5" TFT LCD graphic display with 320 x 240 pixel resolution
- maximum display is 60,000,
- 60,000-count frequency measurement display
- Display for automatic or manual capacitance measurement 60-
accuracy
- AC voltage measurement ranges - 60 mV / 1000 V for frequencies from 45 Hz to 100 kHz
- AC current measurement ranges - 600 μA / 10 A for frequencies from 45 Hz to 10 kHz
- DC measurement range / V - 160 mV - 160 mV DC current measurement ranges - 600 μA / 10 A
- AC+DC measurement ranges (AC voltages with DC component) - 60 mV / 1000 V
- AC+DC measurement ranges (AC currents with DC component) - 600 µA / 10 A
- Resistance range 600 µA / 10 A
- 60 mV / Ω
- Capacitance measurement ranges - 6.00 nF / 60.00 mF
- Measurement ranges from 60 Hz to 60 MHz
- Square wave generator from 0.5 Hz to 4800 Hz
- Measurement range from 10% to 99% (10 Hz to 10 Hz) of the pulse width
-02k-0 250.0 ms
- Conductivity measurement range 60 nS
- Temperature measurement range: -40°C to 1000°C (with supplied K-type nickel-chromium-nickel-silicon thermocouples only up to +230°C)
- analogue bar graph measurement scale, voltage measurement 61 bar graph, TRRM/61 voltage division, voltage and currents
- during AC voltage measurement, the frequency or duty cycle of the voltage can be measured on the secondary display
- on the secondary display, it is possible to measure the AC component superimposed on DC voltage
- data logging of 20,000 values
- possibility of relative measurement of the s, B value on a logarithmic scale with simultaneous display of voltage on the secondary display in V
- ability to store samples of measured values at intervals ranging from 1 second to 1 hour, including the duration for which data is to be saved (up to days)
- Measurement of MAX and MIN peaks with a 1 ms response time
- Indication of loose connections
- Automatic setting of battery shutdown time
- Battery auto-shutdown indicator (in MENU)
- Overload protection for voltage inputs
- Current input protection with fast-acting fuses
- Input impedance 10MΩ
- Testing of diodes and semiconductor junctions with voltages from 0 to 3V
- Powered by a 7.4V / 2000mAh Li-ion battery; the USB cable can be downloaded from the manufacturer’s website; the software can be downloaded from the manufacturer’s website: https://meters.uni-trend.com/product/ut181a/
- Optional UT-D08 Bluetooth adapter available
- Supplied with a 10V DC / 500mA power supply and accessories
- EMF measurement is possible at 1V/m with an additional error of 5%
Technical parameters
. :
(Accuracy is defined at 23 °C ± 5 °C and relative humidity less than or equal to 75%; calibration is recommended once a year)
- DC voltage measurement (input impedance is 10 mΩ):
(range/resolution/accuracy)
60.00 mV///range/resolution/accuracy)
600.00 mV / 10 µV / ± 0.025 % + 5
6.0000 V / 0.1 mV / ± 0.025 % + 5
60.000 V / ± 5.000 V / ± 0.1 mV / ± 0.1 mV 600.00 V / 10 mV / ± 0.03 % + 5
1000.0 V / 0.1 V / ± 0.03% + 5
- AC voltage measurement (input impedance approx. 10 MΩ; 45 Hz to 1 kHz; 1 kHz to 1 kHz; 1 kHz to 1 kHz; 10 kHz to 20 kHz; 20 kHz to 100 kHz):
(range / resolution / accuracy up to 1 kHz / accuracy up to 10 kHz / accuracy up to 20 kHz / accuracy up to 20 kHz) mV / 1µV / ± 0.6 % +60 / ± 1.2 % + 60 / ±3 % + 60 / ±4 % + 60
600.00 mV / 10 µV / ± 0.3 % +30 / ± 1.2 % + 40 / ±4 % / ±4 % / ±4 %
6.0000 V / 0.1 mV / ± 0.3 % +30 / ± 1.2 % + 40 / ±3 % + 40 / ±4 % + 40
60,000 V / 1 mV / ± 0.3 % +30 / ± 1.2 % + 40 / ± 1.2 % + 4 % / ± 4 % / ± 4 % / ± 4 %
600.00 V / 10 mV / ± 0.3 % +30 / ± 1.2 % + 40 / ±3 % + 40 / for guidance only
1000.0 V / 0.1 V / ± 0.6 % + 30 / ± 3 % + 40 / ± 6 % ++ cc
< / for guidance only
voltage measurement (input impedance approx. 10MΩ; 45Hz to 1kHz; 1kHz to 10kHz; 10kHz to 35kHz):
(range / resolution / accuracy up to 1 kHz / accuracy up to 1 kHz / accuracy up to 1 kHz / accuracy up to 1 kHz 35 kHz)
60.00 mV / 1 µV / ± 1 % +80 / ± 3 % + 40 / ± 6 % + 60
600.00 mV / 10 µV / ± 1 % +80 / ± 3 % + 40 / ± 6 % + 60 / ±6 %/0. / ± 1 % +80 / ± 3 % + 40 / ±6 % + 40
60,000 V / 1 mV / ± 1 % +80 / ± 3 % + 40 / ±6 % + 40
600.00 V / 10 mV / ± 1 % indicative only / 80 / ± 1 % + 80 / ± 1 % indicative 1000.0 V / 0.1 V / ± 1.2 % + 80 / indicative only / indicative only
- DC measurement:
(range / resolution / accuracy)
600.0 μA / 0.01 μA / ± 0.20 μA / ± 0.20 μA / + 0.20 μA / . μA / ± 0.25 % + 2
60,000 mA / 1 μA / ± 0.7 % + 2
600.0 mA / 10 μA / ± 0.15% + 2
6,000 A / 0.1 mA / ± 0.1 mA / ± 1.0 1 mA / ± 0.5 % + 2
- AC current measurement (45 Hz to 1 kHz; 1 kHz to 10 kHz):
(range / resolution / accuracy up to 1 kHz / accuracy up to 10 kHz)
0 μA / 0 μA ± 0.6% + 40 / ± 1.2% + 40
6000.0 μA / 0.1 μA / ± 0.6 % + 20 / ± 1.2 % + 40
60,000 mA / 1 μA / ± 0.6% + 40% / ± 4% + 40%
600.00 mA / 10 μA / ± 0.6 % + 20 / ± 1.2 % + 40
10,000 A / 1 mA / ± 1 % + 20 / ± 3 % + 40
- AC+DC current measurement up to (1 kHz to 10 kHz at; 10 kHz):
(range / resolution / accuracy up to 1 kHz / accuracy up to 10 kHz)
600.00 μA / 0.01 μA / ± 0.8 % + 40 / ± 2 % + 40 / ± 2 % + 40 μA / ± 0 μA / ± 0 μA / ± 0.01 μA 0.8 % + 20 / ± 2 % + 40
60,000 mA / 1 µA / ± 0.8 % + 40 / ± 2 % + 40
600.00 mA / 10 µA / ± 0.8% + 20 / ± 1% / 0.0% + 40
± 1.2 % + 20 / ± 3 % + 40
- Resistance and conductivity measurements:
(range / resolution / accuracy)
600.00 Ω / 0.01 Ω / In REL mode: ± 0.05 %/0.01 Ω / 0.05 %/0 Ω 0.1 Ω / ± 0.05 % + 2
60,000 kΩ / 1 Ω / ± 0.05 % + 2
600.00 kΩ / 1 Ω / ± 0.05 % + 2
6.0000 MΩ / 0.1 kΩ / ± 0.1 kΩ / 0.1 kΩ / ± 0.1 kΩ / 1 Ω / ± 0.05 % + 2 60.000 MΩ / 1 kΩ / ± 2 % + 10
60.00 nS / 0.01 nS / ± 2 % + 10 (S = Siemens unit)
- Capacitance measurement:
6,000 nF / 1 pF / ± 3.0 % + 10
60.00 nF / 10 pF / ± 2.5 % + 5
600 nF to 600 µF / 0.1 nF to 0.01 µF / ± 2.5 % / ± 6 mF / ± 2.5 % + 5
% + 5
60 mF / 10 µF / Not specified
- Measurement of frequency, duty cycle and period (pulse width):
(range / resolution / accuracy)
60.0.0.0.000 Hz / Hz / ± 0.000. % + 8
600 Hz to 60 MHz / 0.01 Hz to 0.001 MHz / ± 0.01 % + 5
10 % to 90 % (10 Hz to 2 kHz) / 0.01 % / ± 1.2 % + 30 µs / ± 25 µs / ± s / s 1.2 % + 30
- display type: 64K colour TFT LCD, with 320 x 240 px resolution
- number of digits: 60,000
- analogue display: 61 segments
- power supply: 7.4V Li-ion battery / 1000 mAh with 10A H / 1000V fuse (10 x 38mm)
- fuse: 800mA H / 1000V (6 x 32mm)
- device dimensions: 225 x 103 x 59 mm
- Weight: approx. 6°C to operating temperature
- 50°C
- relative operating humidity at 0°C to 30°C less than or equal to 80%; at 30°C to 40°C less than or equal to 75%; at 40°C to 50°C less than or equal to 45%;
- operating altitude; 30°C to 60°C
- Option to purchase a UT-D07 Bluetooth adapter for transferring data to a PC
- The device complies with the following standards:
cETLus, CAT III 1000V, CAT IV 600V, double insulation, overvoltage protection < 1/00 V 61326-1: 2013; EN 61326-2-2: 2013
EN 61010-1: 2010; 61010-1, 61010-2-030
Certified to CSA STD C22.2 No. 61010-1, 61010-2-030, 61010-2-033
- Manufacturer: UNI-TR/
Package contents:

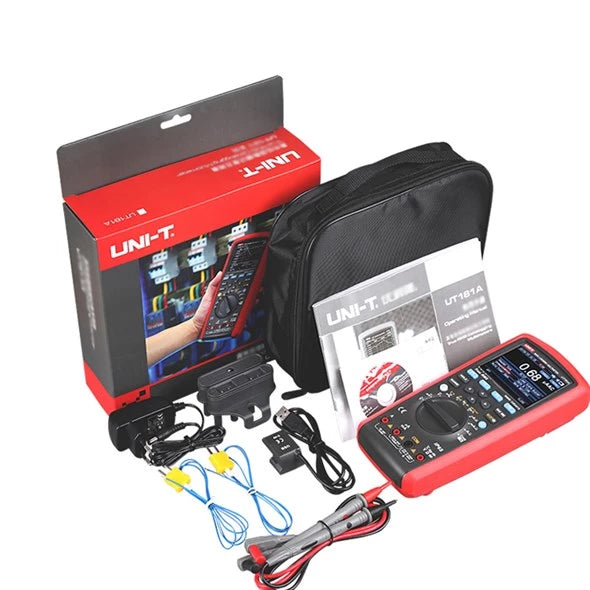

- UT181A multimeter with storage case
- 7.4V / 2000mAh Li-ion battery - in the device
- Fuse F1: FF 800 mA H 1000 V (6 x 32 mm) – in device
- Fuse F2: FF10 - 1000 V (FF100) in device
- 1 x USB cable with opto-electronic converter
- 2 x Type K thermocouple (nickel-chromium-nickel-silicon) up to +230°C
- 1 pair of test leads with CAT III 1000 V, CAT IV 600 V tips
- 1x DC charging connector
-
10V / 500mA
- user manual in Czech, Slovak and English
