Description

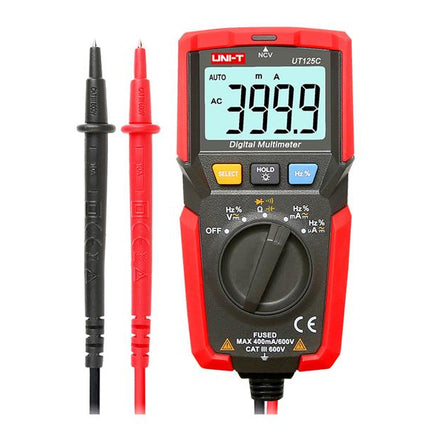

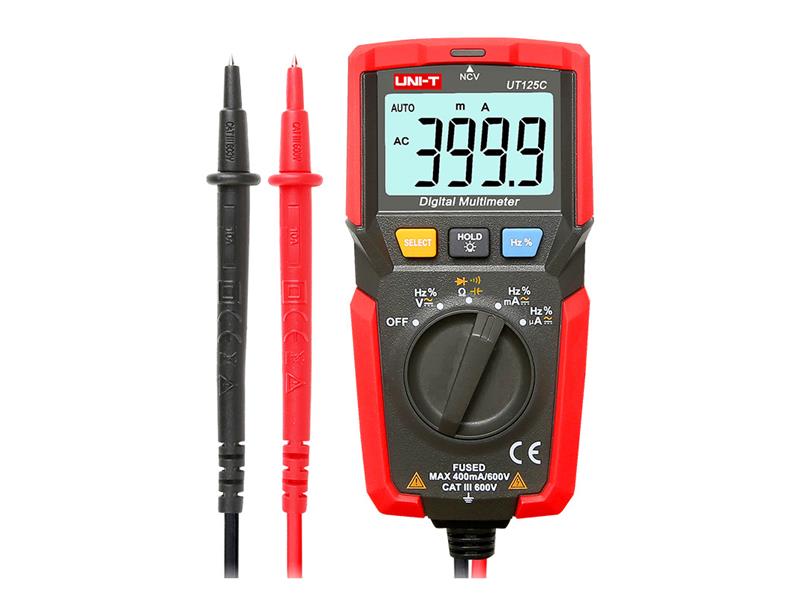

UNI-T UT125C Multimeter
This product comes with a 3-year warranty. A reliable pocket multimeter with a digital display showing up to 4,000 digits. An ideal tool for measuring voltage and current, resistance, capacitance and continuity for both DC and AC, with overload protection. In this price range, the device is also equipped with additional functions, including NCV, frequency measurement and display backlighting. The UT125C complies with CAT III 600V and cETLus certifications.
Multimeter functions:
AC voltage measurement - 4 V / 600 V
DC voltage measurement - 400 mV / 600 V
AC current measurement - 400 μA / 400 mA
DC current measurement - 400 μA / 400 mA Resistance measurement - 400 μA - mA Ω / 4 MΩ
Frequency measurement - 9.999 Hz - 60 kHz
Duty cycle measurement - 20% / 80%
Non-contact voltage measurement (NCV)
Capacitance test - 50 nF / 100 μF
DiLine continuity test
Continuity test
Manual range selection
Reverse polarity detection
Data hold
Display backlight
Auto power off when idle
Integrated test leads
Low battery indication
Overload protection, fuse protection
Technical specifications:
Technical parameters:
AC resolution, accuracy:
4 V / 0.001 V / ± 1.2 % + 5
40 V / 0.01 V / ± 1.2 % + 5
400 V / 0.1 V / ± 2 % + 10
600 V / 1 V / ± 2 % + 10 V / ± 2 % + 10
Voltage resolution (measurement, accuracy, DC voltage,
)
400 mV / 0.1 mV / ± 1 % + 8
4 V / 0.001 V / ± 0.5 % + 5
40 V / 0.01 V / ± 0.5 % + 5
400 V / 0.1 V / ± 50 / ± 0.8 V / 6 %
0.8 % + 5
AC measurement (range, resolution, accuracy):
400 μA / 0.1 μA / ± 2 % + 8
4 mA / 0.001 mA / ± 2 % + 8
40 mA / 0.01 mA / ± 2 % / 0.01 mA / ± 2 % / 8
0.1 mA / ± 2 % + 8
Direct current measurement (range, resolution, accuracy):
400 μA / 0.1 μA / ± 1.8 % + 5
4 mA / 0.001 mA / ± 1.8 % + 5
400 μA / 0.1 μA / ± 1.8 % + 5
4 mA / 0.001 mA / ± 1.8 % + 5
40 %
400 mA / 0.1 mA / ± 1.8 % + 5
Resistance measurement (range, resolution, accuracy):
400 Ω / 0.1 Ω / ± 1 % + 5
4 kΩ / 1 Ω / ± 1 % + 5 Ω / ± 1 Ω / ± 1 % + 5 Ω / ± 1 Ω / ± 1 % + 5 Ω
400 kΩ / 100 Ω / ± 1 % + 5
4 MΩ / 1 kΩ / ± 1.2 % + 10
40 MΩ / 10 Ω / ± 2 % + 10
Frequency measurement (range, resolution, accuracy,
Duty cycle measurement
20 - 80 %
Capacitance test (range, resolution, accuracy):
50 nF / 0.01 nF / ± 4 % /> 30 nF / ± 30 nF / ± 30 nF 3 % + 15
5 μF / 1 nF / ± 4% + 10
50 μF / 10 nF / ± 4 % + 10
100 μF / 100 nF / ± 4 % + 10
The device complies with IEC 16101 ST-D, 100 nF / ± 4 % + 10 61010-2-030, 61010-2-033, 61010-031
CAT III 600V, double insulation, overload protection, pollution class II
Dimensions (mm): 112 x 58 x 35 mm
Power supply: 2 x AA/approx. 180 g (including batteries)
Operating temperature: 0 - 50°C
Manufacturer: UNI-TREND
