Description

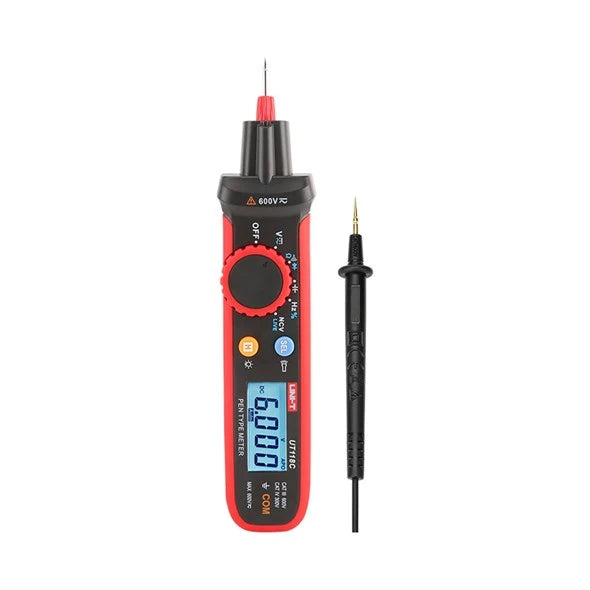

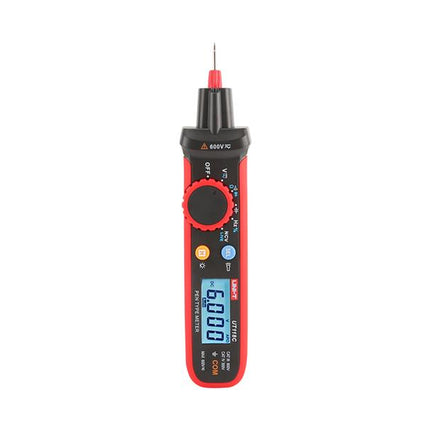

This product comes with a 3-year warranty. A miniature digital multimeter with an attractive and practical design, the UT118C Pen-type is a lightweight and durable instrument featuring a True RMS measurement function, ensuring accurate readings. With the ability to measure voltages up to 600V AC/DC, a wide range of resistance and capacitance measurements, and gold-plated test leads with special tips for versatility and safe operation (CAT III 600V and CAT IV 300V), it is an excellent and cost-effective choice for DIY appliance repairers. It indicates live wires, ensuring greater safety when inspecting electrical equipment.
Product specifications:
- True RMS
- 6000-count display
- CAT III 600V/CAT IV 300V
- Voltage measurement 600 V DC/AC
High resistance measurement capacity > 600 V DC/AC
600 V
measurement: 60mF
- two-stage tip length adjustment
- gold-plated test leads with special tips, hardened phosphor bronze
- certification: CE (EMC, LVD), ROHS
Technical parameters:
- AC voltage (V60): V60/V/60 ±(1%+3)
- DC voltage (V): 6 V / 60 V / 600 V ±(1%+4)
- Resistance (Ω):
600 Ω / 6 kΩ / 60 kΩ / / 600 kΩ ±(1%+3)
600 Ω / 6 kΩ / 600 kΩ ±(1%+3)
+5 MΩ/600 kΩ ±(1%+3)
6 MΩ ±(2.5%+5)
- capacitance:
600.0 nF / 6 μF / 60 μF / 600 μF ±(3.5%+8)
6 mF ±(5.0%+9)
60 mF ±(10.0%+9) frequency:
+9) 999.9 Hz / 9.999 kHz / 99.99 kHz / 999.9 kHz ±(0.01%+5)
- max. display: 6000
- Alternating: 0.1% to 99.9%
- NCV / LIVE test
- True RMS
- Diode test
- Resistance test
- Auto range
- 36 x 15 mm HTN LCD display / Dual-colour source indicator
AAA-1. package)
- Product dimensions: 182.5 mm x 38.0 mm x 38.5 mm
- Product colour: grey + red
Manufacturer: UNI-TREND
