UNI-T UDP 1306C DC Power Supply

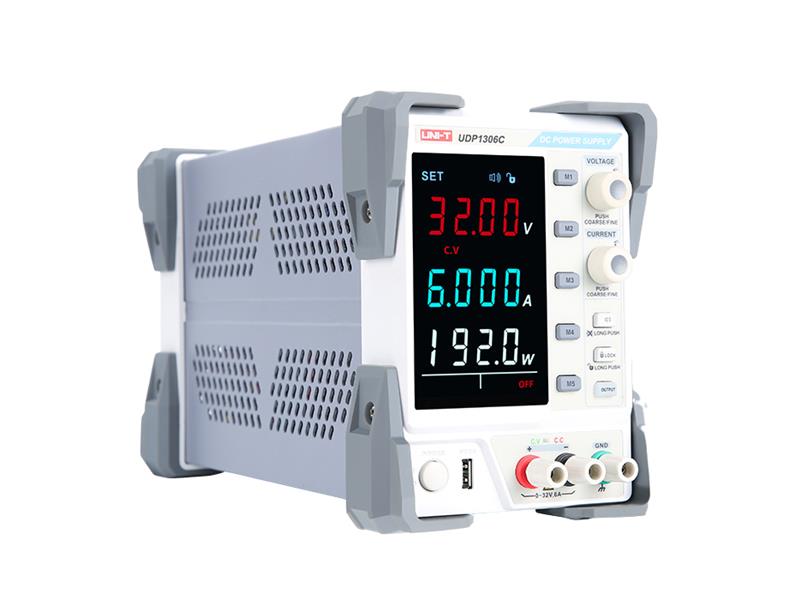

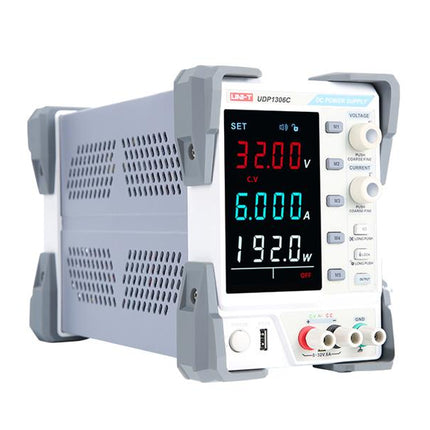

The UDP1306C programmable DC power supply is a cost-effective laboratory power supply featuring a main output channel and a USB charging channel. It is a basic power supply for users who require a smaller, highly reliable power supply. Compared to the higher-end (multi-channel) UDP power supplies, this model allows for a higher channel load, up to 6A at a voltage of 32V.
The power supply contains a classic linear transformer and allows operation in constant voltage (CV) mode within the range of 0 to 32V or in constant current (CC) mode from 0 to 6A. In addition, there is a USB connector on the front panel, which can be used to charge, for example, a mobile phone at a voltage of 5V and a current of up to 3A.
The laboratory power supply features an EBTN display with three high-precision indicators that simultaneously display voltage, current and power with 4-digit accuracy.
The power supply has programmable parameters. It features 5 memory slots for easy storage and recall of set modes, and a lock button to prevent unwanted changes to the parameters. On the rear of the power supply housing are USB-Device and RS232 connectors, and a DIGITAL I/O interface for remote control of the power supply. Using the supplied software, it is possible to record and display the consumption or load characteristics of the connected load in real time on the connected PC in an Excel spreadsheet or graph, and communication with the computer can be carried out via SCPI commands.
Regular calibrations can be performed via the software.
The power supply contains an overheat-controlled fan; the long-term temperature of the power supply is monitored by an overheat fan, which shuts down the power supply when the limit value is reached and restarts it after cooling.
Product parameters:
- fine software adjustment of output voltage and current
- three four-digit displays for immediate monitoring of voltage, current and power
- Voltage setting from 0 to 32V with a resolution of 60V, current setting from 0 to 32V with a resolution of 6mV
- power supply operation in constant voltage (CV) or constant current (CC) mode
- Overvoltage protection (OVP), overcurrent protection (OCP), over-temperature protection (OTP)
- one channel for charging, e.g. a mobile phone via the USB port on the front panel

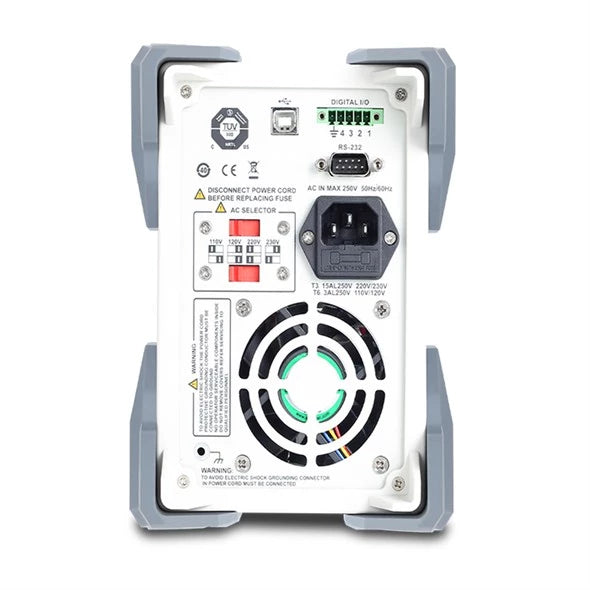

- USB-Device, RS232 and DIGITAL I/O interfaces on the rear panel
- built-in buzzer to indicate status changes
- Lock buttons to prevent unwanted changes to parameters
- Intelligent temperature-controlled cooling fan
- Automatic power cut-off in the event of transformer overload
- on the rear panel, input voltage selector 110V/120V/220V/230V (AC 50/60Hz)
Technical parameters:
- rated output voltage: 0 to 32V
- rated output current: 0 to 32V
- rated output current: 0 to approx. 192 W
- Voltage/current setting resolution: 10 mV/1 mA
- Voltage setting accuracy in (CV) mode: ≤ (0.01% of measured value + 3 mV)
- current setting accuracy in (CC) mode: ≤ (0.1% of measured value plus noise +3mA (-5 mA) at 20MHz) at the main output: ≤2mV RMS / ≤3mA RMS
- Nominal voltage/current protection at the USB output: 5V ± 5%/3A
- Voltage/current temperature coefficient: ≤ 300ppm/°C // ≤ 300ppm/°C // ≤ 300ppm/°C supply voltage
-°C 110V/120V/220V/230V / (50/60Hz)
- Protection (for 110/120V AC power supply): fuse type: T6.3AL/250V (20x5mm)
- protection (for 220/230V AC power supply type: fuse T6.3AL/250V/AC): 35V/250V (20x5mm)
- dimensions (width x height x depth): 136 x 194 x 327mm
- weight: approx. 7.5 kg
Contents of individual package:
- UDP1306C laboratory power supply: 1 pc
- power cable: 1 pc
- USB-A to USB-B interface cable (UT-D14): 1 pc
- Set of connection cables with alligator clips: 1 set
- user manual: 1 pc
- RS232 communication cable (on request): 1 pc
Packaging for bulk customers:
- Standard quantity per box: 1 pc
- Standard box dimensions: 505 x 270 x 335 mm - Gross weight of box: 6 kg
MANUFACTURER: UNI-T
PC software download link:
https://instruments.uni-trend.com/EU-EN/powersupplies/udp1306c.html
