Description

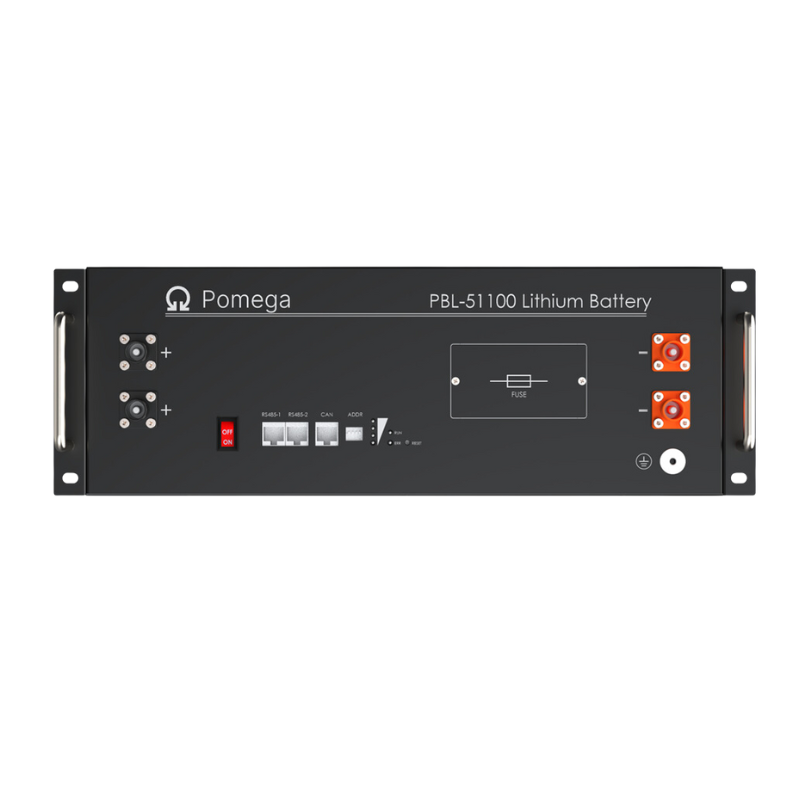

The Pomega PBL-51100 photovoltaic battery is the ideal solution for energy storage in residential and commercial photovoltaic systems. Featuring LiFePO4 (lithium iron phosphate) technology, this battery offers an extended service life, superior safety and high efficiency, and is compatible with a wide range of inverters.
Key features:
? Optimal storage capacity – 5.12kWh of energy, sufficient for a variety of applications.
⚡ High performance – Maximum charge/discharge current of 100A, ensuring a stable power supply.
? Extended service life – ≥6,000 cycles, for long-term use.
?️ Reliable operation in various conditions – Wide operating temperature range (-10°C to 55°C).
? Advanced connectivity – CAN and RS485 communication for smart integration.

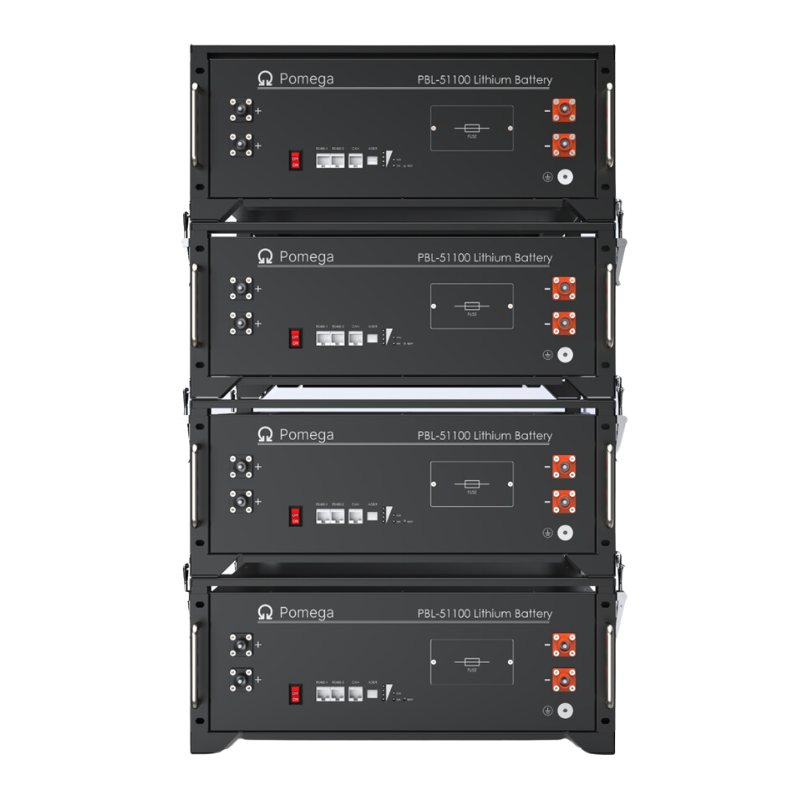

? High scalability – Up to 8 units can be connected in parallel for extended capacity.
✅ Advanced BMS protection – Integrated system for protection against overvoltage, overcurrent, undervoltage and other risks.
Technical data:
-
Battery type: LiFePO4 – Prismatic
-
Nominal voltage: 51.2V
-
Nominal capacity: 100Ah
-
Nominal energy: 5.12kWh
-
Operating voltage range: 44V - 56.8V
-
Standard charge/discharge current: 50A / 50A
-
Maximum charge/discharge current: 100A / 100A
-
Service life: ≥6000 cycles
-
Operating temperature: Charging 0–50°C / Discharging -10 to 55°C
-
Communication: CAN, RS485
-
Protections: UV, OV, OC, UT, OT, SC
-
Inverter compatibility: Deye, Victron, Senergy, Growatt, Hopewind
-
Dimensions: 446x532x160mm (3.5U, 19 inches)
-
Protection: IP20
The Pomega PBL-51100 battery is the perfect choice for those seeking energy independence, safety and an efficient solution for solar energy storage. Its easy integration and extensive compatibility make it suitable for both residential and commercial applications.
