Description

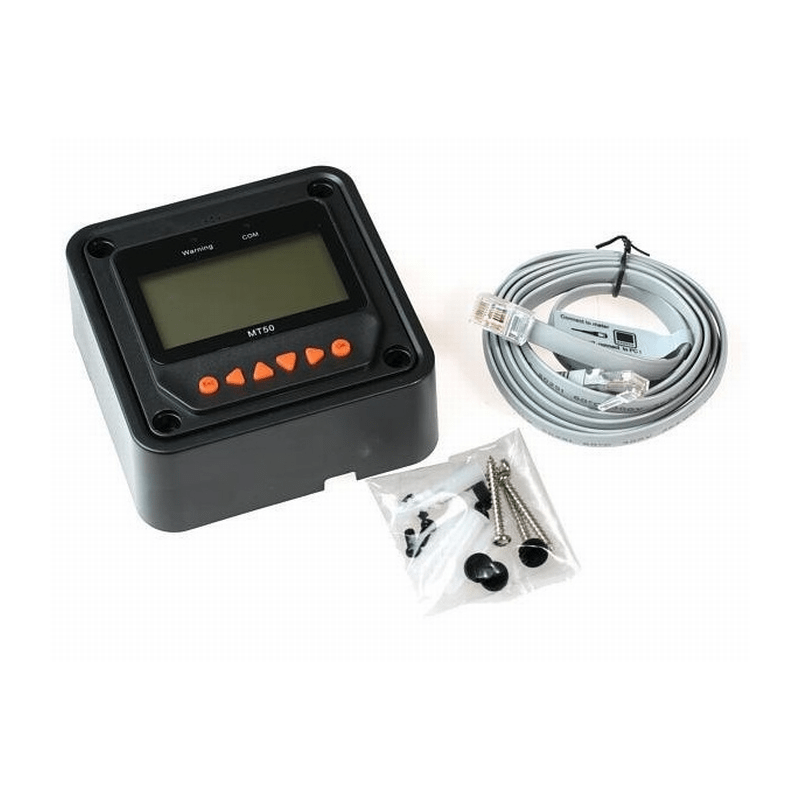

The MT50 display enables additional real-time monitoring of data and the operating status of the charge controller. It also allows the user to navigate and modify control and charging parameters. The MT50 is an optional remote meter that monitors and programmes the EPsolar controller, compatible with: LS-B, LS-BP, VS-BN, Tracer-BN, Tracer-A, eTracer, iTracer.
• Automatically identifies the controller and displays parameter data

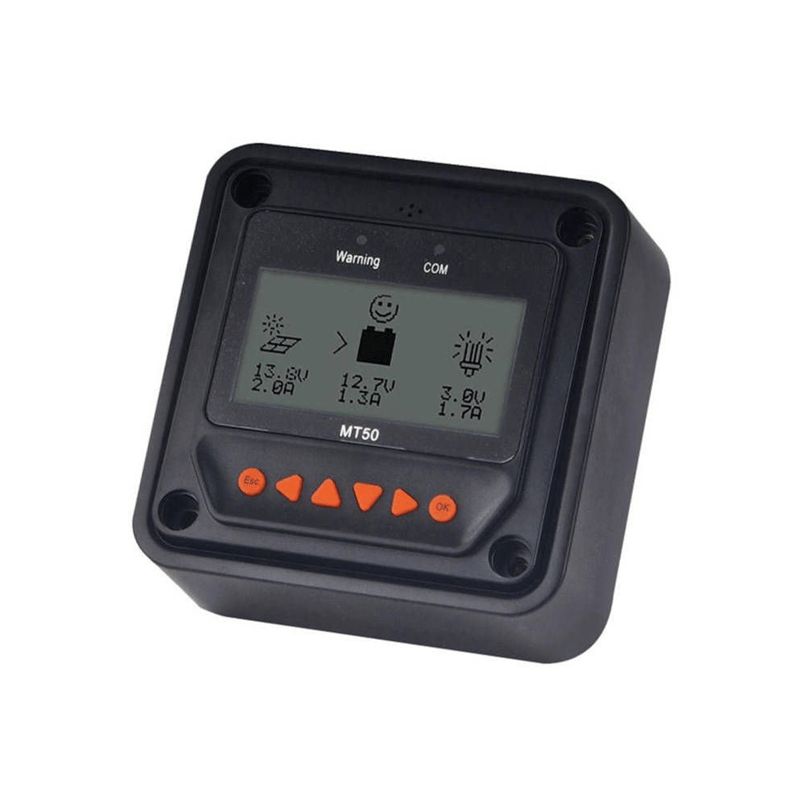

• The LCD screen displays all operating data and the system’s operating status
• Simple operation
• Real-time fault information alerts
• Long-range communication based on the RS485 system
• Control modes: Manual control, Light ON/OFF, Light ON + Timer, Time control
• Battery type selection: Gel, PB-Acid, User (programmable)
• Parameters can be changed and programmed
• Energy statistics display function
