Description

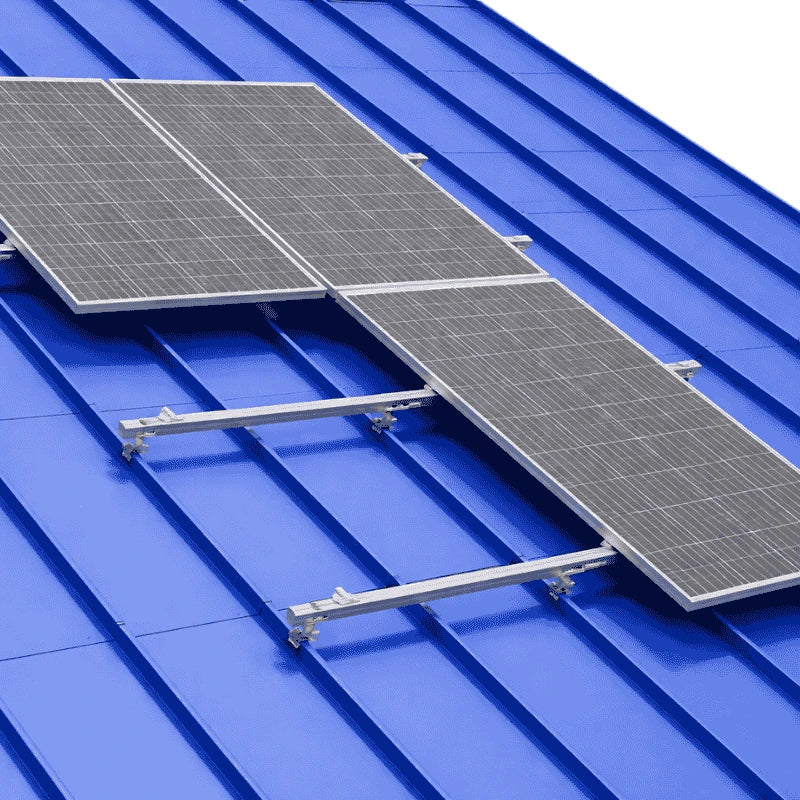

This mounting kit for 9 photovoltaic panels, arranged in a single row, is designed for installation on sandwich panel or trapezoidal sheet metal roofs, using the compact MiniRail K2 system.

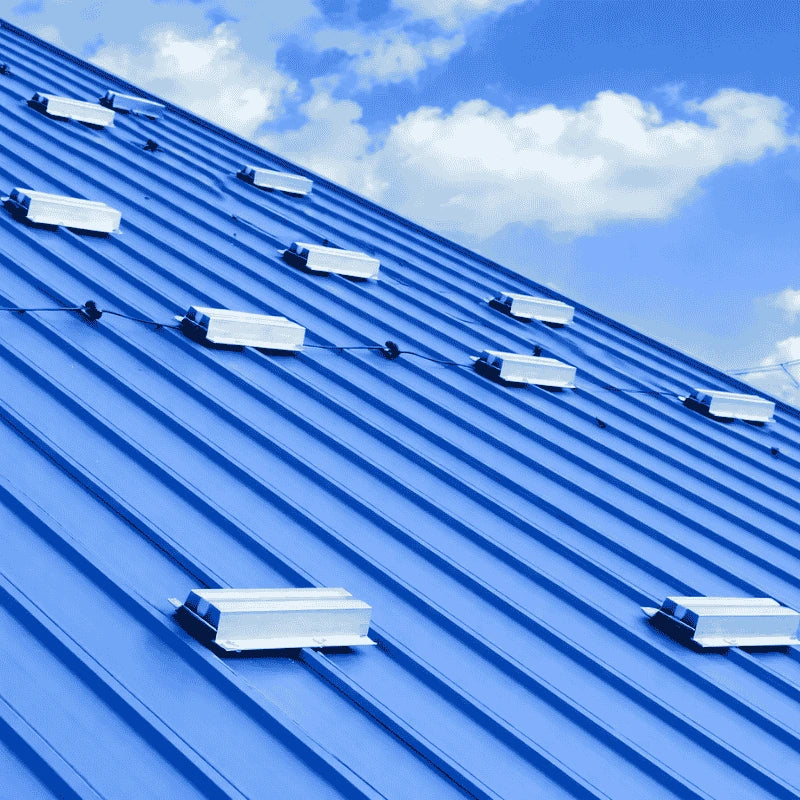

The MiniRail system allows for direct fixing to the roof without the use of long rails, which significantly reduces installation time and associated costs. It is the ideal solution for industrial halls, warehouses and commercial buildings, where quick installation and efficiency are essential.
By using mini-rails and dedicated clamps, the structure ensures a secure, watertight and durable fix, even under heavy-duty conditions.
? For 2-row mounting, the following combination is recommended:
- 1 x kit of 6 panels
- 1 x kit of 3 panels
This configuration offers flexibility and optimal distribution of components.

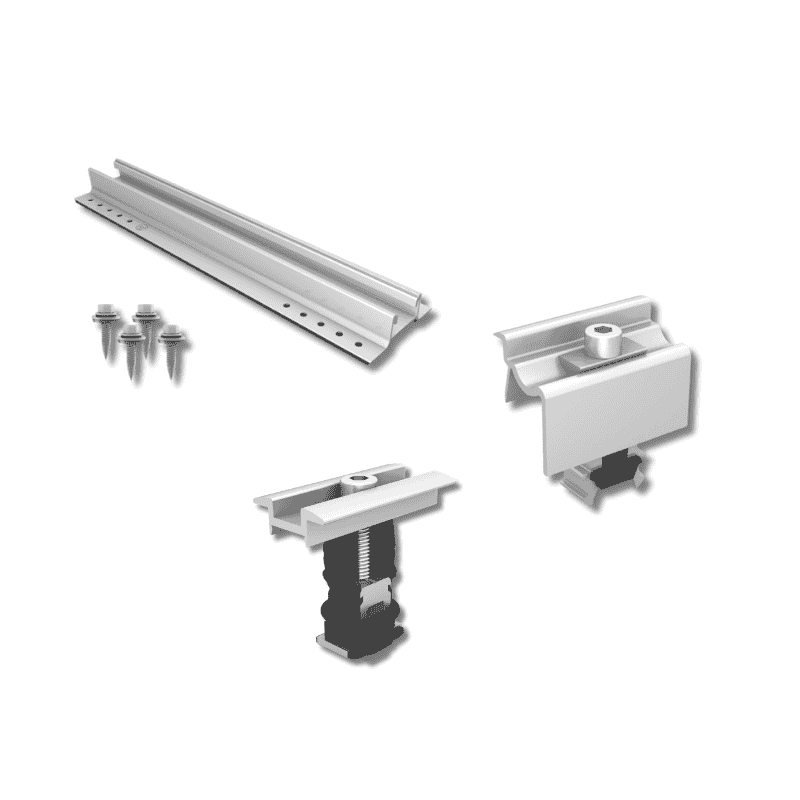

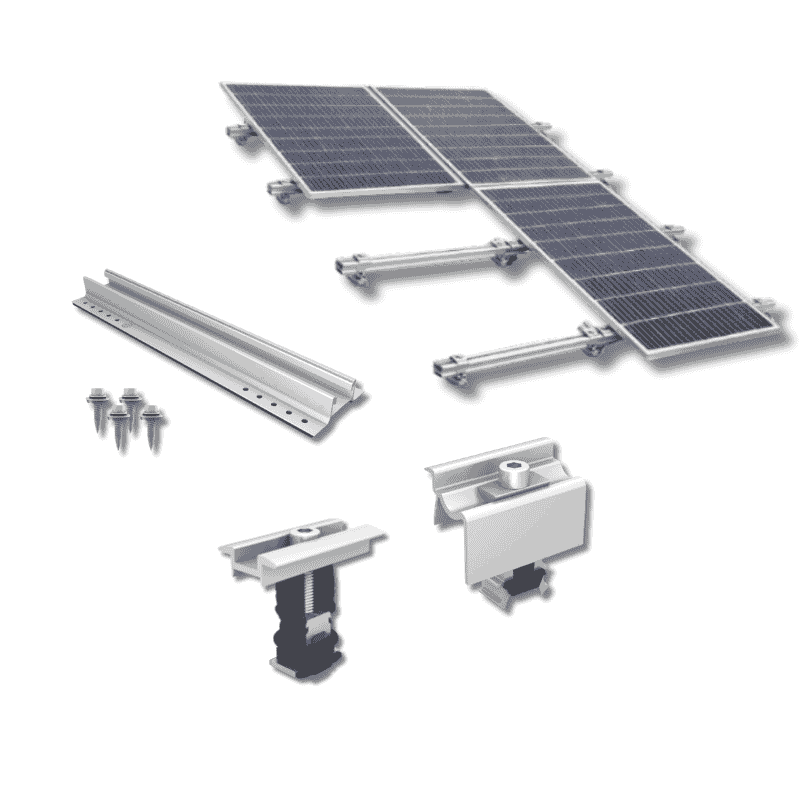

Kit contents
-
MiniRail MK2 Set (Generation 2), K2 (2004211) – 20 pcs
-
30-42mm photovoltaic panel end clamp, K2 (2002514) – 4 pcs
-
Double photovoltaic panel clamp 25-40mm, K2 (2004146) – 16 pcs
Key features
- Kit for 9 photovoltaic panels
-
Single-row configuration
- Mounting on sandwich panel / trapezoidal sheet metal
-
MiniRail K2 system
- No long rails
- Quick and efficient installation
- For 2 rows: 1 x 6-panel kit + 1 x 3-panel kit
Benefits
✔ Very quick installation
✔ Low installation costs
✔ Compact and efficient system
✔ Ideal for industrial applications
✔ Secure sealing and high durability
| General information |
| Product type |
Photovoltaic mounting structure kit |
| Number of panels |
9 panels |
| Configuration |
1 row |
| Roof type |
Sandwich panel / trapezoidal sheet metal |
| Compatibility |
| System |
MiniRail K2 Systems |
| Package contents |
| MiniRail 2004211 |
20 pcs |
| End clamp 2002514 |
4 pcs |
| Mid-section clamp 2004146 |
16 pcs |
| Configuration recommendation |
| For 2-row installation |
1 x 6-panel kit + 1 x 3-panel kit |
