Description

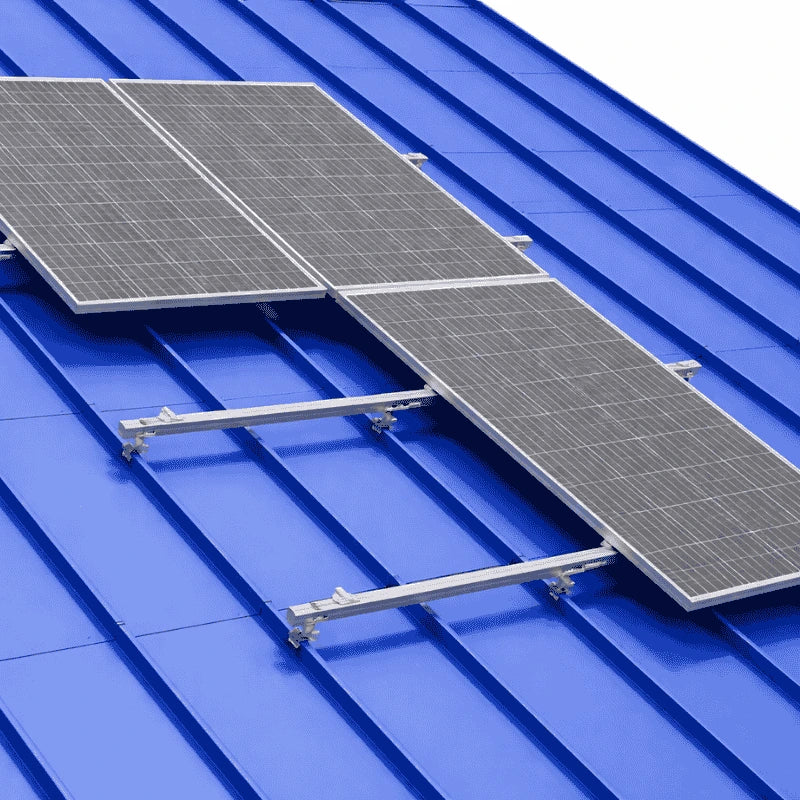

This mounting kit for 6 photovoltaic panels, arranged in a single row, is designed for installation on sandwich panel or trapezoidal sheet metal roofs, using the compact MiniRail K2 system.

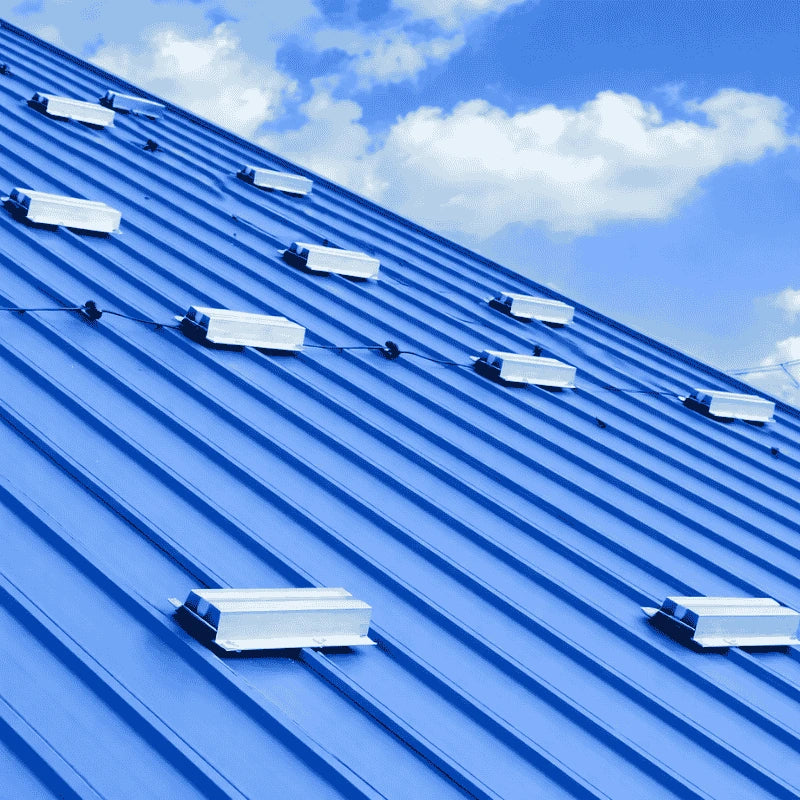

Unlike traditional systems with long rails, this kit uses mini-rails (MiniRail), which are mounted directly onto the roof, significantly reducing installation time and costs.
The system is ideal for industrial and commercial applications, where efficiency and speed of installation are essential. Fixing is carried out directly onto the sheet metal using self-tapping screws with gaskets, ensuring a watertight seal and long-term durability.
For mounting the panels in two rows, we recommend purchasing two kits of three panels for optimal distribution and flexibility in system configuration.

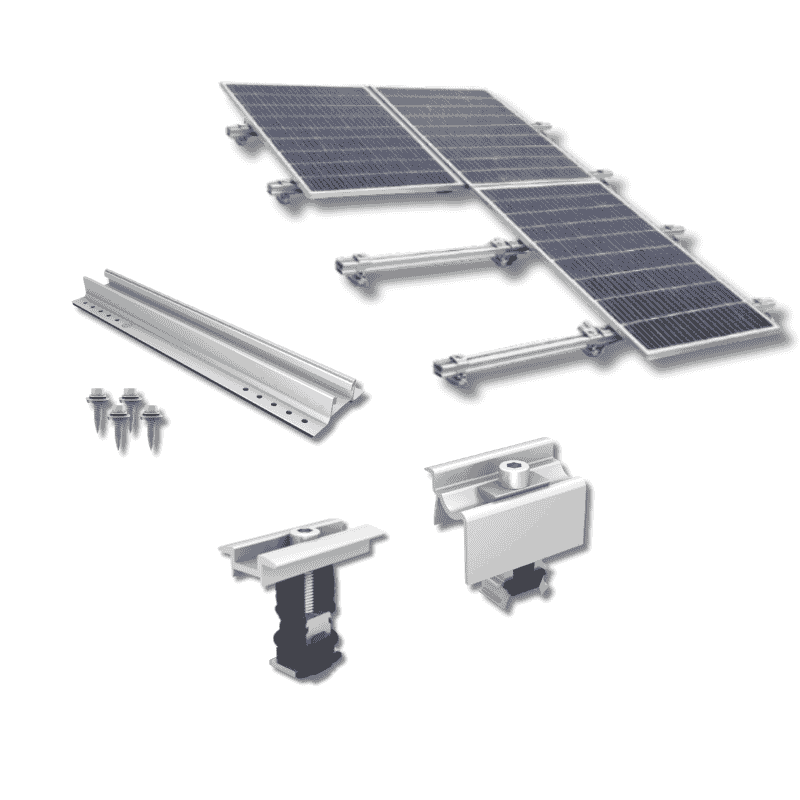

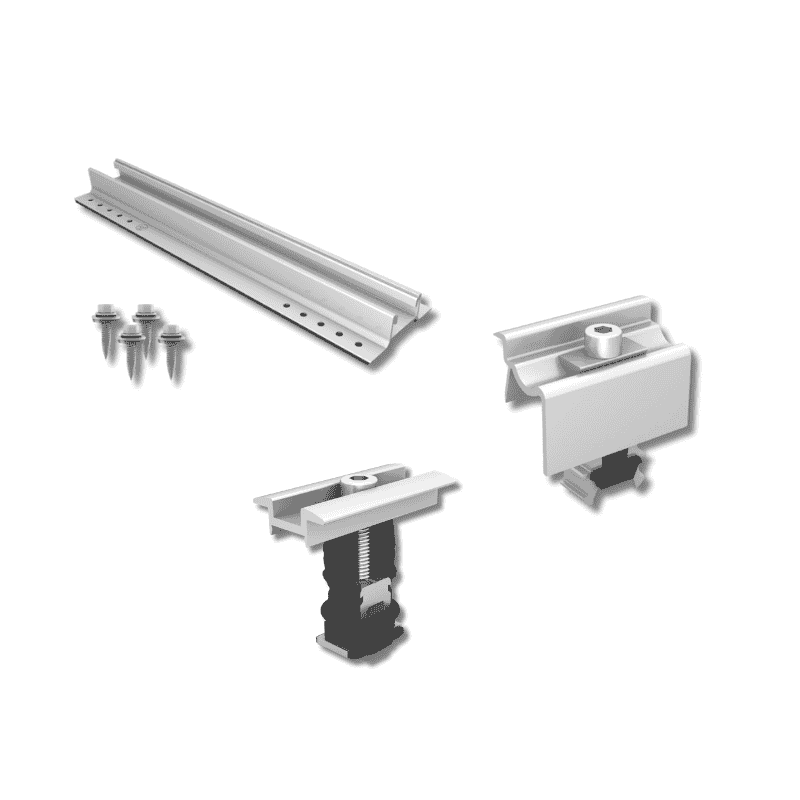

Kit contents
-
MiniRail MK2 Set (Generation 2), K2 (2004211) – 14 pcs
-
Photovoltaic panel end clamp 30-42mm, K2 (2002514) – 4 pcs
-
Double photovoltaic panel clamp 25-40mm, K2 (2004146) – 10 pcs
Key features
- Kit for 6 photovoltaic panels
-
Single-row configuration
- Mounting on sandwich panel / trapezoidal sheet metal
-
MiniRail K2 system
- No need for long rails
- Quick and efficient installation
- For 2 rows: 2 x 3-panel kits recommended
Benefits
✔ Quick installation (no long rails)
✔ Low installation cost
✔ Compact and efficient system
✔ Ideal for industrial halls and buildings
✔ Secure sealing
| General information |
| Product type |
Photovoltaic mounting structure kit |
| Number of panels |
6 panels |
| Configuration |
1 row |
| Roof type |
Sandwich panel / trapezoidal sheet metal |
| Compatibility |
| System |
MiniRail K2 Systems |
| Package contents |
| MiniRail 2004211 |
14 pcs |
| End clamp 2002514 |
4 pcs |
| Mid-section clamp 2004146 |
10 pcs |
| Configuration recommendation |
| For 2-row installation |
We recommend purchasing 2 kits of 3 panels |
