Description

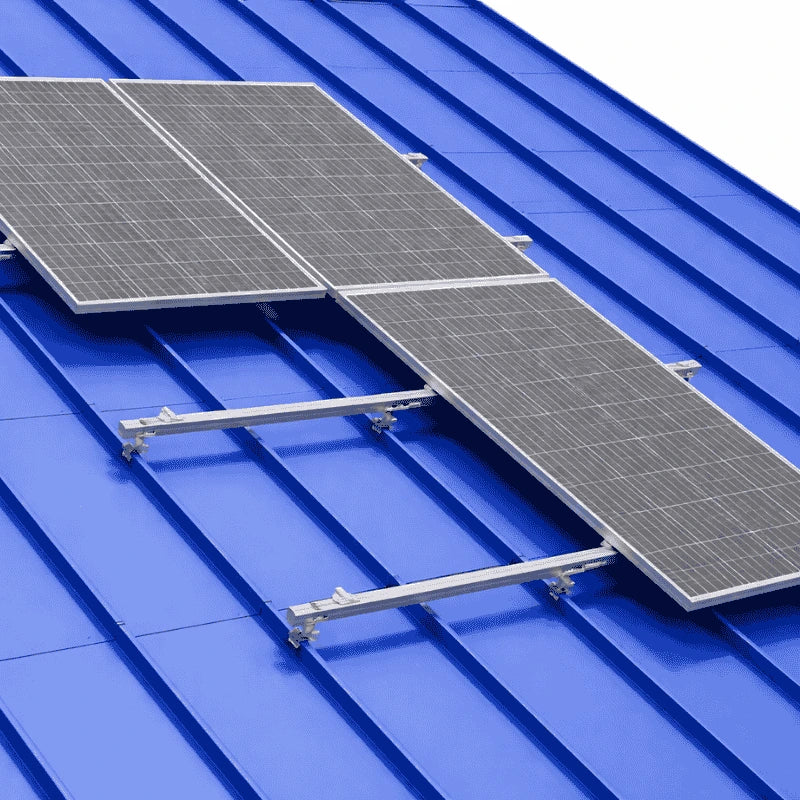

This mounting kit for 3 photovoltaic panels is designed for installation on sandwich panel or trapezoidal sheet metal roofs, using the compact MiniRail K2 system.
Unlike traditional systems with long rails, this kit uses mini-rails (MiniRail MK2), which are mounted directly onto the roof, reducing installation time and costs. The system is ideal for industrial or commercial roofs, where installation efficiency is essential.
MiniRail is compatible with corrugated sheet metal or sandwich panel roofs and includes self-tapping screws with a sealing gasket, ensuring a secure and watertight fix.

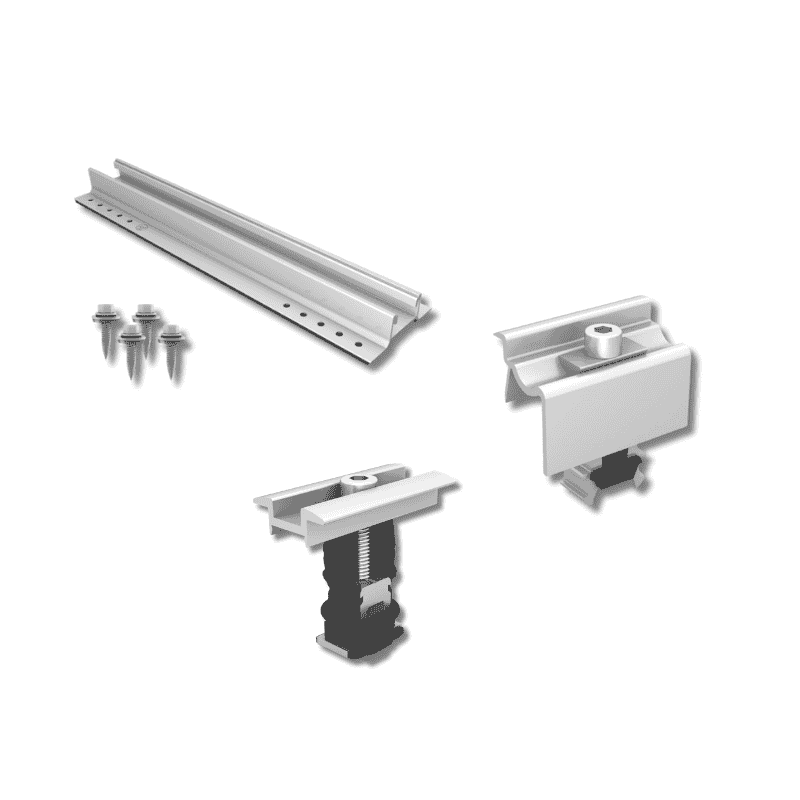

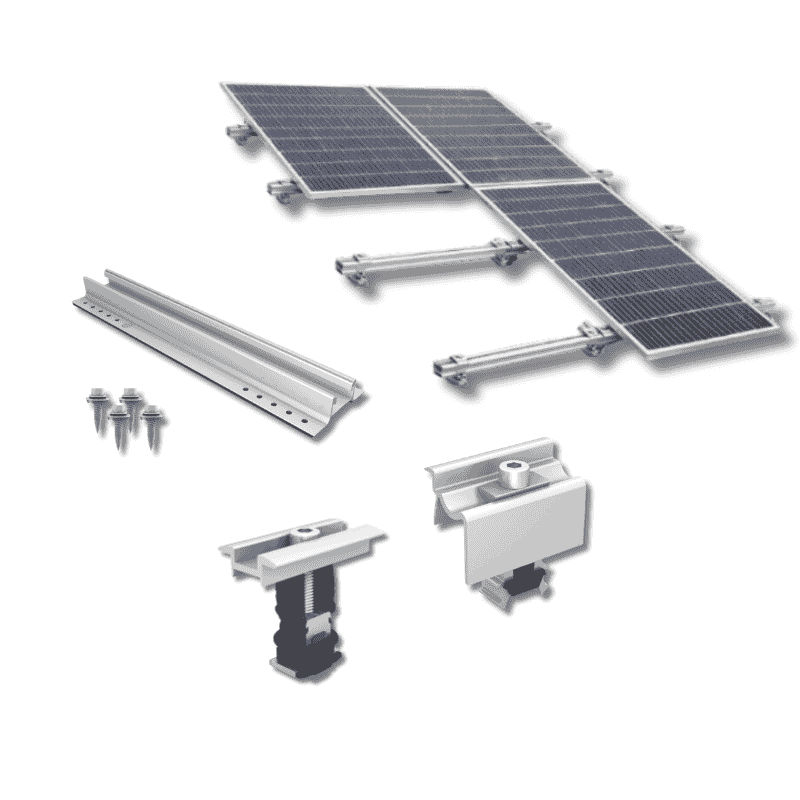

Kit contents
- MiniRail MK2 Rail Set (Generation 2), K2 (2004211) – 8 pcs
- Photovoltaic panel end clamp 30-42mm, K2 (2002514) – 4 pcs
- Double photovoltaic panel clamp 25-40mm, K2 (2004146) – 4 pcs
Key features
- Compatible with 3 photovoltaic panels (1 row)
- Installation on sandwich panels / trapezoidal sheet metal
-
MiniRail K2 system – quick installation
- No long rails required

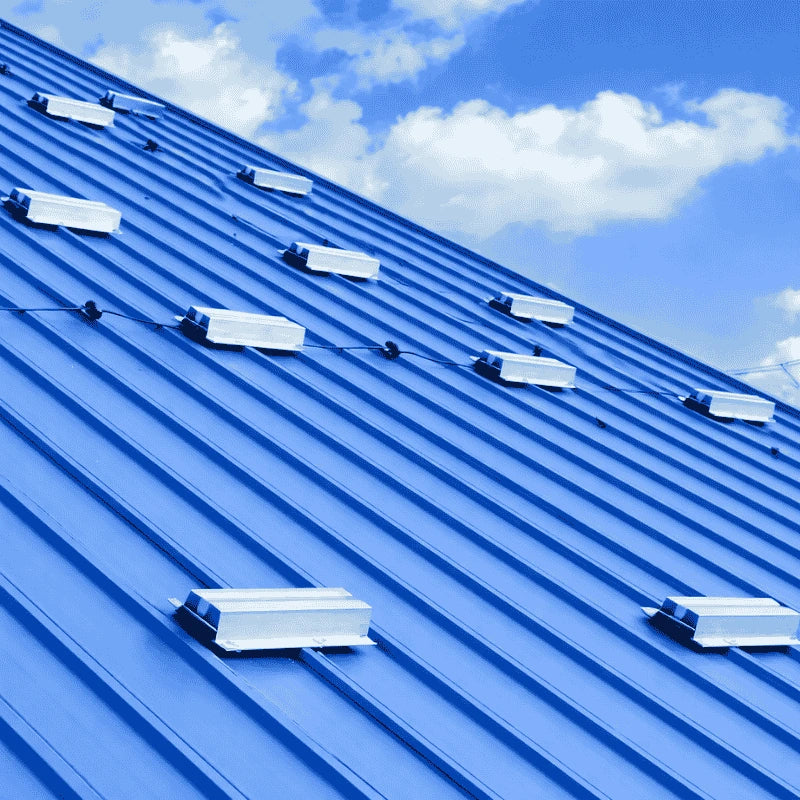

- Direct roof mounting
Benefits
✔ Much faster installation compared to traditional systems
✔ Reduced material consumption
✔ Ideal for industrial halls / buildings
✔ Secure sealing (screws with gaskets)
✔ Compact and efficient system
| General information |
| Product type |
Photovoltaic mounting structure kit |
| Number of panels |
3 panels |
| Configuration |
1 row |
| Roof type |
Sandwich panel / trapezoidal sheet metal |
| Compatibility |
| System |
MiniRail K2 Systems |
| Package contents |
| MiniRail 2004211 |
8 pcs |
| End clamp 2002514 |
4 pcs |
| Mid-section clamp 2004146 |
4 pcs |
