Description

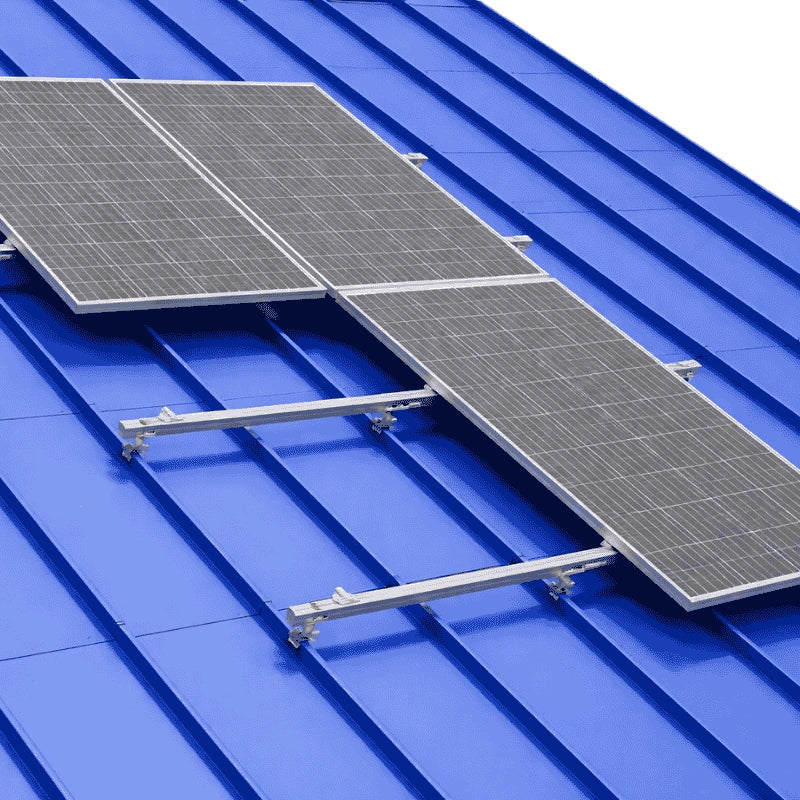

This mounting kit for 15 photovoltaic panels, arranged in a single row, is designed for installation on sandwich panel or trapezoidal sheet metal roofs using the compact MiniRail K2 system.

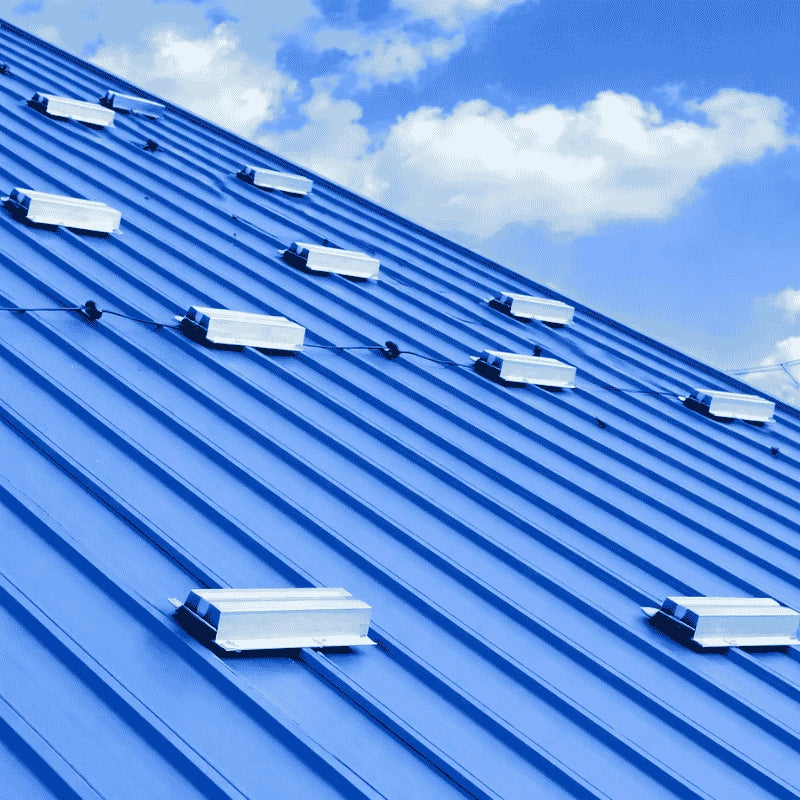

Unlike traditional systems with long rails, this kit uses mini-rails that are mounted directly onto the roof, significantly reducing installation time and costs. It is the ideal solution for industrial halls, warehouses and commercial buildings.
The structure ensures a secure and watertight fix, thanks to the direct-to-sheet fastening system, and is optimised for strength and long-term durability.
? For a 2-row installation, we recommend the following combination:
- 1 x kit of 9 panels
- 1 x kit of 6 panels
This configuration offers flexibility and optimal distribution of components.

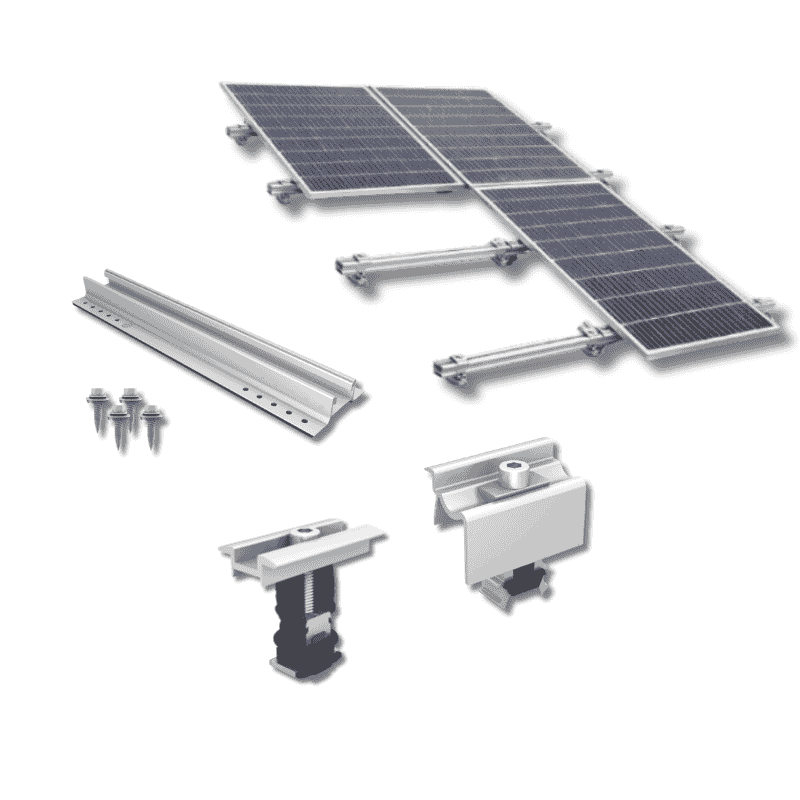

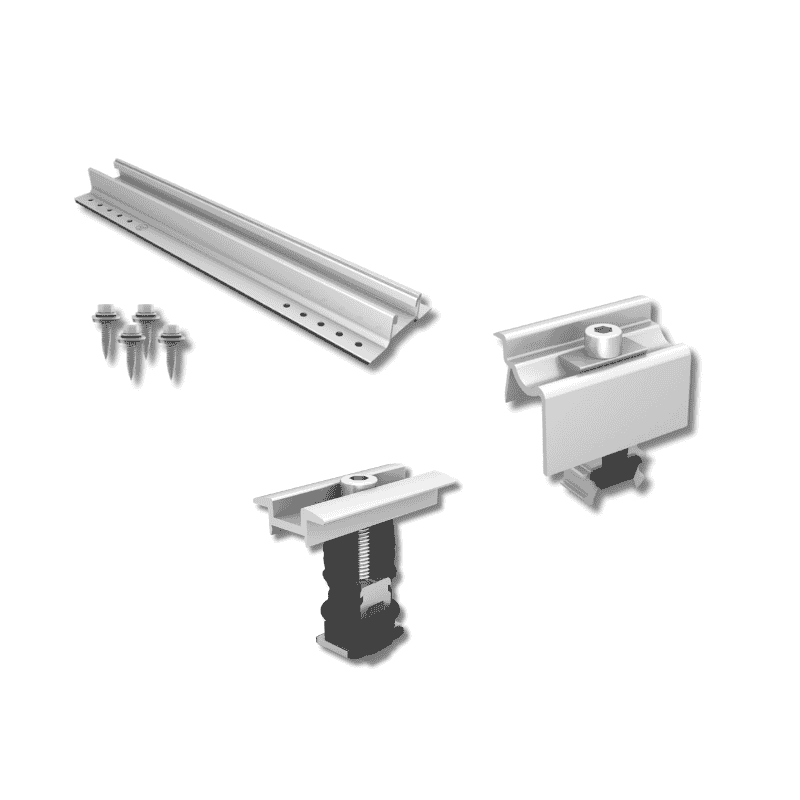

Kit contents
-
MiniRail MK2 Set (Generation 2), K2 (2004211) – 26 pcs
-
Photovoltaic panel end clamp 30–42 mm, K2 (2002514) – 4 pcs
-
Double photovoltaic panel clamp 25-40mm, K2 (2004146) – 28 pcs
Key features
- Kit for 15 photovoltaic panels
-
Single-row configuration
- Mounting on sandwich panel / trapezoidal sheet metal
-
MiniRail K2 system
- No long rails
- Quick and efficient installation
- For 2 rows: 1 x 9-panel kit + 1 x 6-panel kit
Benefits
✔ Quick and efficient installation
✔ Low installation costs
✔ Compact and easy-to-handle system
✔ Ideal for industrial applications
✔ Secure sealing and high durability
| General information |
| Product type |
Photovoltaic mounting structure kit |
| Number of panels |
15 panels |
| Configuration |
1 row |
| Roof type |
Sandwich panel / trapezoidal sheet metal |
| Compatibility |
| System |
MiniRail K2 Systems |
| Package contents |
| MiniRail 2004211 |
26 pcs |
| End clamp 2002514 |
4 pcs |
| Mid-section clamp 2004146 |
28 pcs |
| Configuration recommendation |
| For 2-row installation |
1 x 9-panel kit + 1 x 6-panel kit |
